EK-S31P4D44T1-V3

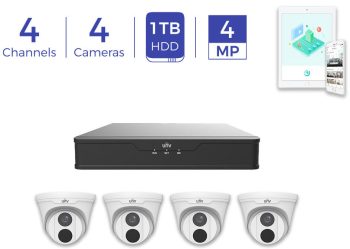

Uniview EK-S31P4D44T1-V3 4 x 4MP Turret camera, 4K NVR, 1 TB HDD Surveillance Kit
NVR301-04S3-P4 NVR
- Support Ultra 265/H.265/H.264 video formats
- 4-channel input
- Plug & Play with 4 independent PoE network interfaces
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 1-ch HDMI, 1-ch VGA
- HDMI and VGA simultaneous output
- Up to 8MP resolution recording
- 1 SATA HDD
EC-D4F28M-V3 Camera
- Day/night functionality
- Smart IR, up to 98 ft (29.87 m) IR distance
- 2D/3D DNR (Digital Noise Reduction)
- Ultra 265, H.265, H.264, MJPEG
- ROI (Region of Interest)
- ONVIF Conformance
- Wide temperature range: 30°C ~ +60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- Complies with Section 889 of the NDAA
- Description
- Product Documents
- Specifications
- Collsam Brands
- Reviews (0)
Description
The Uniview EK-S31P4D44T1-V3 is a complete 4-channel plug-and-play IP video surveillance kit built for dependable protection in residential and small business environments. It is designed for simple installation and professional-grade performance. This all-in-one system gives you the essential components needed to secure your property quickly and efficiently. For those seeking a simple solution, the EK-S31P4D44T1-V3 covers all your security needs.
At the core of the kit is the NVR301-04S3-P4 network video recorder, a 4-channel NVR with four independent PoE ports for true plug-and-play setup. It supports recording resolutions up to 8MP and features Ultra 265 video compression. This helps maximize storage efficiency while maintaining excellent image quality. The recorder also includes a pre-installed 1 TB surveillance hard drive. Therefore, you get immediate out-of-the-box recording capability with the EK-S31P4D44T1-V3 system.
The system comes with four EC-D4F28M-V3 IP security cameras, each offering 4-megapixel resolution and a wide-angle 2.8 mm fixed lens for broad coverage. These dome-style cameras use a 4MP progressive scan CMOS sensor.
In addition, they include 2D/3D digital noise reduction for clearer video in varying lighting conditions. Built for durability, they are IP67 weather-rated and IK10 vandal-resistant. This makes them well-suited for both indoor and outdoor use.
Cameras in the EK-S31P4D44T1-V3 setup are designed for reliability in any environment.
Smart video analytics add another layer of protection with advanced VCA features such as intrusion detection, cross-line detection, face detection, and Ultra Motion Detection (UMD). The included basic smart detection functions help identify suspicious activity sooner. As a result, you can support faster responses to security events. With support for Ultra 265 and H.265 video formats, the EK-S31P4D44T1-V3 system also delivers efficient bandwidth and storage management.
NDAA compliance makes the Uniview kit model EK-S31P4D44T1-V3 a strong choice for projects that require trusted security equipment and reliable performance. With easy installation, strong image quality, intelligent detection, and robust weatherproof cameras, this surveillance kit is an excellent solution. Therefore, it meets the needs of anyone seeking a complete, secure, and user-friendly video surveillance system.
Model | NVR301-04S3-P4 | ||||
| Video/Audio Input | |||||
| IP Video Input | 4-ch | ||||
| Network | |||||
| Incoming Bandwidth | 64Mbps | ||||
| Outgoing Bandwidth | 48Mbps | ||||
| Remote Users | 128 | ||||
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP | ||||
| Video/Audio Output | |||||
| HDMI/VGA Output | HDMI: 4K(3840×2160)/30Hz, 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60HzVGA: 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz | ||||
| Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||
| Audio Output | 1-ch, RCA | ||||
| Audio Compression | G.711A, G.711U | ||||
| Synchronous Playback | 4-ch | ||||
| Live view display | 1/4 | ||||
| Corridor Mode Screen | 3/4 | ||||
| Snapshot | |||||
| FTP/Schedule/Event Snapshot | 1-ch snapshot, up to D1 resolution | ||||
| Decoding | |||||
| Decoding format | Ultra 265/H.265/H.264 | ||||
| Live view/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||
| Capability | 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30 | ||||
| Hard Disk | |||||
| SATA | 1 SATA interfaces | ||||
| Capacity | Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature) | ||||
| Smart | |||||
| VCA Detection by Camera | Face Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection, Ultra Motion Detection (UMD) | ||||
| VCA Search | Face Search, Behavior Search | ||||
| General Alarm | |||||
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input | ||||
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | ||||
| External Interface | |||||
| Network Interface | 1 RJ-45 32.808 ft (10 m) / 328.084 ft (100 m) self-adaptive Ethernet Interface | ||||
| USB Interface | Rear panel: 2 x USB2.0 | ||||
| RS232 | NA | ||||
| RS485 | NA | ||||
| Alarm In | NA | ||||
| Alarm Out | NA | ||||
| PoE | |||||
| Interface | 4 RJ-45 32.8084 ft (10 m)/328.084 ft (100 m) self-adaptive Ethernet Interface | ||||
| Max Power | Max 30W for a single port, max 54W in total | ||||
| Supported Standard | IEEE 802.3at, IEEE 802.3af | ||||
| General | |||||
| Power Supply | 48V DC Power Consumption: ≤9 W (without HDD) | ||||
| Working Environment | 14°F (-10°C) ~ 131°F (55°C), Humidity ≤ 90% RH (non-condensing) | ||||

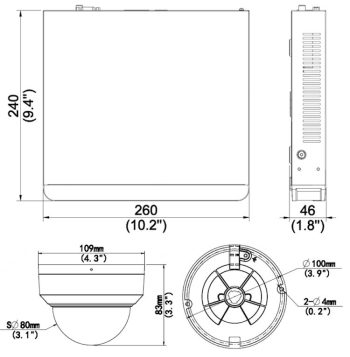

| Dimensions (W×D×H) | 10.2 inches (25.91 cm) × 9.4 inches (23.88 cm) × 1.8 inches (4.57 cm) | ||||
| Weight (without HDD) | ≤ 2.43 lb (1.1 kg). | ||||
| Certification | |||||
| Certification | CE, FCC, UL, RoHS, WEEE | ||||
| CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 | ||||
| FCC | Part 15 Subpart B, ANSI C63.4 | ||||
Model | EC-D4F28M-V3 | ||||
| Camera | |||||
| Sensor | 1/2.9”, progressive scan, 4.0 megapixel, CMOS | ||||
| Minimum Illumination | Color: 0.01 lux (F2.0, AGC ON) 0 lux with IR | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| Adjustment angle | Pan 8° to 360° | Tilt: 0° to 68° | Rotate: 10° to 360° | ||
| S/N | >52dB | ||||
| WDR | 120dB | ||||
| Lens | |||||
| Lens Type | 2.8mm @F2.0 | ||||
| Iris | Fixed | ||||
| Field of View (H) | 101.5° | ||||
| Field of View (V) | 55.6° | ||||
| Field of View (D) | 111.6° | ||||
| DORI | |||||
| DORI Distance | Lens (mm) | Detect | Observe | Recognize | Identify |
| 2.8 | 207 ft (63.09 m) | 83 ft (25.3 m) | 41.33 ft (12.6 m) | 207 ft (63.09 m) | |
| Illuminator | |||||
| IR Range | Up to 98 ft (29.87 m) | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, main profile, high profile | ||||
| Frame Rate | Main Stream: 4MP (2560×1440), Max 20 fps; 3MP (2304×1296), Max 30 fps; 1080P (1920×1080), Max 30 fps; 720P (1280×720); Max 30 fps Sub Stream: D1 (720×576), Max 30fps; 640×360; Max 30fps; 2CIF (704×288), Max 30fps; CIF (352×288); Max 30 fps; | ||||
| Video Bit Rate | 128 Kbps ~ 6144 kbps | ||||
| U-code | Support | ||||
| OSD | Up to 4 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Up to 8 areas | ||||
| Video stream | Dual streams | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Smart IR | Support | ||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||
| Dewarping | N/A | ||||
| HLC | Support | ||||
| BLC | Support | ||||
| Defog | Digital Defog | ||||
| Events | |||||
| Basic Detection | Motion detection, tampering alarm, audio detection, cross line, and Intrusion | ||||
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 128GB | ||||
| Network Storage | ANR, NAS(NFS) | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API , SDK | ||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||
| Security | Password protection, strong password, HTTPS encryption, export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
| Client | EZStation EZView EZLive | ||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above. | ||||
| Interface | |||||
| Audio I/O | N/A | ||||
| Alarm I/O | N/A | ||||
| Serial Port | N/A | ||||
| Built-in Mic | Support | ||||
| Built-in Speaker | N/A | ||||
| WIFI | N/A | ||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
| Video Output | N/A | ||||
| Certification | |||||
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part 15 B) | ||||
| Safety | CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | ||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | ||||
| Protection | IP67 Ingress Protection (IEC 60529) IK10 Vandal Resistance (IEC 62262) | ||||
| General | |||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||
| Power consumption: Max 4.0W | |||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||
| Dimensions (Ø x H) | Ø 4.3 inches (10.92 cm) x 3.3 inches (8.38 cm) | ||||
| Weight | 0.79 lb (0.36 kg) | ||||
| Material | Metal + Plastic | ||||
| Working Environment | -22°F (-30°C) ~ 140°F (60°C), Humidity: ≤95% RH (non-condensing) | ||||
| Storage Environment | -22°F (-30°C) ~ 140°F (60°C), Humidity: ≤95% RH (non-condensing) | ||||
| Surge Protection | 4KV | ||||
| Reset Button | N/A | ||||
