C-2PA

Upgrade your access control system with the Luminys C-2PA, a powerful 2-door controller with a built-in web server, 14 sub controllers, and support for 1000 users and 5000 Bluetooth cards. Never lose data with its 12VDC and PoE power options.

C-2PA

Original price was: $799.99.Current price is: $719.98.

In stock

Original price was: $799.99.Current price is: $719.98.

Luminys C-2PA 2-Door 2-Way Web Access Controller

  • Supports 2 Doors in Main Controller Mode, Expandable up to 30 Doors with Sub-Controllers
  • Manages Up to 1,000 Users in Main Controller Mode
  • Offers Multi-Verification Methods: Card, PIN, Bluetooth, Fingerprint, or Combination
  • Built-In Web Server for Configuration and Monitoring
  • Supports Anti-Pass back, Door Interlock, and Alarm Integration
Compare

Description

Introducing the Luminys Systems Corporation C-2PA 2-Door Access Controller – the ultimate solution for effortless and secure access control. With its cutting-edge technology, this access controller can handle up to 30 doors and 14 sub-controllers all by itself. This makes it the perfect choice for residential buildings, office complexes, and other commercial spaces.

The C-2PA’s integrated web server is a notable feature that enables remote access and management via a user-friendly interface. From anywhere in the globe, you can effortlessly oversee and monitor who enters and exits your property. Plus, with its sleek and compact design, the C-2PA easily blends in with any environment.

With support for up to 1000 users, the C-2PA is designed to meet the needs of numerous people. This makes it ideal for high-traffic spaces that require efficient and reliable access control. Additionally, it can store up to 300,000 records, ensuring that all access-related data is safely recorded and easily accessible. This is particularly useful for security purposes and for keeping track of visitor logs.

The C-2PA allows the use of Bluetooth cards in addition to conventional access methods like key cards and PIN codes. Users can easily get into the building using their phones, making it a more modern and seamless choice. With the ability to store up to 5000 Bluetooth cards, the C-2PA is perfect for large organizations and communities.

The C-2PA is not only user-friendly and efficient, but it is also highly reliable. Because it has a 12VDC power supply and standard PoE, it can still work even if the power goes out. That way, you can be sure that your access control system is always working, even when it’s not being used.

The Luminys C-2PA 2-Door Access Controller will keep your property safe and ensure that only authorized individuals can access it.

Datasheet

Download

Upgrade your access control system with the Luminys C-2PA, a powerful 2-door controller with a built-in web server, 14 sub controllers, and support for 1000 users and 5000 Bluetooth cards. Never lose data with its 12VDC and PoE power options Datasheet.

System
CPUDual-Core 1 GHz
RAM256 MB
ROM4 GB
Network ProtocolTCP, P2P, DDNS, DNS, UDP, IPv4
InteroperabilityCGI, ONVIF
Third-Party CompatibilitySDK, API
Status Indicator Light
  • Solid Red: Power On
  • Solid Green: Operation Normal
  • Flashing Red: Abnormal Power
  • Flashing Blue: System Updating
BuzzerBuilt-In
Functions
Verification MethodsBluetooth, Remote, Fingerprint, Password, Card, Combination
Period List128 Periods
Holiday Period128 Periods
Network UpdateSupported
Restricted/Trusted ListSupported
External Card Reader SupportSupports Up to Two (2) RS-485 or Two

(2) Wiegand Card Readers

Multi-Person UnlockSupported
First-Person UnlockSupported
InterlockSupported
Anti-PassbackSupported
Real-Time MonitoringSupported
Web ConfigurationSupported
User/Card TypeGeneral, VIP, Guest, Staff, Blacklist, Manager, Other
Storage Capacity
UserMain Control Mode: 1,000 Sub Control Mode: 10,000
Fingerprint3,000
CardMain Control Mode: 5,000 Sub Control Mode: 50,000
Records300,000
Bluetooth Card5,000
Interface
RS-485Three (3) Channels
WiegandTwo (2) Input Channels
NetworkOne (1) × RJ-45 10/100 Mbps Ethernet Port
Exit ButtonTwo (2)
Door SensorTwo (2)
Lock ControlTwo (2)
Alarm
InterfaceInput: Two (2) Channels Output: Two (2) Channels
Alarm LinkageSupported
EventTamper, Duress, Door Sensor Timeout,

Intrusion, Card Usage Threshold

Exceeded, Duress Fingerprint

Electrical
Power Supply12 VDC or PoE (IEEE 802.3at Type 2, Class 4)
Power ConsumptionStandby (No External Devices): ≤ 2 W Working:

• Total Power Budget (DC): 1700 mA at 12 V for External Devices

• Total Power Budget (PoE): 1200 mA at 12 V for External Devices

Construction
Net Weight1.6 lb (0.73 kg)
Gross Weight2.2 lb (1.0 kg)

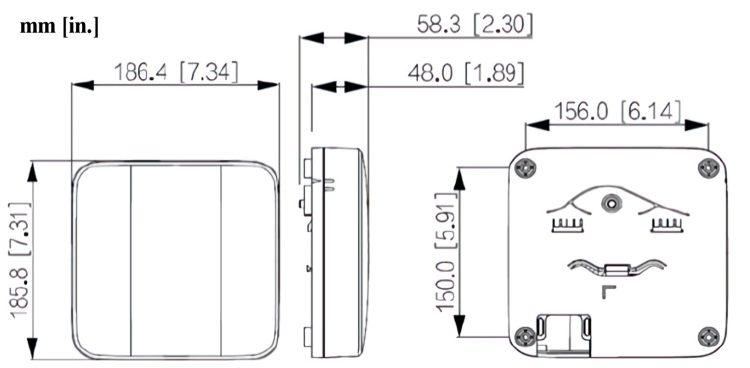

Product Dimensions (L × W × H)7.3 inches (18.54 cm) × 7.3 inch (18.54 cm) × 2.3 inch (5.84 cm)
Package Dimensions (L × W × H)10.0 inches (25.4 cm) × 9.6 inch (24.38 cm) × 3.4 inch (8.64 cm)
Operating Temperature14 °F (-10 °C) to 131 °F (55 °C)  5% to 95% (RH), Non-Condensing
Protection RatingsIK06
MaterialPC and ABS
Installation MethodGuide to Rail Mount, Surface Mount

Additional information

Weight3 lbs
Dimensions11 × 10 × 4 in
