RD1CW

Enhance your security and access control systems with the Luminys RD1CW Waterproof Access Reader. Designed for MIFARE (IC) cards, it offers robust features and IP66 protection for indoor and outdoor use. Versatile with RS-485 and Wiegand protocols, plus an anti-tampering alarm for added security. Easy surface-mount installation.

RD1CW

Original price was: $149.99.Current price is: $104.95.

In stock
0 out of 5

Original price was: $149.99.Current price is: $104.95.

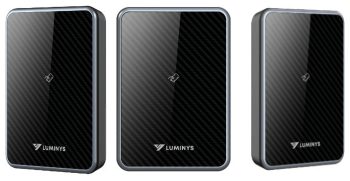

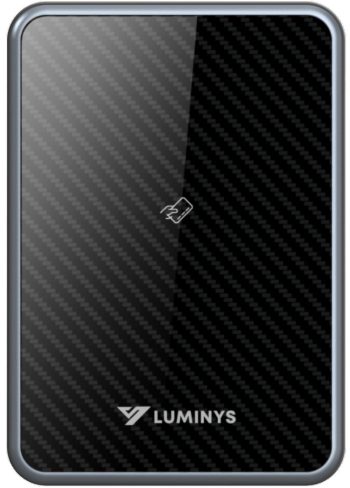

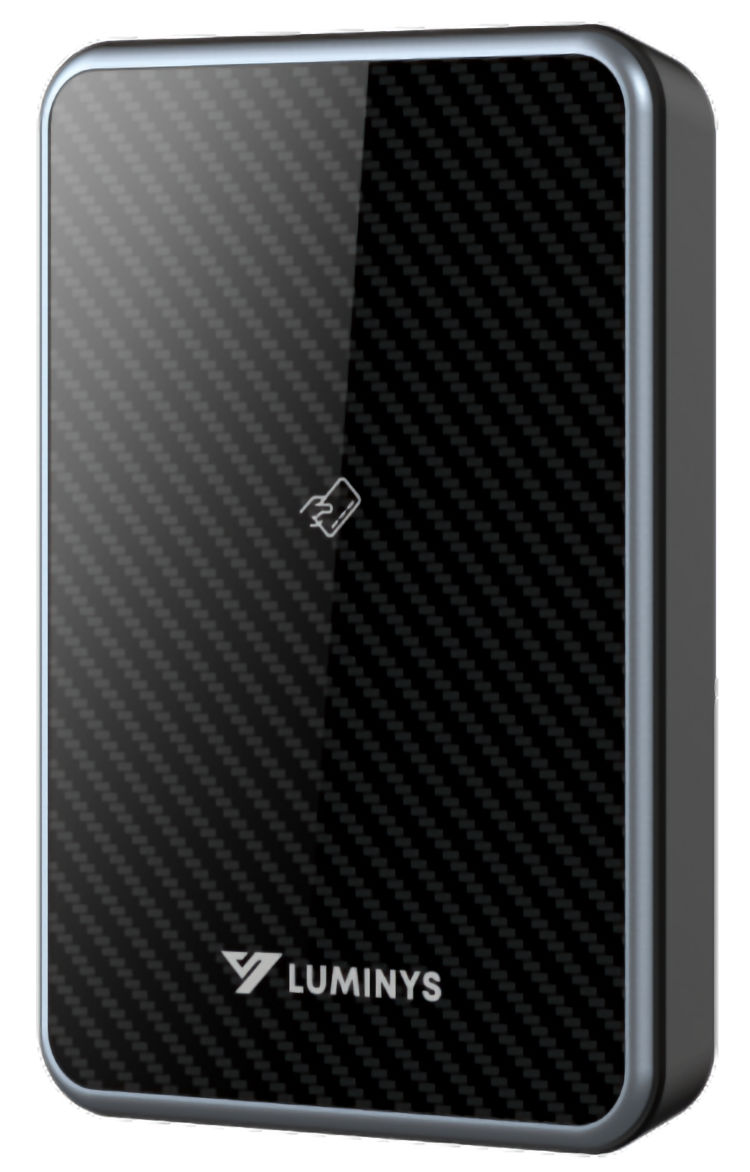

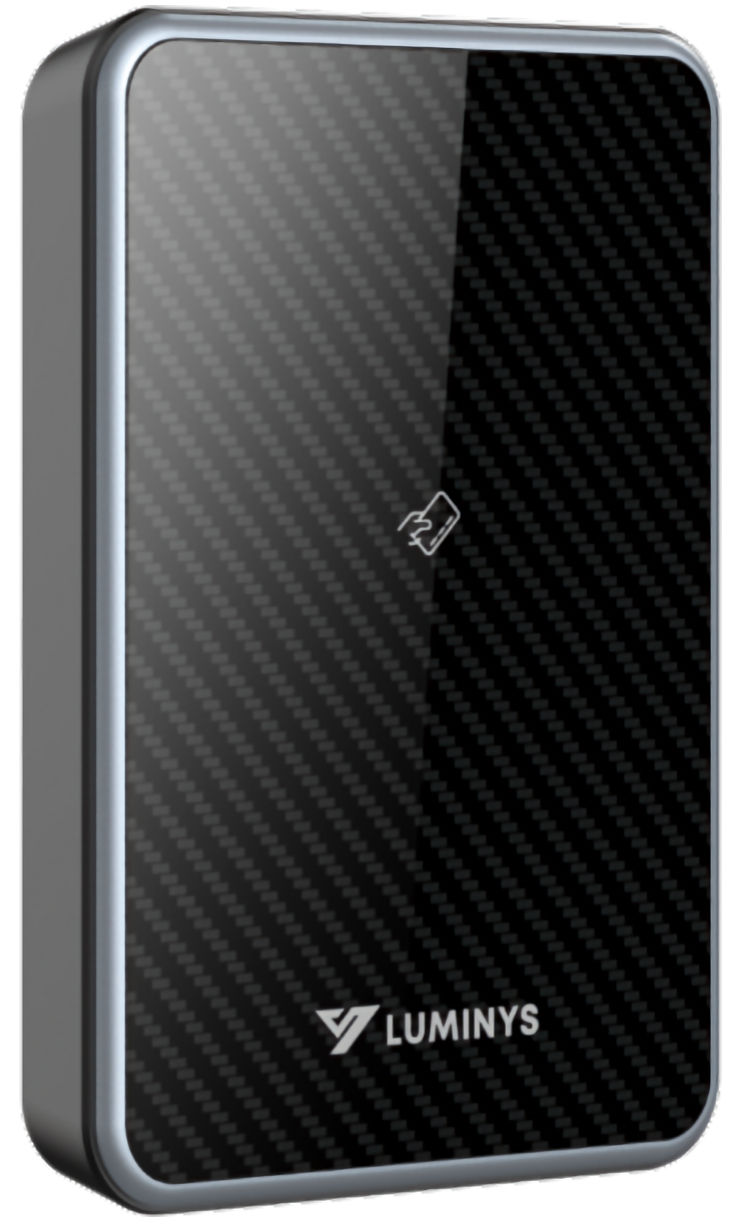

Luminys RD1CW Waterproof Access Reader

  • Read and Issues MIFARE (IC) Cards
  • Buzzer and Indicator Light
  • IP66 Protection For Indoor and Outdoor Use
  • Supports MIFARE (IC) Card
  • Supports RS-485 and Wiegand Communication Protocols
  • Equipped with Anti-Tampering Alarm
  • Surface Mount Design
  • NDAA Compliant

Description

The Luminys RD1CW Waterproof Access Reader is the perfect solution for your security and access control needs. This advanced reader offers robust features for secure access management. It is designed to work seamlessly with MIFARE (IC) cards. Whether you need to control access to a building, a room, or a specific area, this reader is the ideal choice.

One of the standout features of the Luminys RD1CW reader is its IP66 ingress protection rating. This means that it is not only suitable for use indoors but also outdoors. It is a versatile choice for a wide range of applications. You can install this reader in any environment, without worrying about damage from exposure to water or dust.

In addition to its durable design, the Luminys RD1CW reader is also equipped to handle both RS-485 and Wiegand communication protocols. This ensures that it can easily integrate with various access control systems. Thus, it is a convenient and versatile choice for any organization. You can easily connect this reader with your existing system. Alternatively, use it as a standalone reader for smaller applications.

Security is a top priority when it comes to access control, and the Luminys RD1CW reader does not disappoint. It comes equipped with an anti-tampering alarm, which provides an added layer of protection against unauthorized tampering. This ensures that your system remains secure and prevents any potential breaches.

The surface-mount design of the Luminys RD1CW reader makes it easy to install in any location. Simply mount it on a flat surface and connect it to your system using the included cables. With its compact design and simple installation process, this reader is a convenient option for any organization looking to enhance their security and access control systems.

Datasheet

Download

Enhance your security and access control systems with the Luminys RD1CW Waterproof Access Reader. Designed for MIFARE (IC) cards, it offers robust features and IP66 protection for indoor and outdoor use. Versatile with RS-485 and Wiegand protocols, plus an anti-tampering alarm for added security. Easy surface-mount installation Datasheet.

Card Reading Functions
Card TypeIC (MIFARE)
Frequency Range13.56 MHz
Maximum Transmission Power42 dBm at 10 m
Verification MethodCard
Response Time0.1 s
Card Reading Distance0 inches (0.0 cm) to 2.0 inches (5.08 cm)
Interface
RS-485One (1) Channel
WiegandOne (1) Output Channel
Alarm
EventTamper
Electrical
Power Supply12 VDC, 0.5 A
Power Consumption• Standby: ≤ 0.9 W• Working: ≤ 1.7 W
Construction
Net Weight0.2 kg (0.44 lb)
Gross Weight0.4 kg (0.88 lb)

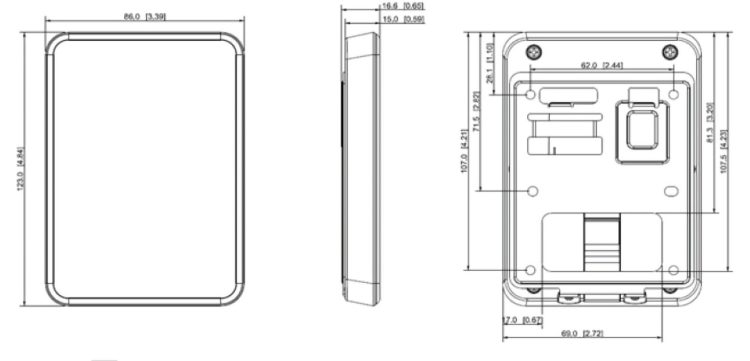

Product Dimensions (L × W × H)5.3 inches (13.46 cm)× 1.6 inches (4.06 cm) × 0.6 inches (1.52 cm)
Package Dimensions (L × W × H)Inner Carton: 7.3 inches (18.54 cm) × 6.4 inches (16.26 cm) × 2.8 inches (7.11 cm)

Outer Carton: 22.8 inches (0.58 m) × 15.1 inches (38.35 cm) × 13.7 inches (34.8 cm)

Operating Temperature-22 °F (-30 °C) to 158 °F (70 °C) 5% to 95% (RH), Non-Condensing
Protection RatingsIP66
MaterialPC and Acrylic
Installation Method86 Case Mount, Surface Mount
Certifications and Compliance
ComplianceNDAA, FCC/FCC ID, IC/IC ID
