DS-2TD1228T-3/QA

DS-2TD1228T-3/QA Bi-spectrum Thermography Network Turret Camera

DS-2TD1228T-3/QA

Original price was: $1,280.00.Current price is: $1,024.00.

In stock
0 out of 5

Original price was: $1,280.00.Current price is: $1,024.00.

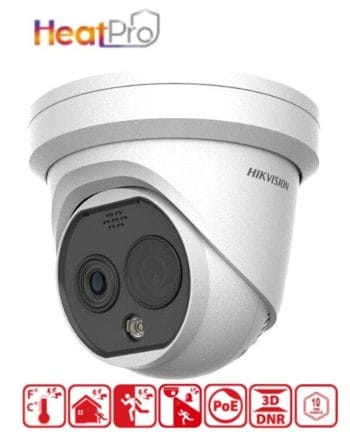

DS-2TD1228T-3/QA Bi-spectrum Thermography Network Turret Camera

Hikvision DS-2TD1228T-3/QA Bi-spectrum Thermography Network Turret Camera can be applied to warehouses, construction sites, waste incineration plants, manufacturing workshops, etc.
The accurate temperature measurement device sends temperature exception alarms for loss prevention.
  • 256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25 °C, F1.0)
  • Video content analysis: vehicle/human classification
  • Temperature exception alarm for fire prevention, -4 °F (-20 °C) to 1,022 °F (550 °C)), Max. (± 2 °C, ± 2%)
  • Smoking detection Algorithm
  • Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
  • High quality detector with 10 years guarantee

Compare

Description

Hikvision DS-2TD1228T-3/QA Bi-Spectrum Thermography Turret Camera (2.1 mm Lens)

Hikvision DS-2TD1228T-3/QA Bi-spectrum Thermography Network Turret Camera can be applied to warehouses, construction sites, waste incineration plants, manufacturing workshops, etc.
The accurate temperature measurement device sends temperature exception alarms for loss prevention.
Hikvision DS-2TD1228T-3/QA Thermal and Optical Bullet Cameras are equipped with highly sensitive thermal and optical sensors and a graphical processing unit to run the video content analysis (VCA) algorithms developed by Hikvision’s deep learning technology.

DRI Range Table

* The table is only for reference and the performance may vary according to different environment.

* The optimal detection, recognition, and identification distances are calculated according to Johnson’s Criteria.

Detection Range: In order to distinguish an object from the background, the object must be covered by 1.5 or more pixels.

Recognition Range: In order to classify the object (animal, human, vehicle, etc.), the object must be covered by 6 or more pixels.

Detection Range (Vehicles: 1.4 ×
4.0 m)
Detection Range (Humans: 1.8 ×
0.5 m)
Recognition Range (Vehicles:
1.4 × 4.0 m)
Recognition Range (Humans:
1.8 × 0.5 m)
Identification Range (Vehicles:
1.4 × 4.0 m)
Identification Range (Humans:
1.8 × 0.5 m)
460 m (1,509.19 ft.)150 m (492.13 ft.)112 m (367.45 ft.)38 m (124.67 ft.)56 m (183.73 ft.)19 m (62.34 ft.)
  • Video content analysis: vehicle/human classification
  • Temperature exception alarm for fire prevention, -4 °F (-20 °C) to 1,022 °F (550 °C)), Max. (± 2 °C, ± 2%)
  • Smoking detection Algorithm
  • Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
  • High quality detector with 10 years guarantee
  • 3.6 mm Thermal Lens Options
  • PoE (802.3af), 12 VDC, Maximum 6.5. W

Datasheet

Download

DS-2TD1228T-3/QA Bi-spectrum Thermography Network Turret Camera Datasheet

Quick Start Guide

Download

DS-2TD1228T-3/QA Bi-spectrum Thermography Network Turret Camera Quick Start Guide

User's Manual

Download

DS-2TD1228T-3/QA Bi-spectrum Thermography Network Turret Camera User Manual

Additional information

Weight2.07 lbs
Dimensions5.54 × 5.45 × 4.85 in
