SBP-303HF
Original price was: $280.00.$187.95Current price is: $187.95.
Hanwha Vision SBP-303HF Built-in SFP Installation Base for PTZ Cameras
- Fiber mounting base for compatible PTZ cameras
- LC-type SFP interface
- 100/1000 Mbps fiber connection
- 24V AC power input
- IP66 and IK10-rated aluminum housing
- NDAA-compliant
- Description
- Product Documents
- Specification
- Additional information
- Collsam Brands
- Reviews (0)
Description

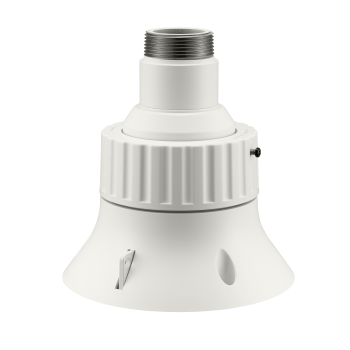

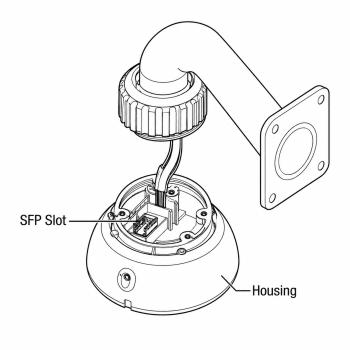

The Hanwha SBP-303HF SFP base combines a PTZ camera mounting interface with a fiber network connection. Its aluminum housing provides a compact way to bring fiber cabling to supported cameras. Furthermore, the built-in SFP slot accepts a suitable optical module for the planned link. This accessory is not a camera.
The SBP-303HF SFP base supports LC-type SFP connections. Its fiber interface supports 100 Mbps or 1000 Mbps, with 1000 Mbps as the default. Meanwhile, the camera-side Ethernet interface operates at 100 Mbps. The external switch selects the fiber speed. Choose the optical module to match your cable and network equipment.
Hanwha lists support for XNP-6550RH, XNP-6371RH, XNP-6320H, QNP-6230H and QNP-6230RH cameras. However, confirm the full mounting arrangement before ordering. The mount screw size is PF one and a half inches. In addition, the included coupling supports the NPT mounting arrangement described in the installation guide.
The SBP-303HF SFP base uses 24V AC power. Hanwha specifies a maximum consumption of 92W with the heater on. Moreover, the housing carries IP66 and IK10 ratings. Its stated operating range extends from minus 50 to plus 55 degrees Celsius. Follow the manufacturer’s sealing instructions to protect the cable entry.

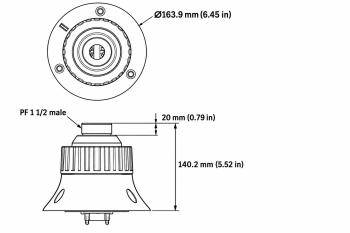

The base measures 163.9 mm across and weighs 1.1 kg without the NPT coupling. With that coupling, its height increases to 187.9 mm and weight to 1.4 kg. Furthermore, the Specification tab separates these measurements from the housing dimensions shown in the drawing. Review both when planning for clearance.
Finally, review the SBP-303HF SFP base datasheet in Product Documents. Audio input and output use 3.5 mm connections. Note that fiber removal does not trigger the camera’s network disconnection alarm through this accessory. Contact Collsam Security for help confirming the right installation parts. Verify site conditions before final installation.
| Manufacturer | Hanwha Vision |
|---|---|
| Model / MPN | SBP-303HF |
| Product type | Built-in SFP install base for PTZ cameras |
| Material | Aluminum |
| SFP port | LC type |
| Fiber Ethernet | 100 Mbps / 1000 Mbps; default 1000 Mbps; external speed switch |
| Camera-side Ethernet | 100 Mbps, 100 Base-T |
| Standards | IEEE 802.3u and IEEE 802.3z |
| Audio | 3.5 mm input and output |
| Power input | 24V AC |
| Maximum power consumption | 4.1A, 92W with heater on |
| Environmental ratings | IP66, IK10 |
| Operating temperature / humidity | –58°F (-50°C) to +131°F (+55°C); less than 90% RH |
| Dimensions without NPT coupling | Ø 6.45 inches (ca. 16 cm) × 6.22 inches (ca. 16 cm) |
| Dimensions with NPT coupling | Ø 6.45 inches (ca. 16 cm) × 7.40 inches (ca. 19 cm) |
| Weight | 1.1 kg without NPT coupling; 1.4 kg with NPT coupling |
| CAD housing dimensions | Ø 6.45 inches (ca. 16 cm); housing height 140.2 mm excluding the projecting lower connector; threaded neck 20 mm. |
| Mount screw size | PF 1 1/2-inch male |
| Supported cameras | XNP-6550RH, XNP-6371RH, XNP-6320H, QNP-6230H, QNP-6230RH |
| Optical module selection | Transmission mode and optical characteristics depend on the selected SFP module. Confirm the module and fiber match the installation. |
| Important limitation | Does not support the camera network disconnection alarm when the fiber optic cable is disconnected. |
| Compliance | NDAA compliant |
Additional information
| Weight | 5 lbs |
|---|---|
| Dimensions | 10 × 9 × 9 in |
