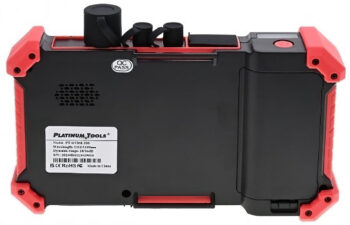

Platinum Tools PT-OTDR-100 Mini OTDR/Copper Tester (1310/1550nm), Inlcudes RJ45 Remote, Charger, Case and Adapters
- est, measure and troubleshoot twisted pair and fiber optic cables and connectors
- Fiber tests include OTDR cable length measurement and measurement to fault, 10mW visual fault location, optical power metering and optical light source measurement
- Twisted pair tests include continuity, loss, wiremap, IP and TDR cable length measurement
- Save and export reports
- Built-in high-intensity flashlight
- Description
- Product Documents
- Specifications
- OTDR Technical Specifications
- Additional information
- Collsam Brands
- Reviews (0)
Description
The Platinum Tools PT-OTDR-100 is a powerful and compact handheld tool designed specifically for field technicians and network engineers. It combines the functionality of a Mini Optical Time Domain Reflectometer (OTDR) and a copper cable tester. As a result, it is a versatile and essential device for troubleshooting both single-mode fiber optic infrastructures and twisted-pair copper cabling.
With dual wavelengths of 1310 nm and 1550 nm, the PT-OTDR-100 offers a 28/26 dB dynamic range. This allows it to analyze fiber links ranging from 3 meters up to an impressive 105 kilometers. Because of this, it is suitable for use in a wide range of environments, from small office networks to large telecommunications infrastructures.
One of the most impressive features of the PT-OTDR-100 is its ability to detect localized reflections with exceptional accuracy. With an event blind zone of ≤1.6m and an attenuation blind zone of ≤8m, it can pinpoint any faults or issues in the network with utmost precision. This is essential for ensuring the smooth and efficient operation of any network.
In addition to its OTDR capabilities, the PT-OTDR-100 also includes a built-in 10mW Visual Fault Locator (VFL), an Optical Power Meter (OPM), and a Stabilized Laser Source (LS). These tools are essential for identifying and troubleshooting issues in both fiber optic and copper cabling.

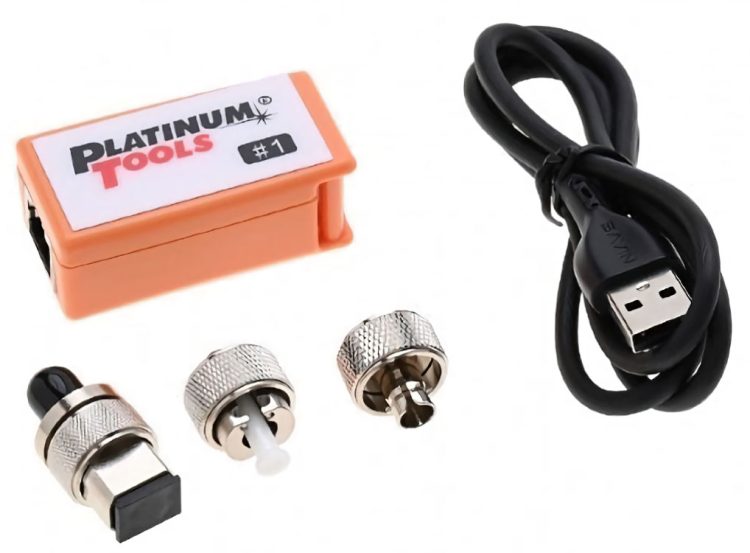

Furthermore, the device also measures twisted-pair cable length and can pinpoint distances to faults such as opens or shorts. It can also perform data network port continuity and UTP validation using the included RJ45 remote indicator.

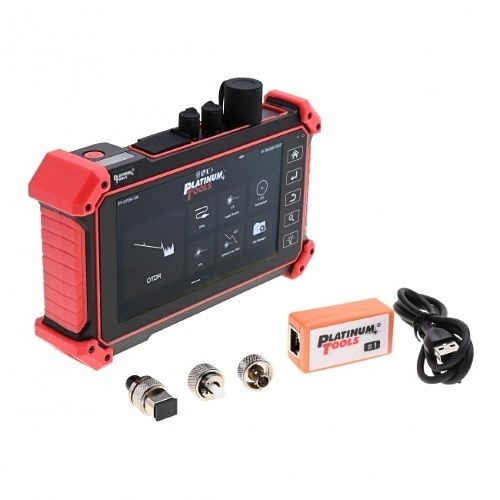

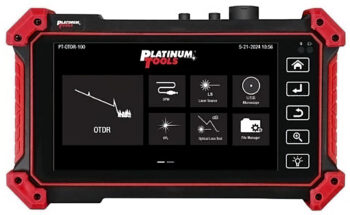

The PT-OTDR-100 is controlled via a 5.55 inch (14.1 cm) OLED touchscreen with a crisp 1280×720 resolution. This user-friendly interface allows technicians to easily navigate and access all the device’s features. In addition, the device also automatically generates an Event Map for quick troubleshooting curves. Tests can be saved and exported directly as PDF or SOR files, making it easy to share and analyze data.
Equipped with a rechargeable 3.7V 4000mA lithium-ion battery, the PT-OTDR-100 delivers approximately 5 to 6 hours of continuous runtime. This ensures that technicians can complete their tasks without the worry of battery life running out. Overall, the Platinum Tools PT-OTDR-100 is an essential tool for any field technician or network engineer. It provides accurate and reliable testing and troubleshooting capabilities in a compact and user-friendly package.

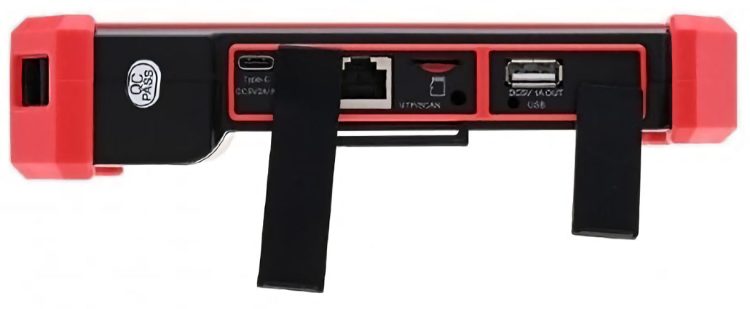

| Size & Display | 5.55 inch (14.1 cm) OLED screen display, 1280×720 |
| Network Port | 10/100/1000M auto adapt (optional) |
| Max Testing Length | Twisted pair TDR: 600m / 1668ft (0.51 kilometers), Fiber OTDR: 105km / 65 miles (104.61 km) |
| Network test | IP Scan, PPPOE, port flashing, Ping test (optional) |
| Linearity (dB/dB) | ±0.05 dB/ dB |
| Wavelength (nm) | 1310/1550 |
| Dynamic range(dB)2 | 28/26 |
| Pulse width (ns) | 5, 10, 20, 30, 50, 80, 160, 300, 500, 800, 1000, 2000, 4000, 6000, 10000, 20000 |
| Testing range | ≤105 Km |
| Event blind zone (m)3 | ≤1.6m |
| Attenuation blind zone (m)3 | ≤8m |
| Linearity (dB/dB) | ±0.05 dB/ dB |
| Loss threshold (dB) | 0.05 |
| Loss resolution ratio (dB) | 0.01 |
| Minimum distance resolution | 0.05 |
| Sampling point (K) | 32-128 |
| Distance uncertainty (m) | ±(1 m + 5×10-5× distance + sampling interval) |
| Distance scope (km) | 0.5, 1, 2, 5, 10, 25, 50, 100, 200 |
| Typical real-time refreshing duration | 1s |
| File format | SOR standard format/PDF/EXCEL |
| Measurement duration | 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable |
| Storage | FLASH (EMMC)8G + TF card |
| Interface type | SC-UPC |
| POWER | |
| External power supply | Type-c 5V (2A) |
| Battery | Built-in 3.7V 4000mA Li-ion Battery |
| Rechargeable | After charging 3.5 hours, normal working time 5 hours |
| Auto off | 5-30 (mins) |
| WORKING ENVIRONMENT | |
| Working Temperature | 14ºF (-10ºC ) ~ 122ºF (50ºC ) |
| Working Humidity | 30%-90% |
| Dimension | 7.20 inches (18.29 cm) x 4.33 inches (11 cm) x 1.43 inches (3.63 cm) |
| Weight | 1 lb (0.45 kg) |
| Wavelength (nm) | 1310/1550 |
| Dynamic range(dB)2 | 28/26 |
| Pulse width (ns) | 5, 10, 20, 30, 50, 80, 160, 300, 500, 800, 1000, 2000, 4000, 6000, 10000, 20000 |
| Testing range | ≤105 Km |
| Event blind zone (m)3 | ≤1.6m |
| Attenuation blind zone (m)3 | ≤8m |
| Linearity (dB/dB) | ±0.05 dB/ dB |
| Loss threshold (dB) | 0.05 |
| Loss resolution ratio (dB) | 0.01 |
| Minimum distance resolution | 0.05 |
| Sampling point (K) | 32-128 |
| Distance uncertainty (m) | ±(1 m + 5×10-5× distance + sampling interval) |
| Distance scope (km) | 0.5, 1, 2, 5, 10, 25, 50, 100, 200 |
| Typical real-time refreshing duration | 1s |
| File format | SOR standard format/PDF/ EXCEL |
| Measurement duration | 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable |
| Storage | FLASH (EMMC)8G + TF card |
| Interface type | SC-UPC |
