LD-M9500

Efficiently install and maintain surveillance systems with the LD-M9500 CCTV camera tester. Supports multiple formats and high-resolution Supported Test Technologies.

LD-M9500

Original price was: $732.99.Current price is: $458.95.

In stock
0 out of 5

Original price was: $732.99.Current price is: $458.95.

LD-M9500 IP CCTV Camera Tester with PoE 4K H.265 CVI TVI AHD Analog 5.4 inch (13.72 cm) Touchscreen

  • 3-month warranty on battery. Charge battery frequently to maximize battery performance and cycles.
  • 5.4 inch (13.72 cm) IPS touch screen, 1920×1152 resolutions
  • H.265 and H .264 IP, 4K video display via mainstream
  • 8MP TVI test, 3840 × 2160P 12.5/15 FPS, 4xzoom, video record and playback, coaxial PTZ control and call OSD menu
  • 8MP AHD test, 3840 x2160P 15 FPS, 4xzoom, video record and playback, coaxial PTZ and call OSD menu
  • 8MP CVI test, 3840 × 2160P 12.5/15FPS, 4xzoom, video record and playback, coaxial PTZ and call OSD menu
  • 8MP EX-SDI test, 3840 × 2160P 25/30FPS,4xzoom, video record and playback, coaxial PTZ and call OSD menu
  • HD-SDI test, 1920 × 1080P 25/30/50/60 FPS, 4xzoom, video record and playback, coaxial PTZ and call OSD menu
  • 3G-SDI test, 1920 × 1080P 50/60 FPS, 4xzoom, video record and playback, coaxial PTZ and call OSD menu
  • Auto HD app, auto-recognize HD coax camera type and resolution, supports snapshot, video record and playback, coaxial PTZ and call
Collsam Security professional security solutions brand logo
SKU: LD-M9500 Categories: , Tags: , , ,

Description

Introducing the LD-M9500, the ultimate CCTV camera tester for all your installation and maintenance needs. Designed to cater to various surveillance camera systems, this tester is a must-have tool for any CCTV technician or installer. It supports IP, AHD, TVI, CVI, and analog (CVBS) cameras, making it a versatile and efficient option.

The LD-M9500 features a high-resolution 5.4-inch (13.72 cm) IPS touch screen with a 1920 × 1152 resolution. It also handles H.265 & H.264 IP, 4K video display, making it compatible with the latest camera technology in the market. With support for 8MP TVI tests, you can make sure that your cameras are working at their best.

The LD-M9500 has features like 4x zoom, video recording and playback, coaxial PTZ control, and OSD menu access. The technician can use these features to check the camera’s functions and connections to make sure the installation goes well.

In addition to setting up the system, the LD-M9500 is also a useful troubleshooting tool. It helps technicians address problems with video feeds, PTZ controls, and other camera functions. It is also possible to use the tester to make sure that all cameras are working correctly and performing well.

The LD-M9500 user manual would be available from the manufacturer or vendor of the device. The LD-M9500 is a valuable tool for any professional working with CCTV cameras. Make your installation and maintenance processes smoother and more efficient with the LD-M9500 CCTV camera tester.

Datasheet

Download

Efficiently install and maintain surveillance systems with the LD-M9500 CCTV camera tester. Supports multiple formats and high-resolution display Datasheet.

LCD
DisplayNew 5.4 inch (13.72 cm) IPS touch screen, 1920 × 1152 resolution
Video Mode
CVBS1 channel BNC input, NTSC/PAL (Auto adapt)
CVBSPTZ control, RS485 control, Baud 600 ~ 115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc
IP camera test 4k/H.265/H.264
IP camera testIP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK
Rapid VideoAuto-view the video, create testing report
HIK test toolsupport batch activate HIKVISION cameras and modifying IP address, modifying password etc. Self-defined modify channel name, can quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc.
DH test toolSupport batch activate DAHUA cameras and modify IP address, username, and password. Self-defined modify channel name.

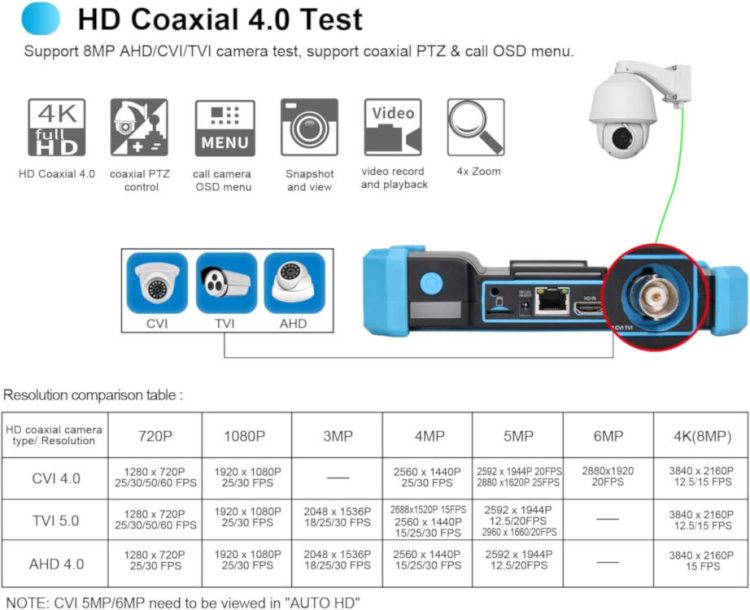

HD Coaxial test
HD Coaxial8MP TVI camera test, 3840 × 2160P 12.5/15 FPS, UTC control/ call OSD menu
8MP CVI camera test, 3840 × 2160P 12.5/15 FPS, UTC control / call OSD menu
8MP AHD test, 3840 × 2160P 15FPS, UTC control / call OSD menu
EX-SDI2.0, HD-SDI, 3G-SDI, UTC control / call OSD menu
Auto HD app, auto-recognize HD coax camera type and resolution, supports snapshot, video record and playback, coaxial PTZ & call OSD menu

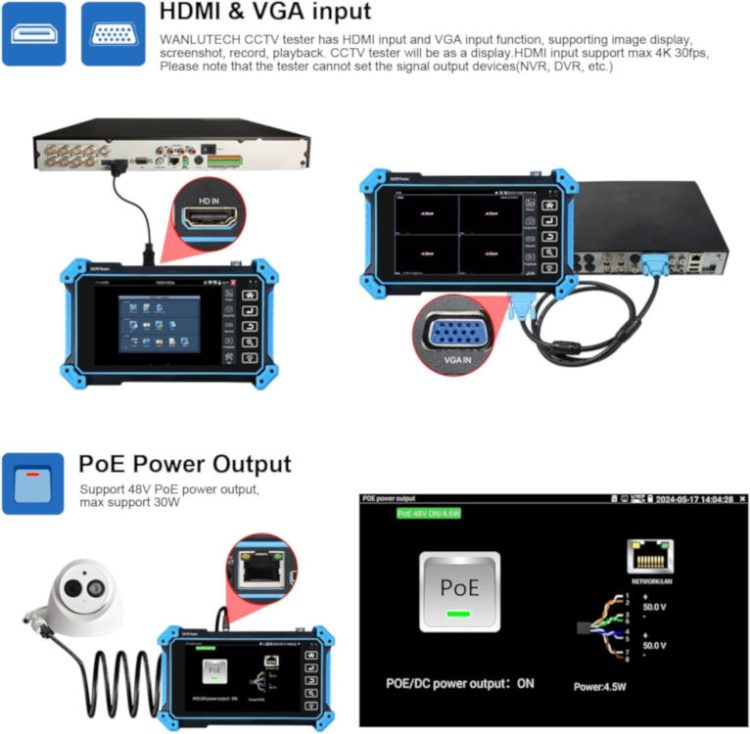

HDMI input1 channel HDMI input, supports 4K 30FPS. The resolution as follows: 4K_3840 × 2160/2K_2560 × 1440P/ 1920 × 1080P /1920 × 1080i /720 × 480P /720 × 576P /1280 × 720P/1024 × 768P/1280 × 1024P /1280 × 900P /1440 × 900P, etc.
VGA input1 channel VGA input, supports 1920 × 1200P 60FPS. The resolution as follows: 1920 × 1200P 60FPS/ 1920 × 1080P 60FPS /1792 × 1344P 60FPS /1680 × 1050P 60FPS/(1600 × 1200P/900P 60FPS)/1440 × 900P 60FPS/1360 × 768P 60FPS/(1280 × 1024/960/800/768/720P 60FPS)/1152 × 870P 60FPS/1024 × 768P60FPS/800 × 600P 60FPS/600 × 480P 60FPS.
Zoom Image4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back
Power output
DCOutput DC12V/3A power out, supply temporarily power for the camera
PoE48V PoE power output, max power 25.5W
Cable test
UTP cable testTest UTP cable connection status and display on the screen. Can detect the near-end, mid-end and far-end fault point of RJ45 cable plug.
RJ45 TDR cable testTest cable pair status, length, attenuation, reflectivity, impedance, skew, can create test report. Measurement range 180M.
Others
Tester Playscreen projection: Tester, mobile phone and PC display at the same time (For android version mobile phone)
Network testTrace route, Link monitor, DHCP server, port flashing, Ping test
Wi-FiBuilt in Wi-Fi, speeds 150M, display wireless camera image
Audio test1 channel audio signal input, test whether sounds normal.
Power managementDisplay DC 12V input & output voltage and power in real time
Data monitorCaptures and analyzes the command data from controlling device, also can send hexadecimal
External power supplyDC 12V 1A
BatteryBuilt-in 7.4V Li-ion battery, 3350mAh
RechargeableAfter charging 3 ~ 4 hours, normal working time 6 hours
Operation settingOSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish, Portuguese, Czech etc
Auto off1 ~ 30 (mins)
Working Temperature14.00 °F (-10 °C) ~ 122.00 °F (50 °C)
Working Humidity30% ~ 90%

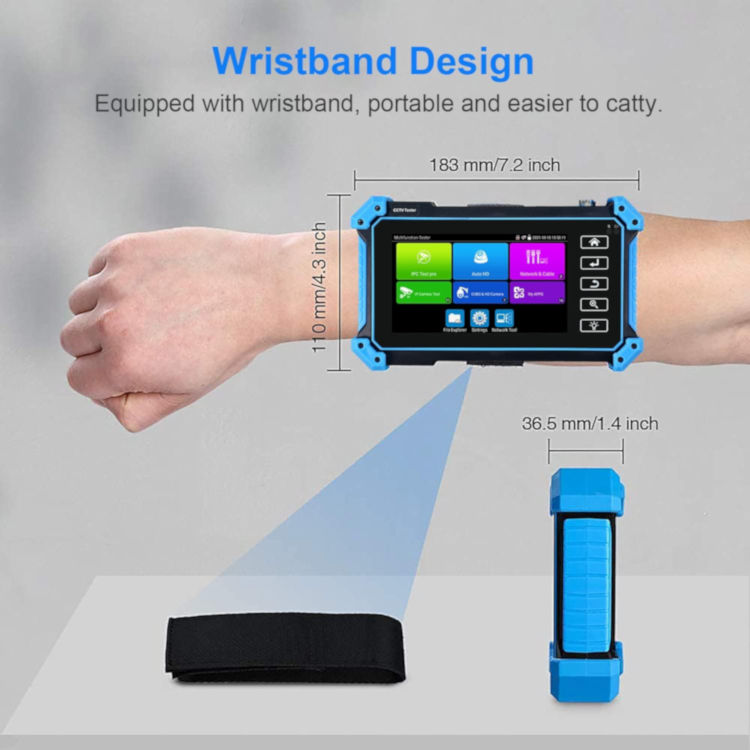

Dimension7.2047 inches (18.3 cm) × 4.3307 inch (11 cm) × 5.374 inch (13.65 cm)
Weight

Additional information

Weight2 lbs
Dimensions9 × 6 × 3 in
