RD1BN
Original price was: $179.99.$129.95Current price is: $129.95.
Luminys RD1BN Bluetooth Access Reader
- Mullion Mount Housing with Indicator Light and Buzzer
- IP66 Protection for Indoor and Outdoor Use
- Supports Bluetooth and Card (IC Card) Verification Methods
- Supports RS-485, Wiegand, and Bluetooth Communication Protocols
- Equipped with Anti-Tampering Alarm
- Surface Mount Design
- Description
- Attachment
- Speciifications
- Additional information
Description
Introducing the Luminys RD1BN Bluetooth and Card Access Reader, the ultimate security and access control device. This cutting-edge product, designed to provide secure access solutions, is a crucial part of any residential or commercial building. With its advanced features and durable design, the Luminys RD1BN is the perfect choice for both indoor and outdoor installations.
The Luminys RD1BN is a part of our renowned access control product range, known for its flexibility and security measures. This reader supports both Bluetooth and Mifare (IC) card verification methods. This ensures a convenient and reliable unlocking process. With its user-friendly interface, users can easily access a building or room with just a tap of their smartphone or by using their Mifare (IC) card.
One of the most impressive features of the Luminys RD1BN is its IP66 ingress protection. This rating guarantees the device’s total protection from water and dust. Thus, making it suitable for both indoor and outdoor installations. This robust protection makes the device ideal for high-traffic areas, providing peace of mind to building owners and managers.
For seamless integration into various systems, the Luminys RD1BN supports multiple communication protocols, including RS-485, Wiegand, and Bluetooth. This allows businesses to easily integrate the device into their existing security system, without any additional hassle or cost. Moreover, the device is equipped with an anti-tampering alarm. This ensures that any unauthorized attempts to alter or access the device are immediately detected and reported.
The Luminys RD1BN also includes an indicator light and a buzzer for user feedback. This feature ensures that users are aware of their access status. Thus, making the overall access process smooth and efficient.
With its advanced technology and robust design, the Luminys RD1BN Bluetooth and Card Access Reader is the perfect solution for all your security and access control needs. Invest in this top-of-the-line device today and take your building’s security to the next level.
| Card Reading Functions | |
| Card Type | IC (MIFARE) |
| Frequency Range | 13.56 MHz |
| Maximum Transmission Power | 42 dBm at 10 m |
| Verification Method | Bluetooth, Card |
| Response Time | 0.1 s |
| Card Reading Distance | 0 inches (0 cm) To 2.0 inches (5.08 cm) |
| Bluetooth Functions | |
| Bluetooth Standard | Mode: BR/EDR/BLE |
| Version | BT5.0/BT5.2/BLE4.0 |
| Frequency Range | 2400–2483.5 MHz |
| Maximum Transmission Power | CE EIRP: ≤ 20 dBm at 2400–2483.5 MHz FCC Output Power: ≤ 30 dBm at 2400–2483.5 MHz |
| Bluetooth Reading Distance (The reading range may differ depending on the phone model and the environment.) | Short Range: ≤ 0.7 ft (21.34 cm) Mid-Range: ≤ 6.6 ft (2.01 m) Long Range: ≤ 32.8 ft (10 m) |
| Interface | |
| RS-485 | One (1) Channel |
| Wiegand | One (1) Output Channel |
| Alarm | Event Tamper |
| Electrical | |
| Power Supply | 12 VDC, 0.5 A |
| Power Consumption | Standby: ≤ 0.9 W Working: ≤ 1.7 W |
| Construction | |
| Net Weight | 0.22 lbs |
| Gross Weight | 0.44 lbs |

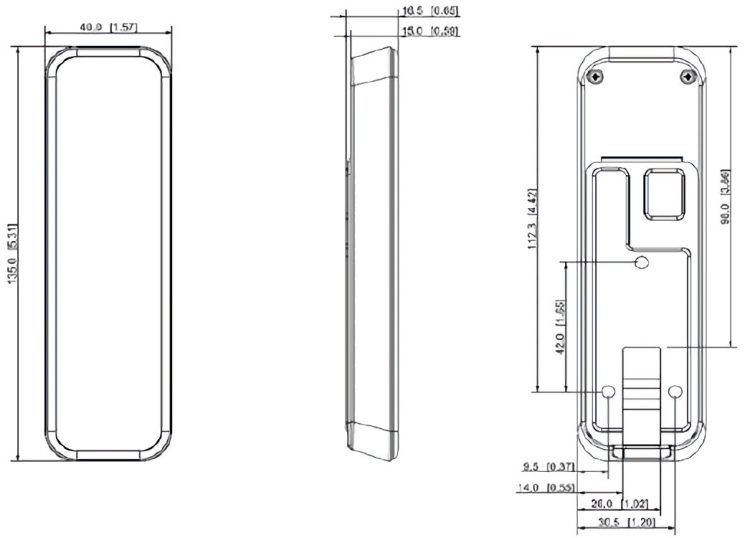

| Product Dimensions (H × W × D) | 5.3 inches (13.46 cm)× 1.6 inches (4.06 cm) × 0.6 inches (1.52 cm) |
| Package Dimensions (H × W × D) | Inner Carton: 7.7 inches (19.56 cm) × 3.0 inches (7.62 cm) × 2.1 inches Outer Carton: 16.3 in. × 15.8 in. × 9.1 in. |
| Operating Temperature | 22 °F (-5.56 °C) to 158 °F |
| Humidity | 5% to 95% (RH), Non-Condensing |
| Protection Ratings | IP66 Ingerss Protiction |
| Material | Tempered Glass and PC |
| Installation Method | Surface Mount |
| Certifications and Compliance | |
| Certifications | FCC/FCC ID, IC/IC ID |
| Compliance | NDAA |
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 17 × 16 × 10 in |
