DA-AC5000RF

0 out of 5

( There are no reviews yet. )

Original price was: $1,249.99.Current price is: $679.95.

Overview of the DA-AC5000RF Fingerprint Scanner Benefits of State-of-the-Art Design and Robust IP65-Rated Housing

Customizable Color LCD Screen with LED Touch Keypad

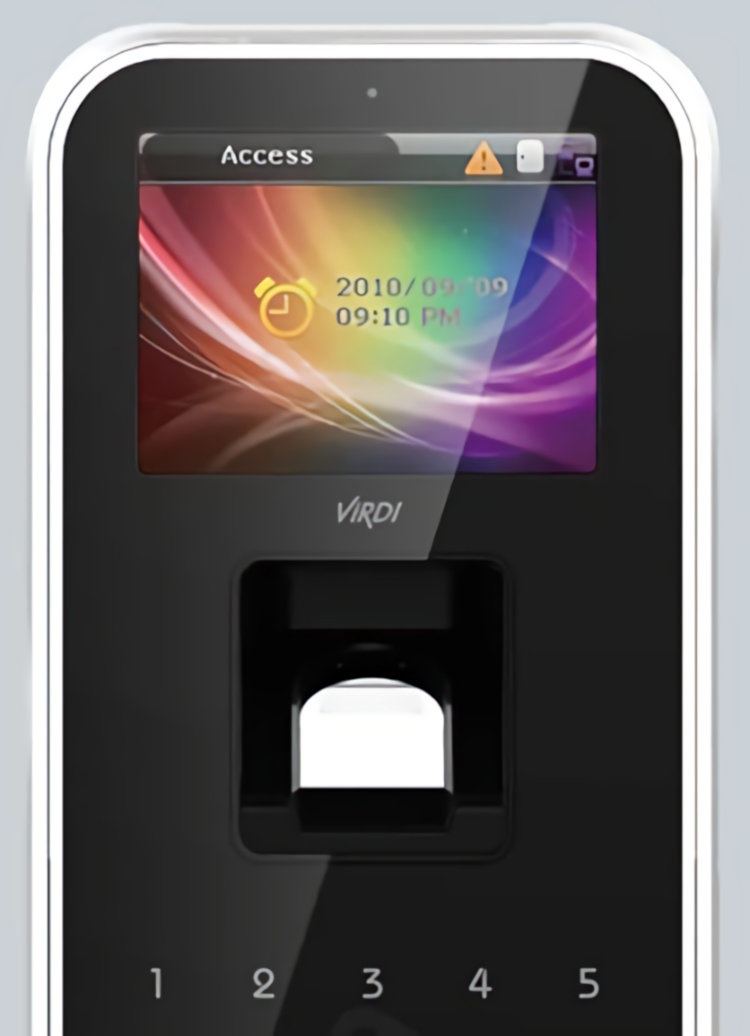

User-Customizable LCD Background
Versatile Installation
Patented Optical Sensor Technology
20,000 User Capacity & 61,000 Logs
Global and Individual Message Broadcast
1–3000 Users or Fewer Than 1 Sec LED Backlit Outdoor Installation
Larger Scanner Surface
Additional Live and Fake Fingerprint Detection
RF Cards & Smart Cards Can Be Used With Device

ViRDI biometric access control terminals are available at Collsam Security

Availability: In stock SKU: DA-AC5000RF Categories: Access Control, Accessories, Door Access, Home and Office Automation Tags: Access Control, Automatic door opening system, Door access, Time and Attendance

Description

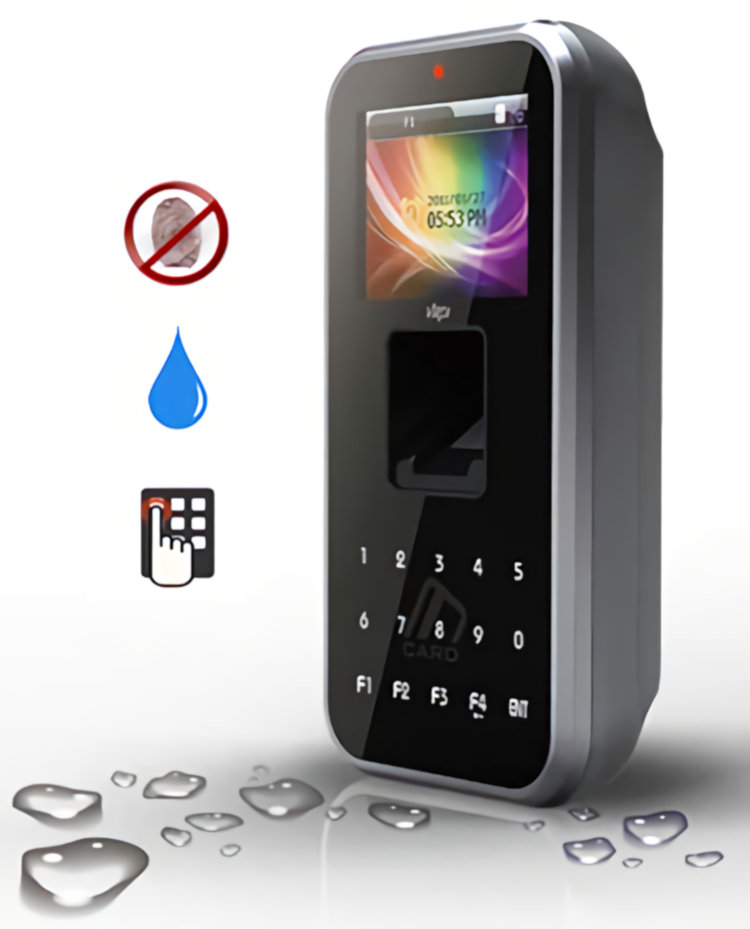

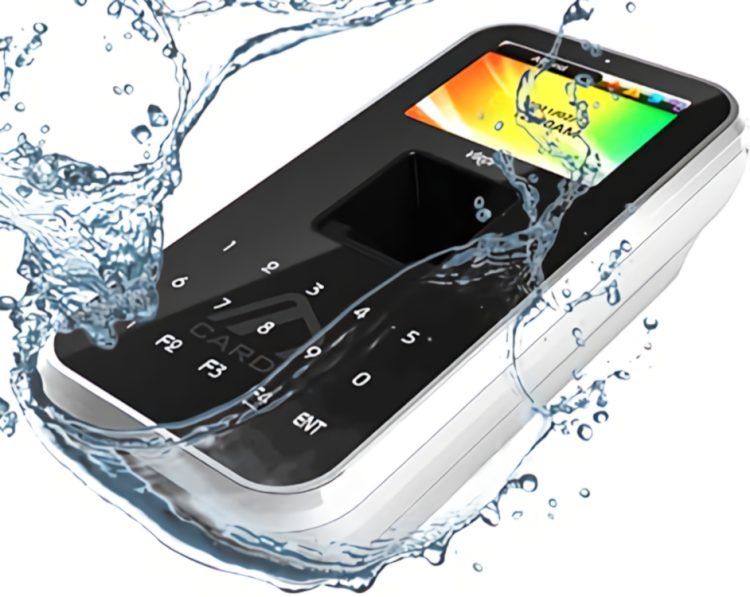

The VIRDI DA-AC5000RF Fingerprint Scanner is the perfect addition to your home or office security setup. A sleek, modern design with a customizable color LCD screen and LED touch keypad makes this device easy to use. The device is waterproof and can handle any weather. The device also features a user-customizable LCD background with status and system messages.

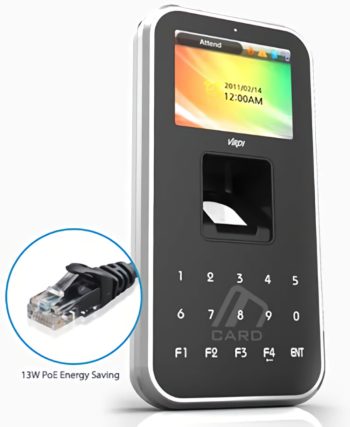

The VIRDI DA-AC5000RF scanner also features POE, terminal connectors, and a slim vertical design for easy, versatile installation. Patented optical sensor technology is capable of detecting fake fingers made of paper, rubber, or silicon, as well as detecting 20,000 users and 61,000 log entries.

VIRDI DA-AC5000RF scanner also boasts global and individual message transmission, up to 3000 users under less than 1 second LED-backlit outdoor installation, and a larger scanner surface for enhanced real-life and fake fingerprint detection.

Furthermore, the VIRDI DA-AC5000RF can use radio frequency cards and smart cards with fingerprint verification. This provides you with an additional layer of security and peace of mind.

The VIRDI DA-AC5000RF Fingerprint Scanner is the ultimate security device for your home or office. With its robust construction and state-of-the-art security features, this device is sure to keep you and your data safe. Its elegant design and versatile installation make it a perfect fit for any security setup. Additionally, it supports RF and smart cards, providing you with the ultimate security solution for your home or office.

You should invest in the VIRDI DA-AC5000RF Fingerprint Scanner today and rest assured that your data will be safe and secure.

Datasheet

Download

VIRDI DA-AC5000RF Fingerprint Scanner IP65-Rated Housing Customizable LCD LED Touch Keypad POE RF and Smart Card Support Patented Optical Sensor Tech Datasheet

User's Guide

Download

VIRDI DA-AC5000RF Fingerprint Scanner IP65-Rated Housing Customizable LCD LED Touch Keypad POE RF and Smart Card Support Patented Optical Sensor Tech Users Guide

Brochure

Download

VIRDI DA-AC5000RF Fingerprint Scanner IP65-Rated Housing Customizable LCD LED Touch Keypad POE RF and Smart Card Support Patented Optical Sensor Tech Brochure

CPU	32Bit RISC CPU (400MHz)
Rainproof	IP65
LCD	2.8″ TFT Color (320×240)
Touch Key	15key (0~9, F1~F4, Enter)
MEMORY	32M SDRAM / 32M FLASH
Fingerprint sensor	Optical
Authentication speed	Within 1 second
Scan Area / Resolution	15 * 17mm / 500 DPI
FRR / FAR	0.1% / 0.001%
Temperature / Humidity	-20 ~ 50 / Lower than 90% RH
POE	Supports 13W POE
AC / DC Adapter	INPUT : Universal AC 100 ~ 250V OUTPUT : DC 12V UL, CSA, CE Approved
Lock Control	EM, Strike, Motor Lock, Auto Door
I/O	3 In (1 Exit, 2 Monitor) 2 Out (Lock Control)
Communication Port	TCP/IP (10/100Mbps) RS-232 / RS-485 Wiegand In/Out
Card Reader	125KHz RF / 13.56MHz Smart (1 SAM Socket)
SIZE	3.4646 inches (8.8 cm) x 6.8898 inch (17.5 cm) x 1.7087 inch (4.34 centimeters)

Additional information

Weight	2 lbs
Dimensions	5 × 3 × 8 in

Brand

ViRDI

ViRDI provides biometric access control, fingerprint access terminals, face recognition terminals, and access control software for secure facilities. These products support doors, employee entry, visitor access, and time-attendance programs. Authentication options include fingerprint, face, RFID card, PIN, mobile credentials, iris, and QR codes. Installers can choose compact readers, touchscreen terminals, outdoor models, enrollment scanners, and controllers.Biometric access control helps organizations verify users before granting entry. Fingerprint access terminals combine fingerprint and card authentication in one device. Face recognition terminals provide contactless entry for busy doors and shared spaces. Access control software manages users, schedules, permissions, events, and attendance records. ViRDI systems can connect compatible terminals through UBio Alpeta or UNIS management platforms. Always confirm credential support, network requirements, door hardware, software licenses, and environmental ratings before installation.

ViRDI Biometric Access Control

ViRDI develops biometric security products for offices, stores, warehouses, schools, healthcare facilities, government buildings, and other controlled locations. Available solutions help organizations manage secure doors, employee attendance, and authorized user access.

Authentication Options

Compatible terminals may support fingerprint, facial recognition, RFID cards, PIN codes, mobile credentials, iris recognition, and QR codes. Multimodal models can combine several methods for stronger identity verification.

Readers, Terminals and Controllers

The product range includes compact door readers, touchscreen terminals, outdoor units, enrollment scanners, portable readers, and access-control panels. Buyers should select equipment according to the number of doors, credential type, mounting location, and required user capacity.

Management Software

UBio Alpeta and UNIS platforms help administrators manage compatible devices, users, schedules, access permissions, event logs, and attendance information. Software features and licensing requirements vary by system.Always verify reader compatibility, communication format, network requirements, relay configuration, power supply, software version, and environmental rating before installation.
