VAX-TROVE-4DR
Original price was: $4,117.00.$2,875.95Current price is: $2,875.95.

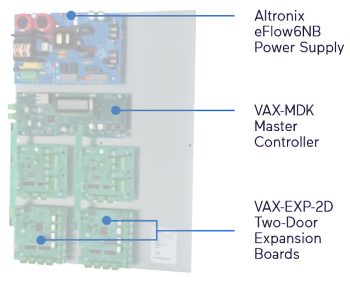

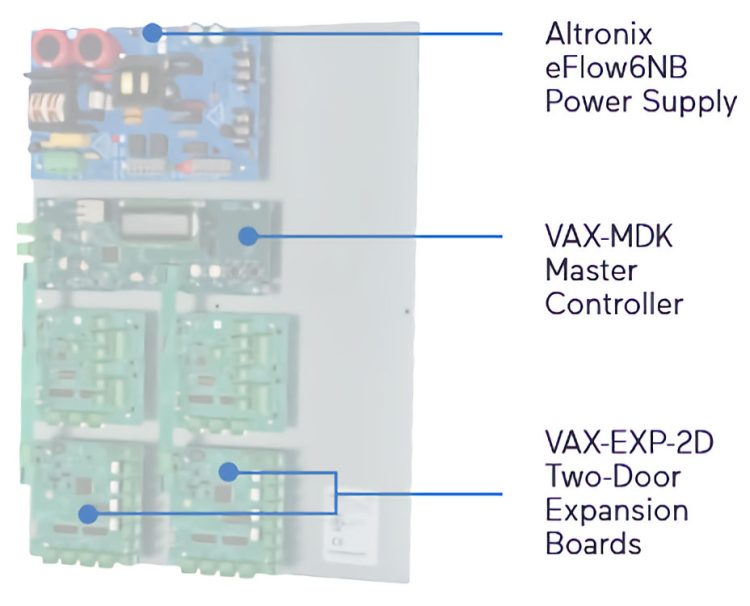

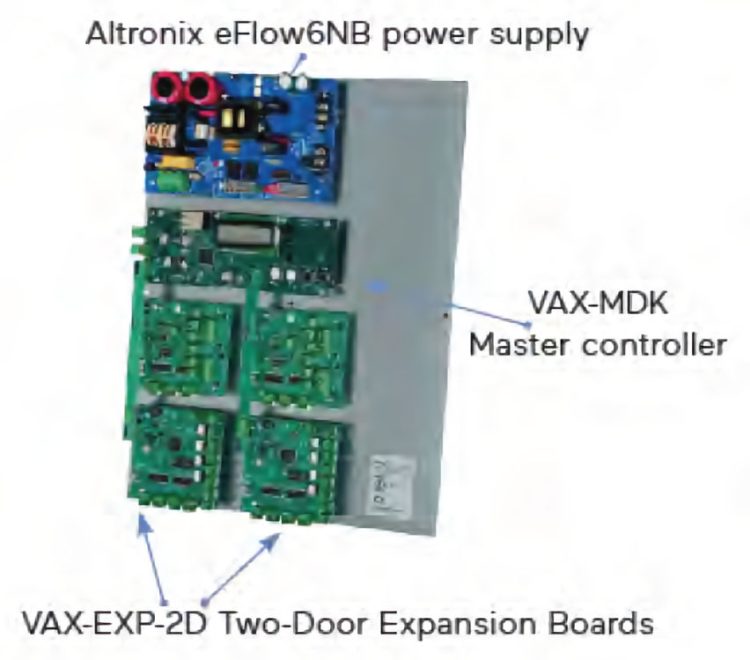

Vicon Security Four-Door Controller Vax-Trove-4Door
- Manages access for four doors.
- Includes a single master controller board (VAX-MDK Master).
- Uses two two-door expander boards (VAX-EXP-2D).
- Housed in an Altronix Trove1 steel lockable enclosure for security.
- Comes with a built-in eFlow6NB power supply providing 12 VDC @ 6A.
- Typically supports Wiegand protocol for reader communication.
- There is a version that also supports OSDP protocol (VAX-TROVE-4DR-OSDP)
SKU: VAX-TROVE-4DR
Categories: Access Control, Door Access, Home And Office Automation
Tags: 4 Door Access controller, Door access, Door Access controller, NDAA Compliant;- Description
- Attachment
- Specifications
- Additional information
- Reviews (0)
Description
A key part of the Vicon Access Control (VAX) system, the VAX-TROVE-4DR can control up to four doors. This reliable and durable four-door controller is a component of the Trove series. It is perfect for commercial, industrial, and institutional facilities, providing a highly secure and efficient solution for access control.
The VAX-MDK Master controller board is the mind behind the VAX-TROVE-4DR. It controls the whole system. It is easy to connect the four-door controller to the Vicon access control system’s keypads, card readers, and biometric readers.
The VAX-MDK Master board also makes sure that the controller and the doors can talk to each other. In this way, only authorized people will be able to easily and safely get in.
Adding two VAX-EXP-2D expander boards to the VAX-TROVE-4DR will increase its size. This gives users even more choices. This way, one controller can control up to eight doors. This makes it a perfect choice for larger facilities with multiple access points. Expander boards facilitate easy scalability and enable the addition of additional doors to the system as needed.
A locked Altronix Trove1 steel case protects the VAX-TROVE-4DR. This gives the controller and all of its parts the highest level of security. This durable enclosure is a dependable and long-lasting method of controlling access because it is designed to withstand tampering and harsh conditions. A consistent 12VDC 6A power source for all connected devices is also provided by the controller’s integrated eFlow6NB power supply.
In conclusion, the reliable, adaptable, and secure VAX-TROVE-4DR four-door controller is an essential component of the Vicon access control system. It’s well-built, can be expanded, and works with many protocols, so you can control who comes in and out. No matter how big or small your business is, a secure and effective access control system must include the VAX-TROVE-4DR.
| Hardware Components: | 1X VAX-MDK Master; 2X VAX-EXP-2D; 1X Trove 1 enclosure; 1X eFlow6NB power supply |
| Processor: | 32-bit microprocessor based |
| Power: | Supply: eFlow6NB. Input: 120 VAC, 60 Hz, 3.5 A; Output: 12 VDC @ 6 A (72 W). Supervised fire alarm disconnected (NO/NC trigger), short circuit and overload protection and AC Fail supervision. Port for battery backup with built-in charging for standard 12 VDC 7 Ah dry cell battery (not included). |
| Communication: | Between Master controller and VAX web server: 1x Ethernet 10/100 Mbps. Between Master controller and VAX-EXP-2D: RS-485 2-wire (daisy chain or star) Wire Spec: 1,968.50 ft (600 m) max distance; 2 conductors, stranded 22 AWG, shielded. |
| Network: | Speed: 10/100 Mbps. Modes: Static or DHCP. MAC: Unique. Encryption (panel-server): 256-bit AES option. 1 NIC port (4/8 Door) or 2 NIC (12/16 Door). Wire Spec: 328.1 ft (100 m) max distance, Cat5 or better. |
| I/O: | Inputs: 12X supervised or digital (door contact, exit button, external REX, etc.). Outputs: 4X lock relays (12 VDC, 500 mA power per lock; 8X solid-state relays (24 VDC, 1 A limit per relay). Wire Spec: 500 ft (152.4 m) max distance; 2 conductors, stranded 22 AWG, shielded. |
| Readers: | Reader Port: 4X Wiegand |
| User Interface: | LED indicators: 7X power; 4X reader; 1X network; 5X heartbeat; 12X relay output; 5X on/off-line; 8X RS-485 status. LCD: 1X 16-channel; 2-line LCD with backlight. Push buttons: 4 tactile switch. Sound: 1X 90 dB Piero buzzer. |
| Schedules: | Unlimited door time zones (20 zones per time zone); 256 user time zones; 32 one-time special event door time zones (single zone); 50 door/user holiday groups; supports input time zones; support output time zones |
| Protection: | Over-current |
| Anti-Passback: | Requires that a VAX-MOD-ME module to be installed onto the PCB. Refer to illustration provided. |
| Time Keeping: | Date/Time: 1x on-board real-time clock (no battery required, maintains up to 1 month); automatic DST switch |
| Memory: | Flash Memory: 8.0 Mb |
| Housing and Backplate: | Steel (16 AWG) powder-coated lockable enclosure; THC1/TM1R/THC2 backplate includes standoffs for eFlow6NB/ eFlow102NB power supply and MDK controllers. 9x/7x .5 inch (12.7 cm) – 7.5 inch (19.05 cm)Â combination knockouts (4/8 Door); 1 inch (2.54 cm) x 1.5 inch (3.81 cm) knockout/16x 3 inch (7.62 cm)/4 inch (10.16 cm)-1″ combination knockouts; 1x 2″ knockout (12/16 Door) |
| Options: | 24 VDC Converter: converts 12 VDC to 24 VDC Dry Contact Converter: converts wet to dry contact Expansion Port: supports serial, extra memory, I/Os for future expansion |
| Storage: | Stores up to 100,000 cardholders. Stores up to 50,000 events, first in first out queue. |
| Mechanical & Environmental | |

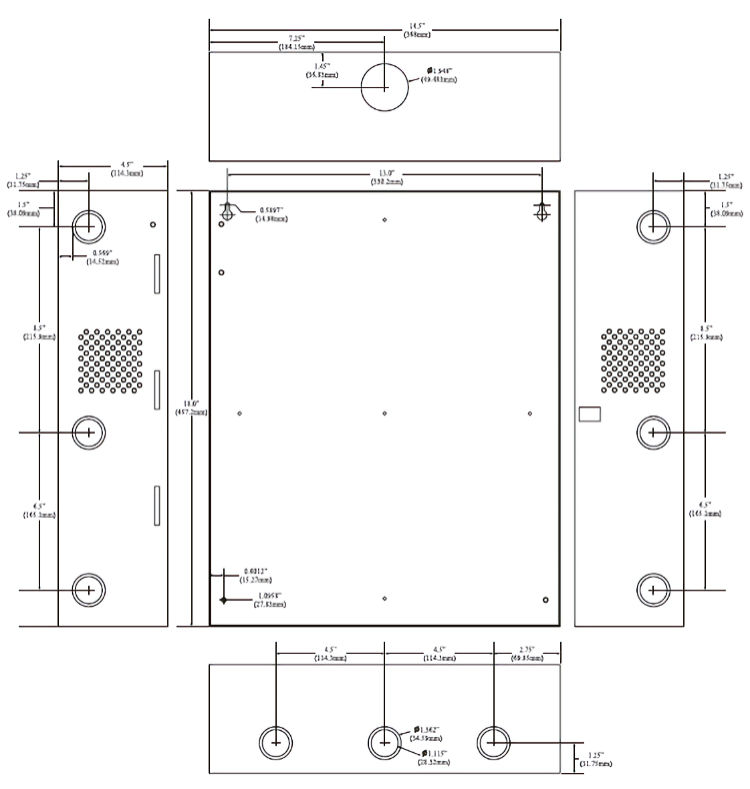

| Dimensions: | Trove 1 Box: W: 14.5 inches (36.83 cm); H: 18.0 inches (45.72 cm); D: 4.62 inches (11.73 cm) Trove 2 Box: W: 21.75 inches (55.25 cm); H: 27.25 inches (0.69 m); D: 6.5 inches (16.51 cm) Rack-Mount: W: 19.0 inches (48.26 cm); H: 3.25 inches (8.26 cm); D: 26.5 inches (0.67 m); 2U |
| Weight: | Trove 1 Box: 11.8 lb (5.35 kg) Trove 2 Box: 29.1 lb (13.2 kg) Rack-Mount: Approximately 18 lb (8.16 kg) |
| Operating Temperature: | 32 °F (0 °C) – 120 °F (48.89 °C) |
| Operating Humidity: | 10% to 85% relative humidity, non-condensing |
| Approvals: | UL294; CE |
| Country of Origin: | Canada |
Additional information
| Weight | 8 lbs |
|---|---|
| Dimensions | 20 × 5 × 28 in |
