NVR301-08X-P8

0 out of 5

( There are no reviews yet. )

Original price was: $509.00.Current price is: $249.95.

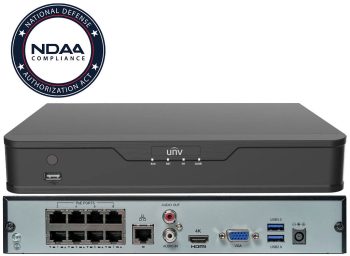

Uniview NVR301-08X-P8 8 Channel PoE NVR, NDAA Compliant, 4K Ultra HD with 1 SATA HDD Bay

Support Ultra 265/H.265/H.264 video formats
8-channel input
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
Support 1-ch HDMI, 1-ch VGA
HDMI and VGA simultaneous output
Up to 8MP resolution recording
1 SATA HDD up to 6 TB
Support cloud upgrade
NDAA Complaint

SKU: NVR301-08X-P8 UPC: 848076031739 Categories: 8 MegaPixel 4K Network IP Cameras, Network IP Cameras Tags: NDAA Compliant;, ONVIF Profile S/G/T, PoE (IEEE 802.3af), PoE (IEEE 802.3at), Ultra 265 H.265 H.264, VCA

Description

The Uniview NVR301-08X-P8 is a powerful, professional-grade 8-channel Network Video Recorder. It is built to deliver reliable, high-definition surveillance for homes, businesses, and larger security installations. Designed for IP camera systems, it combines robust performance with easy setup. Moreover, this makes it an ideal choice for users who want advanced recording capabilities without unnecessary complexity.

One of its standout features is the integrated 8-port PoE switch. This allows compatible cameras to connect directly to the recorder for simple plug-and-play installation. With 8 independent 100 Mbps PoE ports that comply with IEEE 802.3at/af standards and a total power budget of up to 108W, the NVR301-08X-P8 helps streamline deployment. It also reduces the need for separate power sources and extra cabling.

This NVR supports 8-channel IP video input with up to 64 Mbps incoming and outgoing bandwidth. Additionally, it can record video at resolutions up to 8MP, including crisp 4K at 3840 × 2160. It also supports Ultra 265, H.265, and H.264 compression.

This helps optimize storage efficiency and network performance while preserving excellent image quality. Whether you are monitoring entrances, parking areas, warehouses, or office spaces, this recorder is designed to capture clear, detailed footage.

For storage flexibility, the unit includes 1 SATA interface supporting a single internal hard drive up to 10 TB. Thus, it is suitable for everything from entry-level systems to more demanding recording environments. It is often available as a no-HDD base model or bundled with different drive capacities. This allows you to choose the setup that best fits your recording retention needs.

The Uniview NVR301-08X-P8 also offers flexible display and integration options, including simultaneous 1-channel HDMI output up to 4K resolution and 1-channel VGA output. As an ONVIF-compliant recorder supporting Profiles S, G, and T, it works with a wide range of third-party IP cameras. This gives users greater freedom when expanding or upgrading their surveillance system.

Datasheet

Download

Uniview NVR301-08X-P8 8-channel 4K NVR with 8 PoE ports, 64 Mbps bandwidth, ONVIF support, and smart analytics datasheet.

Quick Guide

Download

Uniview NVR301-08X-P8 8-channel 4K NVR with 8 PoE ports, 64 Mbps bandwidth, ONVIF support, and smart analytics Quick Guide.

Video/Audio Input
IP Video Input	8-ch
Two-way Audio Input	1-ch, RCA
Network
Incoming Bandwidth	80Mbps
Outgoing Bandwidth	64Mbps
Remote Users	128
Protocols	P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output	HDMI: 3840×2160/30Hz,1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
Recording Resolution	4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output	1-ch, RCA
Synchronous Playback	8-ch
Corridor Mode Screen	3/4/5/7/9
Decoding
Decoding format	Ultra 265/H.265/H.264
Liveview/Playback	4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability	2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30,8 x 1080p@30
Hard Disk
SATA	1 SATA interface
Capacity	up to 6TB for each disk
External Interface
Network Interface	1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface	Rear panel: 1 x USB2.0,1 x USB3.0
PoE
Interface	8 RJ45 10M/100M self-adaptive Ethernet Interface
Max Power	Max 30W for single port Max 75W in total
Supported Standard	IEEE 802.3at, IEEE 802.3af
General
Power Supply	52V DC Power Consumption: ≤8 W (without HDD)
Working Environment	14°F (-10°C )~ 131°F (55°C), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H)	10.2 inches (0.26 m) × 9.4 inches (0.24 m) × 1.9 inches (4.83 cm)
Weight (without HDD)	2.20 lb (1 kg)
