IPC3534SR4-ADZK-H
Original price was: $719.00.$255.95Current price is: $255.95.Ea

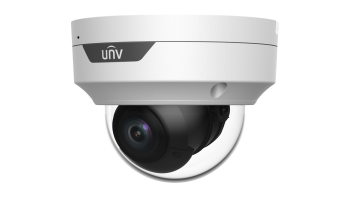

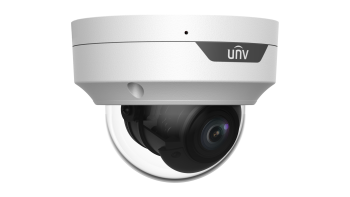

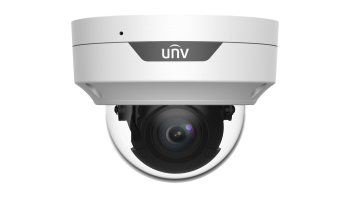

Uniview IPC3534SR4-ADZK-H 4MP Dome Camera
- 4MP video resolution
- 2.8–12 mm motorized varifocal lens
- Smart IR illumination up to 40 m
- 120 dB true WDR
- Built-in microphone and MicroSD storage
- IP67 weather resistance and IK10 vandal protection
- PoE and ONVIF compatibility
- Description
- Technical Specifications
- Product Resources
- Additional Information
- Collsam Brands
- Reviews
Description
The Uniview IPC3534SR4-ADZK-H is a Uniview 4MP dome camera and motorized varifocal IP camera for reliable video monitoring. Its metal housing makes it an IP67 IK10 network camera. Also, its 40m IR dome camera capability supports clear monitoring after dark for homes, businesses, and public spaces.
The 1/3-inch CMOS sensor captures video up to 2688 × 1520 resolution. In addition, a 2.8–12 mm autofocus lens gives the motorized varifocal IP camera adjustment from a wide 86.3° view to a focused 35.2° view.
The 40m IR dome camera provides night visibility up to 40 m (131.2 ft). Meanwhile, 120 dB true WDR helps preserve detail in scenes with strong differences between bright and dark areas.
Moreover, Ultra 265, H.265, H.264, and MJPEG compression help manage bandwidth and storage. For example, smart event tools include motion, ultra motion, tampering, audio detection, human-based cross-line detection, and human-based intrusion detection. The Uniview IPC3534SR4-ADZK-H also supports efficient continuous video recording.
The IP67 IK10 network camera includes a built-in microphone and MicroSD edge storage up to 256 GB. It also supports 12 VDC and IEEE 802.3af PoE power, ONVIF Profiles S, G, and T, and 6 kV surge protection.
The camera supports local recording and network storage options. As a result, flexible power and mounting choices simplify upgrades in systems. Its compact dome profile provides discreet coverage for commercial security settings.
The Uniview IPC3534SR4-ADZK-H connects to network video recorders and video-management platforms. Additionally, ONVIF support simplifies links with third-party systems. Together, edge storage, smart events, audio monitoring, and flexible lens control make it suitable for installations, system expansions, and replacements. This design also helps teams manage daily video checks across many monitored areas.
Finally, official accessories support junction-box, wall, pole, corner, and pendant installation. Review the Specification and Product Documents tabs for product details and mounts.
Set product image
| Model | IPC3534SR4-ADZK-H |
|---|---|
| Resolution | 4 MP, up to 2688 × 1520 |
| Sensor | 1/3-inch CMOS |
| Lens | 2.8–12 mm autofocus motorized varifocal, F1.6 |
| Field of View | Horizontal 86.3°–35.2°; Vertical 47.1°–17.0°; Diagonal 91.9°–38.6° |
| Minimum Illumination | Color: 0.003 lux; 0 lux with IR |
| IR Distance | Up to 40 m (131.2 ft) |
| WDR | 120 dB true WDR |
| Compression | Ultra 265, H.265, H.264, MJPEG |
| Storage | MicroSD up to 256 GB; NAS (NFS); ANR |
| Audio | Built-in microphone |
| Network | 1 × RJ45 10/100 Base-TX Ethernet |
| Compatibility | ONVIF Profiles S, G, and T; API; SDK |
| Power | 12 VDC ±25% or IEEE 802.3af PoE; maximum 8 W |
| Protection | IP67, IK10, 6 kV surge protection |
| Operating Environment | -30°C to 60°C (-22°F to 140°F), ≤95% RH non-condensing |

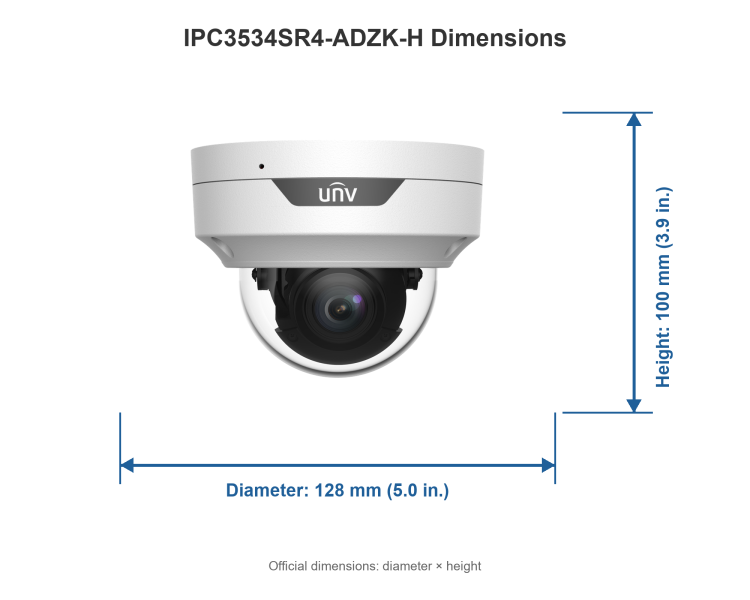

| Dimensions | Ø5.0 inches (128 mm) × 3.9 inches (100 mm) |
| Weight | 1.46 lb (0.66 kg) |
| Material | Metal |
