IPC6622SR-X33-VF
Original price was: $1,739.00.$950.00Current price is: $950.00.
- High-quality image with 2MP,1/2.8” CMOS sensor
- 1920×1080@60fps in the main stream
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- 33X Optical Zoom
- Smart intrusion prevention, supports false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
- People Counting, supports people flow counting and crowd density monitoring, suitable for different statistical scenarios
- LightHunter technology ensures ultra-high image quality in low illumination environment
- Smart IR, up to 492 ft (149.96 m) IR distance
- AC 24V±25%, DC 24V±25% or PoE power supply
- Alarm 2 in and 1 out, Audio 1 in and 1 out
- IP66 ingress protection
SKU: IPC6622SR-X33-VF
Categories: Network IP Cameras, PTZ Network IP Cameras
Tags: HLC, NDAA Compliant;, PTZ Network IP Camera, WDR (Wide Dynamic Range)- Description
- Attachment
- Additional information
- Specifications
Description

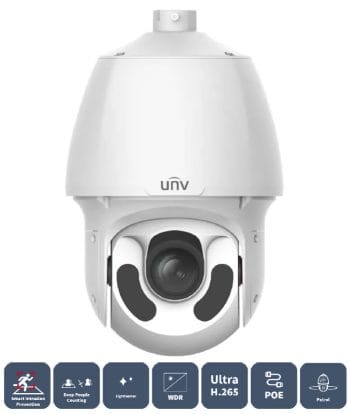

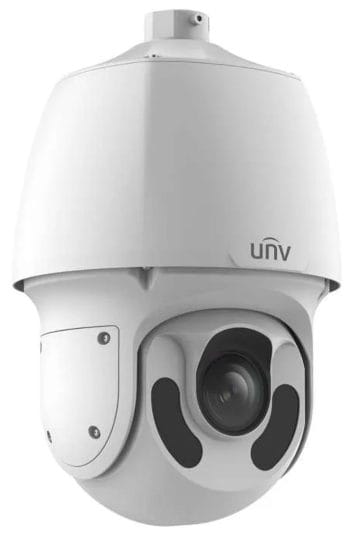

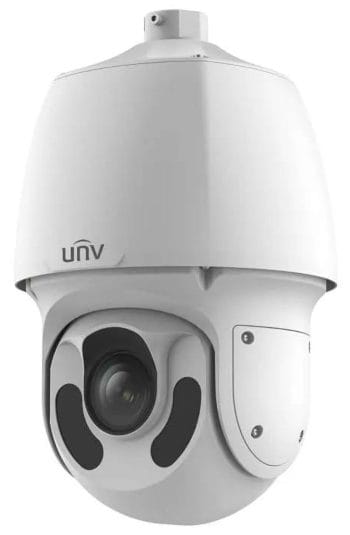

The Uniview IPC6622SR-X33-VF is a top-of-the-line 2MP network PTZ dome camera perfect for residential use. This camera has advanced features that make it the best choice for keeping an eye on your home or property. With its wide angle, you can see numerous things around you. The IPC6622SR-X33-VF is ideal for keeping an eye on your backyard or front porch.
This PTZ dome camera can capture video and audio. It’s capable of detecting any movement in its area and even recording audio, making it a great home security tool. There are IR LEDs that can see up to 492 feet (149.96 meters) clearly on the IPC6622SR-X33-VF.
The Uniview IPC6622SR-X33-VF has a 1/2.8 CMOS sensor that can capture high-definition 1080p video at 60 frames per second. It’s easier to spot any potential threats or suspicious activity when you get a clear and smooth video feed. There is a versatile 56.2 to 2.6° horizontal field of view provided by the motorized varifocal lens on this camera.
The Uniview IPC6622SR-X33-VF is smart enough to prevent intrusions, filter false alarms, and count people. This camera can tell the difference between people and other things. This helps prevent false alarms caused by moving things like animals or trees. Furthermore, it has smart technology for counting people, which can help stores and other businesses monitor how many customers visit.
At Collsam Distribution, we take pride in being your reliable source for everything Uniview. We only offer security products like the Uniview Cameras. With its advanced features, high-quality video, and reliable performance, this camera is a must-have for any modern home. So why wait? Upgrade your home security today with the Uniview IPC6622SR-X33-VF from Collsam Distribution.
Additional information
| Weight | 13 lbs |
|---|---|
| Dimensions | 11 × 6 × 17 in |
| Camera | |||||
| Sensor | 1/2.8”, 2.0 megapixel, progressive scan, CMOS | ||||
| Min. Illumination | Color: 0.001 Lux (F1.5, AGC ON) 0 Lux with IR | ||||
| Day/Night | IR-cut filter with auto-switch (ICR) | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| WDR | 120dB | ||||
| S/N | >52dB | ||||
| Lens | |||||
| Lens | 4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens | ||||
| Digital Zoom | 16 | ||||
| Optical Zoom | 33 | ||||
| Iris | Auto; F1.5 ~ F4.0 | ||||
| Field of View (H) | 56.2° ~ 2.6° | ||||
| Field of View (V) | 33.5° ~ 1.4° | ||||
| Field of View (D) | 69.1° ~ 3.1° | ||||
| DORI | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 4.5 | 239.3ft (72.94 m) | 95.7ft (29.17 m) | 47.9ft (14.6 m) | 23.9ft (7.28 m) | |
| 148.5 | 7178.3ft (2,187.95 m) | 2871.3ft (875.17 m) | 1435.7ft (437.6 m) | 717.8ft (218.79 m) | |
| Illuminator | |||||
| IR Range | Up to 492 ft (149.96 m) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| Frame Rate | Main Stream: 2MP (1920×1080), Max 60fps; Sub Stream: 2MP (1920×1080), Max 60fps; Third Stream: D1 (720×576), Max 60fps; | ||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| U-code | Support | ||||
| ROI | Support | ||||
| Video Stream | Triple streams | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | 24 areas, up to 4 areas per scene | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital Noise Reduction | 2D/3D DNR | ||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||
| HLC | Support | ||||
| BLC | Support | ||||
| Defog | Digital Defog | ||||
| Intelligent | |||||
| Smart Intrusion Prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection | ||||
| People Counting | Support people flow counting and crowd density monitoring | ||||
| Events | |||||
| Basic Detection | Motion detection, Audio detection, Tampering Alarm | ||||
| Auto-Tracking | Support | ||||
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.711U,G.711A | ||||
| Audio Bitrate | 64 Kbps | ||||
| Two-way Audio | Support | ||||
| Suppression | Support | ||||
| Sampling Rate | 8 kHz | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256 GB | ||||
| Network Storage | ANR, NAS(NFS) | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||||
| User/Host | Up to 32 users. 3 user levels: administrator, operator and common user | ||||
| Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
| Client | EZStation EZLive EZView | ||||
| Web Browser | Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||
| Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||
| Pan and Tilt | |||||
| Pan Range | 360° (endless) | ||||
| Pan Speed | 0.1°/s ~ 200°/s | ||||
| Preset speed: 300°/s | |||||
| Tilt Range | –15° ~ 90° (auto reverse) | ||||
| Tilt Speed | 0.1° ~ 200°/s | ||||
| Preset speed: 240°/s | |||||
| Number of Presets | 1024 | ||||
| Preset Patrol | 16 patrols, up to 64 presets for each patrol | ||||
| Route Patrol | 16 patrols, up to 32 actions for each patrol | ||||
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol | ||||
| Patrol Stay Time | 15s~1800s | ||||
| Preset Image Freeze | Support | ||||
| Home Position | Support | ||||
| Interface | |||||
| Audio I/O | 1/1 | ||||
| Alarm I/O | 2/1 | ||||
| Serial Port | 1 RS485 | ||||
| Built-in Mic | N/A | ||||
| Built-in Speaker | N/A | ||||
| Wi-Fi | N/A | ||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
| Video Output | 1 BNC | ||||
| Certification | |||||
| EMC | CE-EMC (EN 55032:2015+A11:2020; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55035:2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | ||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | ||||
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863) | ||||
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) | ||||
| General | |||||
| Power | AC 24V±25%, DC 24V±25%, PoE (PSE Required) | ||||
| Power consumption: Max 41W | |||||
| Power Interface | Wires with cold-pressed terminal | ||||

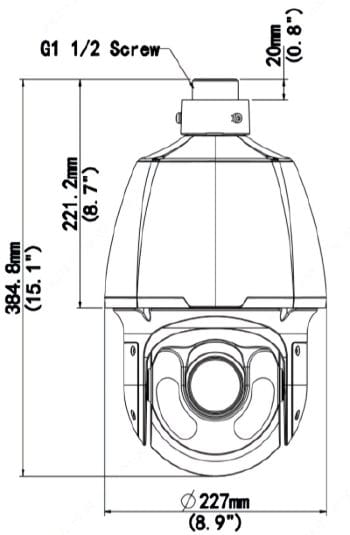

| Dimensions (Ø x H) | Ø227 x 384.8mm (Ø8.9” x 15.1”) | ||||
| Weight | 5.39kg(11.88lb) | ||||
| Working Environment | -40 °F (-40 °C) ~ 158 °F (70 °C), Humidity: ≤95% RH (non-condensing) | ||||
| Storage Environment | -40 °F (-40 °C) ~ 158 °F (70 °C), Humidity: ≤95% RH (non-condensing) | ||||
| Surge protection | 6KV | ||||
| Reset Button | Support | ||||
