-20%

NIR-C3042FV-BW

Eyemax NIR-C3042FV-BW 3MP IP Network IR Bullet Camera With 48 IR LEDs & 2.8~12mm Vari-focal Lens

NIR-C3042FV-BW

Original price was: $199.99.Current price is: $159.95.

In stock

Original price was: $199.99.Current price is: $159.95.

Eyemax NIR-C3042FV-BW 3MP IP Network IR Bullet Camera With 48 IR LEDs & 2.8~12mm Vari-focal Lens

  • 3MP (2048 × 1536) Full Real-Time Coding
  • Maximum Resolution: 2048 × 1536
  • ICR Auto Switch, True Day & Night
  • 30 ~ 50m IR Night View Distance
  • 3D DNR, Digital WDR
  • ROI Coding
  • Support local CVBS video output, two-way voice
    intercom and PoE power supply
  • Support Smartphone, iPad, Remote Monitoring
  • Support P2P
  • 2.8 ~ 12mm Vari-focal Lens
  • H.264 / 48 IR LED
  • Water Proof (IP66)
  • DC 12V / White Casing
Compare

Description

The Eyemax NIR-C3042FV-BW is a high-quality surveillance camera designed for commercial and residential use. It boasts a 3 megapixel resolution, providing crisp and clear images with impressive detail. This camera also features a 2.8~12mm vari-focal lens, allowing for flexibility in the viewing angle and zoom capabilities. This makes it an ideal choice for monitoring large areas or focusing on details.

Equipped with a mechanical IR-cut filter, the Eyemax camera ensures accurate color reproduction in both day and night settings. It changes color to black and white when the light is different, so you can always see the best picture. The camera has 48 LED lights that can be used at night up to 100 feet (30.48 meters) away. They are powerful and reliable.

One of the standout features of the Eyemax NIR-C3042FV-BW is its WDR (Wide Dynamic Range) technology. This allows the camera to capture pictures in bright or shadowy lighting conditions. It combines multiple images at different exposures to produce a well-balanced and detailed image with optimal lighting in all areas. This ensures that no important details are lost in overly bright or dark areas.

The NIR-C3042FV-BW camera is also designed for convenience, featuring Power over Ethernet (PoE) capabilities. This eliminates the need for additional power sources or messy cables. It’s easy to connect security gadgets with other compatible systems because it supports ONVIF.

The Eyemax NIR-C3042FV-BW is a top-of-the-line surveillance camera that offers exceptional image quality and advanced features for reliable and effective monitoring. Its durable construction and weatherproof design make it perfect for both indoor and outdoor use. With its impressive resolution, vari-focal lens, IR-cut filter, WDR technology, and PoE and ONVIF support, this camera is a versatile and powerful tool for all your surveillance needs.

Datasheet

Download

NIR-C3042FV 3 Megapixel Network IP IR Bullet Camera Datasheet

Brochure

Download

Eyemax NIR-C3042FV-BW 3MP IP Network IR Bullet Camera With 48 IR LEDs & 2.8~12mm Vari-focal Lens Brochure

Additional information

Weight3 lbs
Dimensions16 × 8 × 8 in
CAMERA
Image Sensor1 / 3” CMOS
Image Size2048 × 1536
Electronic Shutter1 / 25 s ~ 1 / 100000 s
Min. Illumination0 Lux (IR LED ON)
Lens2.8 ~ 12 mm Vari-focal Lens
Lens MountCS / ø14
Video CompressionH.264 / MJPEG
Resolution3MP (2048 × 1536), 1080P (1920 × 1080), 720P (1280 × 720), D1, CIF, 480 × 240
Multi-Stream3MP (1 ~ 30fps) / 1920 × 1080 (1 ~ 30fps) 1280 × 720 (1 ~ 10fps) / D1 (1 ~ 30fps) / CIF (1 ~ 30fps), CIF (1 ~ 30fps) / 480 × 240 (1 ~ 30fps)
Bit Rate64 Kbps ~ 8 Mbps
Encode ModeVBR / CBR
QualityFive levels under VBR; Freely adjustable under CBR
Image SettingsROI coding, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc. adjustable through client software or web browser
FUNCTIONS
Remote MonitoringIE browsing, CMS remote control
Online ConnectionSupport simultaneous monitoring for up to 10 users; Support multi-stream real-time transmission
ProtocolTCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, Protocol SMTP, FTP
StorageNetwork remote storage
Smart AlarmMotion Alarm
Day & NightICR
PoEYes
IR Distance30 ~ 50m
WaterproofIP66
INTERFACE
NetworkRJ45
AudioTwo-way audio (MIC IN × 1, MIC OUT × 1)
Video OutputCVBS video output (BNC × 1)
Storage CardSupport TF card, the max capacity is 64GB
RS485Yes
Alarm Input / Output1 CH / 1 CH
OTHERS
Power SupplyDC 12V / PoE
Power Consumption< 4W
IR Consumption ON< 8W
Operating Environment14 °F (-10 °C) ~ 122 °F (50 °C), 10% ~ 90% humidity

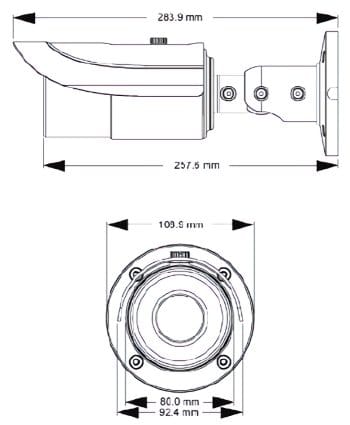

Dimensionsø109mm × 284mm (ø4.3 in × 11.2 in)
Weight (net)1107 g (2.44 lbs)
