The Uniview 4-channel 4-megapixel PoE security system is equipped with a 1 TB HDD, 4 bullet cameras, Smart IR, the EZVIEW app, and an effortless plug-and-play setup.
The Uniview 4-channel 4-megapixel PoE security system is equipped with a 1 TB HDD, 4 bullet cameras, Smart IR, the EZVIEW app, and an effortless plug-and-play setup.
The Uniview 4-channel 4-megapixel PoE security system is equipped with a 1 TB HDD, 4 bullet cameras, Smart IR, the EZVIEW app, and an effortless plug-and-play setup.
The Uniview 4-channel 4-megapixel PoE security system is equipped with a 1 TB HDD, 4 bullet cameras, Smart IR, the EZVIEW app, and an effortless plug-and-play setup.

EK-S31P4B44T1-V3

The Uniview 4-channel 4-megapixel PoE security system is equipped with a 1 TB HDD, 4 bullet cameras, Smart IR, the EZVIEW app, and an effortless plug-and-play setup.

EK-S31P4B44T1-V3

Original price was: $1,449.00.Current price is: $533.95.

In stock
0 out of 5
( There are no reviews yet. )

Original price was: $1,449.00.Current price is: $533.95.

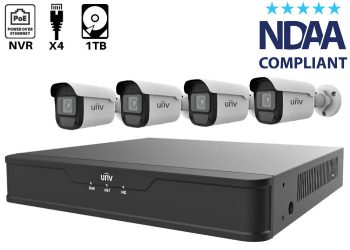

EK-S31P4B44T1-V3 Uniview 4 Channel Surveillance Kit with (4) Bullet, 1TB HDD and (4) Cables

NVR301-04S3-P4

  • Support Ultra 265/H.265/H.264 video formats
  • 4-channel input
  • Plug & Play with 4 independent PoE network interfaces
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support 1-ch HDMI, 1-ch VGA
  • HDMI and VGA simultaneous output
  • Up to 8MP resolution recording
  • 1 SATA 1 TB Surveillance Hard Drive
  • Support cloud upgrade
  • (4) 60 ft (18.29 m) Cat5e Plug and Play Cables

EC-B4F28M-V3

  • Day/night functionality
  • Smart IR, up to 98 ft (29.87 m) IR distance
  • 2D/3D DNR (Digital Noise Reduction)
  • Ultra 265, H.265, H.264, MJPEG
  • ROI (Region of Interest)
  • ONVIF Conformance
  • Wide temperature range: -30°C ~ +60°C (-22°F ~ 140°F)
  • Wide voltage range of ±25%
  • IP67
NDAA-compliant security products at Collsam SecurityUniview security cameras and NVR systems are available at Collsam Security
SKU: EK-S31P4B44T1-V3 Categories: , , , Tags: , , , , , , , , ,

Description

The Uniview EK-S31P4B44T1-V3 is a complete, ready-to-install 4-channel 4MP PoE security camera system built for dependable protection in homes and small businesses. It comes with a 4-channel NVR and four bullet-style IP cameras. The device includes all necessary cables and a 1 TB hard drive. As a result, this system makes setup simple. Additionally, it delivers professional-grade surveillance performance.

Each camera captures sharp 4MP video at 2560 × 1440 resolution. This provides clear detail for monitoring entrances, driveways, storefronts, and other important areas. The 2.8 mm fixed lens offers a wide-angle field of view. Moreover, it helps you cover more space with fewer blind spots. As a result, you get broader overall visibility.

To help maximize storage efficiency without sacrificing image quality, the system supports Ultra 265, H.265, and H.264 compression formats. This means longer recording times and reduced bandwidth usage. Therefore, it is a smart choice for users who want reliable continuous monitoring with efficient data management.

Nighttime security is just as strong, thanks to Smart IR technology that provides clear imaging up to 98 feet (29.87 m) in low-light conditions. In dimly lit environments or after dark, the cameras are engineered to preserve visibility. Accordingly, they support round-the-clock protection.

The cameras are IP67-rated for durability and are capable of withstanding extreme temperatures, dust, and rain. The included 1 TB surveillance-grade hard drive provides immediate storage out of the box.

For added convenience, the Uniview EK-S31P4B44T1-V3 offers free access to the Uniview EZVIEW mobile app and PC client. Therefore, you can monitor your property from virtually anywhere. With plug-and-play installation, strong image quality, weatherproof construction, and remote viewing support, this system delivers an easy, reliable, and comprehensive security solution.

Datasheet

Download

The Uniview 4-channel 4MP PoE security system is equipped with a 1 TB HDD, 4 bullet cameras, Smart IR, the EZVIEW app, and an effortless plug-and-play setup. Please refer to the attached datasheet for more information.

ModelNVR301-04S3-P4
Video/Audio Input
IP Video Input4-channel
Network
Incoming Bandwidth64Mbps
Outgoing Bandwidth48Mbps
Remote Users128
ProtocolsTCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP
Video/Audio Output
HDMI/VGA OutputHDMI:
4K(3840×2160)/30Hz, 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz,
1280×720/60Hz, 1024×768/60Hz VGA:
1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
Recording Resolution4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output1-channel, RCA
Audio CompressionG.711A, G.711U
Synchronous Playback4-channel
Live view display1/4
Corridor Mode Screen3/4
Snapshot
FTP/Schedule/Event Snapshot1-channel snapshot, up to D1 resolution
Decoding
Decoding formatUltra 265/H.265/H.264
Live view/Playback4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30
Hard Disk
SATA1 SATA interfaces
CapacityUp to 8TB for each disk
(The maximum HDD capacity varies with environment temperature)
Smart
VCA Detection by CameraFace Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection, Ultra Motion Detection (UMD)
VCA SearchFace Search, Behavior Search
General Alarm
General AlarmMotion, Tampering, Human Body Detection, Video Loss, Alarm Input
Alert AlarmIP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface1 RJ-45 10M/100M self-adaptive Ethernet Interface
USB InterfaceRear panel: 2 x USB2.0
RS232NA
RS485NA
Alarm InNA
Alarm OutNA
PoE
Interface4 RJ-45 10M/100M self-adaptive Ethernet Interface
Max PowerMax 30W for single port, max 54W in total
Supported StandardIEEE 802.3at, IEEE 802.3af
General
Power Supply48V DC
Power Consumption: ≤9 W (without HDD)
Working Environment14°F (-10°C) ~ 131°F (55°C), Humidity ≤ 90% RH (non-condensing)

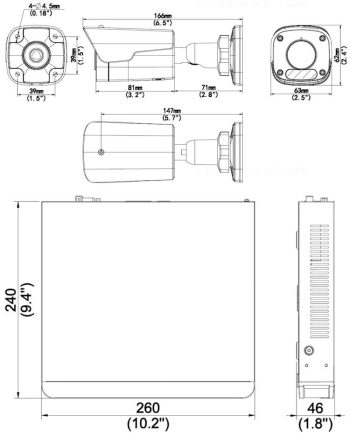

Dimensions (W×D×H)10.2 inches (25.91 cm) × 9.4 inches (23.88 cm) × 1.8  inches (4.57 cm)
Weight (without HDD)≤2.43 lb (1.1 kg)
Certification
CertificationCE, FCC, UL, RoHS, WEEE
CEEN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
FCCPart 15 Subpart B, ANSI C63.4
ModelEC-B4F28M-V3
Camera
Sensor1/2.9”, 4.0 megapixel, progressive scan, CMOS
Minimum IlluminationColor: 0.01 lux (F2.0, AGC ON) 0 lux with IR on
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 ~ 1/100000s
Adjustment anglePan: 0° ~ 360°Tilt: 0° ~ 90°
S/N>52dB
WDR120dB
Lens
Lens Type2.8mm @F2.0
IrisFixed
Angle of View (H)101.5°
Angle of View (V)55.6°
Angle of View (D)111.6°
DORI
DORI DistanceLens (mm)DetectObserveRecognizeIdentify
2.8207 ft (63.09 m)83 ft (25.3 m)41.33 ft (12.6 m)207 ft (63.09 m)
Illuminator
IR RangeUp to 98 ft (29.87 m)
Wavelength850nm
IR On/Off ControlAuto/Manual
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, main profile, high profile
Frame RateMain Stream: 4MP (2560×1440), Max 20 fps; 3MP (2304×1296), Max 30 fps; 1080P (1920×1080), Max 30 fps; 720 P
(1280×720), Max 30 fps
Sub Stream: D1 (720×576), Max 30fps; 640×360, Max 30fps; 2CIF (704×288), Max 30fps; CIF (352×288), Max 30 fps;
Video Bit Rate128 Kbps ~ 6144 kbps
U-codeSupport
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROIUp to 8 areas
Video streamDual streams
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction2D/3D DNR
Smart IRSupport
FlipNormal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
DewarpingNA
HLCSupport
BLCSupport
DefogDigital Defog
Events
Basic DetectionMotion detection, tampering alarm, audio detection, cross line, and Intrusion
General FunctionWatermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication
Storage
Edge StorageMicro SD, up to 128GB
Network StorageANR, NAS(NFS)
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API, SDK
User/HostUp to 32 users. 2 user levels: administrator and common user
SecurityPassword protection, strong password, HTTPS encryption, export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
ClientEZStation EZView EZLive
Web BrowserPlug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/ON/A
Alarm I/ON/A
Serial PortN/A
Built-in MicSupport
Built-in SpeakerN/A
WIFIN/A
Network1 RJ45 10M/100M Base-TX Ethernet
Video OutputN/A
Certification
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B)
SafetyCE LVD (EN 62368-1) CB (IEC 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
ProtectionIP67 (IEC 60529)
General
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 5.5W
Power InterfaceØ 5.5 mm coaxial power plug
Dimensions (L × W × H)6.5 inches (16.51 cm)  × 2.5 inches (6.35 cm) × 2.5 inches (6.35 cm)
Weight0.39kg (0.86lb)
MaterialGraphene + Metal
Working Environment-22°F (-30 °C) ~ 140°F (60°C), Humidity: ≤95% RH (non-condensing)
Storage Environment -22°F (-30°C) ~ 140°F (60°C), Humidity: ≤95% RH (non-condensing)
Surge Protection4KV
Reset ButtonN/A

Additional information

Weight20 lbs
Dimensions17 × 15 × 10 in

Brand

NDAA

NDAA-compliant security products help organizations meet federal procurement requirements for covered telecommunications and video surveillance equipment. Section 889 of the FY2019 National Defense Authorization Act restricts federal procurement and contracting involving certain covered equipment and services. Collsam Security offers government security cameras, compliant NVRs, government security equipment, networking products, access control equipment, and surveillance accessories for professional applications. Government security cameras support federal, state, local, education, healthcare, transportation, and critical infrastructure surveillance projects. Compliant NVRs provide recording, storage, playback, and management for compatible IP camera systems. Government security equipment is available from Collsam Security for professional installations, system upgrades, and government-related security projects.
NDAA-compliant security products at Collsam Security
NDAA-Compliant Security SolutionsNDAA compliance is an important consideration for many federal, state, local government, education, transportation, healthcare, and critical infrastructure security projects.Section 889 RequirementsSection 889 restricts federal agencies from procuring or contracting for systems that use covered telecommunications equipment or services as a substantial or essential component, unless an applicable exception or waiver applies.NDAA-Compliant Security CamerasSecurity cameras identified as NDAA compliant can support government and commercial surveillance projects that require equipment sourced outside the covered categories addressed by Section 889.NDAA-Compliant NVRsNDAA-compliant network video recorders provide recording, storage, playback, and surveillance management for compatible IP camera systems.Government Security EquipmentGovernment security projects may require additional product documentation, manufacturer verification, contract clauses, and agency-specific procurement review.Professional Surveillance SystemsNDAA-compliant equipment can support surveillance systems for government buildings, schools, utilities, transportation facilities, healthcare locations, commercial properties, and critical infrastructure.NDAA Products at Collsam SecurityCollsam Security offers security products for customers seeking NDAA compliant surveillance and security solutions. Product eligibility should be confirmed for the specific procurement, contract, and agency requirements before purchase.

Uniview

Uniview security cameras include IP surveillance cameras for homes, businesses, and large video security projects. Available styles include bullet, turret, dome, panoramic, and PTZ models. These cameras support indoor, outdoor, and low-light monitoring. Uniview NVR systems serve as video surveillance recorders for compatible network cameras. Selected hybrid DVR models also support several analog video formats. Installers can pair Uniview security cameras with recorders, storage drives, PoE switches, mounting brackets, and junction boxes. IP surveillance cameras may include infrared light, full-color night viewing, wide dynamic range, audio, and remote access. Some models can also identify people or vehicles. Uniview NVR systems come in several channel counts and storage sizes. Choose video surveillance recorders based on camera support, resolution, bandwidth, recording schedules, and storage needs. Product features vary by model. Confirm system support before buying.
Uniview security cameras and NVR systems are available at Collsam Security

Uniview Professional Video Surveillance

Uniview develops professional video-surveillance products for homes, stores, offices, warehouses, schools, industrial facilities, and enterprise environments. The product range supports new installations, system expansions, and replacement projects.

Network and Analog Security Cameras

Available camera styles include:
  • Bullet cameras
  • Turret cameras
  • Dome cameras
  • PTZ cameras
  • Panoramic and multi-sensor cameras
  • Thermal cameras
  • Wireless cameras
  • Analog HD cameras
  • Full-color and low-light cameras
  • Active-deterrence cameras
Camera features vary by model. Options may include infrared illumination, full-color night imaging, wide dynamic range, motorized lenses, audio, smart motion detection, human and vehicle classification, weather-resistant housings, and Power over Ethernet.

Network and Digital Video Recorders

Uniview recorders are available for small, medium, and large surveillance installations. Product options include network video recorders for IP cameras and hybrid digital video recorders for compatible analog and network cameras.Recorder selection should consider:
  • Required camera channels
  • Camera resolution
  • Incoming bandwidth
  • Hard-drive capacity
  • Recording schedule
  • Required retention time
  • PoE port requirements
  • Display outputs
  • Remote-access requirements
  • Supported analytics

Video Storage and Transmission

Compatible system components may include surveillance storage, disk enclosures, network switches, cables, wireless transmission equipment, and other networking products. Always verify the maximum storage capacity and compatible hard-drive models supported by the recorder.

Mounts and Installation Accessories

Uniview installation accessories include junction boxes, wall mounts, pole mounts, corner mounts, pendant mounts, extension pipes, weather-resistant cable seals, and recorder accessories. Select accessories according to the exact camera or recorder model.

System Compatibility

Confirm camera, recorder, firmware, storage, mounting, power, and network compatibility before installation. Features and specifications vary between product series and models.Uniview security cameras, recorders, storage products, and installation accessories are available at Collsam Security.
