Tr-PIGTAIL-TB-F
Original price was: $7.90.$5.50Current price is: $5.50.

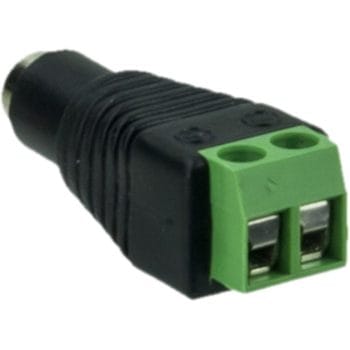

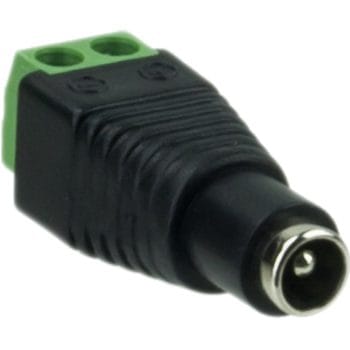

10 Pack TR-PIGTAIL-TB-F Power Pigtail Female with Terminal Block
- DC 2.5 (internal) x 5.5 (external) mm female
- Terminal Block 2 pin
- Positive pole inside, negative pole outside
- 5.0 mm pitch
- Description
- Product Documents
- Additional information
- Collsam Brands
- Reviews (0)
Description
TR-PIGTAIL-TB-F CCTV Camera Power Connector Female with Terminal Block 10 Pack
TR-PIGTAIL-TB-F used for Powering CCTV Cameras Locally
Your security camera will require a power supply. Many cameras require a 12V power supply, as connecting the wrong power supply may void your warranty.
If you choose to power your camera locally, you will not require a DC power cable. You can simply connect your PSU directly to your camera’s DC fly lead and plug the PSU into a power socket close to where your camera is sited. The advantage of this is you do not have to run a separate power lead as well as your RG59 cable. This can save on costs, particularly on long cable runs, however there are drawbacks to powering your cameras locally.
Powering CCTV Cameras Remotely
DC power TR-PIGTAIL-TB-F pigtail is used to connect your security cameras to your power distribution system or power adapter. It features a male coaxial power plug on one end to two bare wires on the other. 6 inch (15.24 cm) connector for CCTV camera power.
You may want all your cameras to be powered from the location your DVR is sited. For example, a shop premises may require all cables to lead to a secure back office where they cannot easily be disconnected. The easiest solution would be to use a RG59+2 composite power and video cable, also known as a shotgun cable. This is two small cables fused, one carries the video signal and the other carries the power. This type of cable saves time and money and can be easily installed for any application.
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 5 × 5 × 2 in |
Brand
Telpix
Telpix Video Surveillance Equipment
Telpix develops security cameras, digital video recorders, network video recorders, lenses, mounts, connectors, and supporting CCTV equipment. Available products can be used for residential security, retail monitoring, office surveillance, warehouses, parking areas, and other compatible video security applications.The correct equipment depends on the existing camera technology, required resolution, number of channels, recording capacity, installation environment, and remote access requirements.Security Cameras
Available camera styles may include bullet, dome, turret, eyeball, box, indoor, and weather-resistant outdoor models. Depending on the model, cameras may provide infrared night vision, fixed or varifocal lenses, day-and-night operation, motion detection, image adjustment, and HD video output.Before selecting a camera, confirm:- Video technology and recorder compatibility
- Supported resolution
- Indoor or outdoor installation
- Fixed or varifocal lens
- Required viewing angle
- Infrared illumination distance
- Power requirements
- Mounting location
- Weather-resistance rating
- Cable and connector type
DVR and Hybrid Recording Systems
Telpix recording systems provide centralized live viewing, recording, playback, search, backup, and system management. Available recorders may support four, eight, sixteen, or more camera channels.Compatible hybrid models can work with several video formats, depending on the recorder. These may include standard analog, AHD, TVI, CVI, and selected IP-camera inputs. Features vary by model and may include HDMI and VGA outputs, USB backup, motion recording, remote access, PTZ control, mobile viewing, and internal SATA hard-drive storage.Always verify the recorder’s supported camera formats, resolution, channel capacity, hard-drive limits, compression type, mobile application, and network requirements.IP Cameras and NVR Equipment
Selected Telpix IP cameras and network video recorders support video transmission through compatible Ethernet networks. Available equipment may provide PoE connectivity, megapixel resolution, remote configuration, network recording, and mobile access.Network compatibility, bandwidth, PoE requirements, supported protocols, firmware, and recorder compatibility should be confirmed before installation.CCTV Lenses and Mounting Hardware
Telpix lenses may support fixed or adjustable fields of view for compatible box cameras and other surveillance equipment. Camera mounts, brackets, housings, and ceiling-mounting hardware help position compatible cameras for the required viewing area.Choose lenses and mounting hardware based on the camera body, sensor size, mounting surface, viewing distance, environmental conditions, and required field of view.Connection and Power Accessories
Available installation hardware may include:- BNC connectors
- Compression connectors
- DC power plugs
- Power pigtails
- Terminal-block connectors
- Camera power supplies
- Video cables
- Ethernet connectors
- Camera mounts
- Protective housings
- Cable-termination tools
Selecting Telpix Equipment
Consider the following factors:- Existing camera and recorder technology
- Required image resolution
- Number of camera channels
- Indoor or outdoor use
- Night-vision requirements
- Recording duration
- Hard-drive capacity
- Local and remote viewing
- Mobile-device compatibility
- Cable distance and connection type
- Power-supply requirements
- Replacement-part compatibility
