SBD-140PMW
Original price was: $50.00.$31.85Current price is: $31.85.

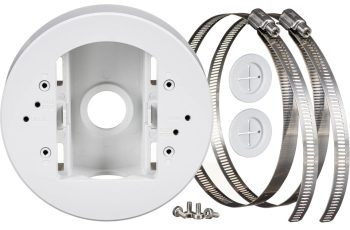

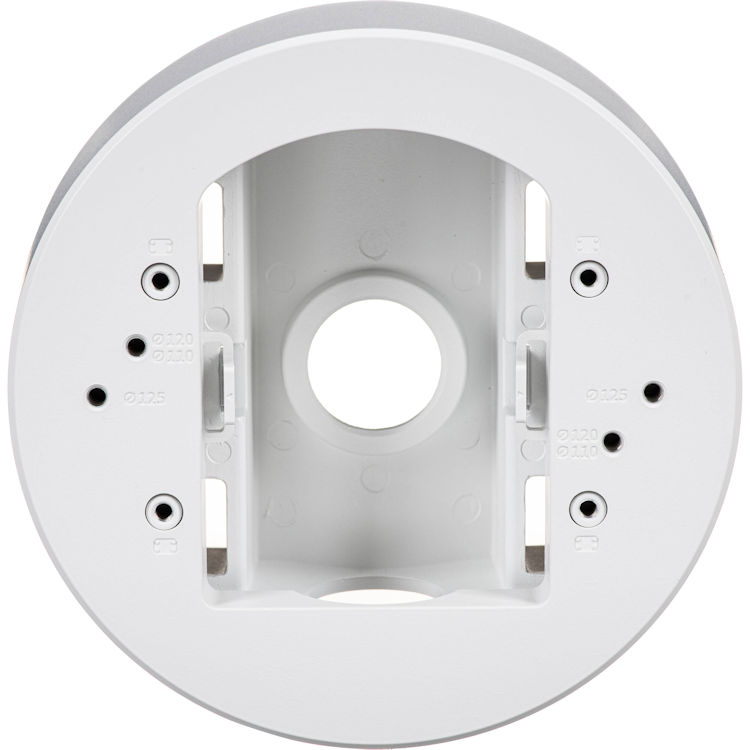

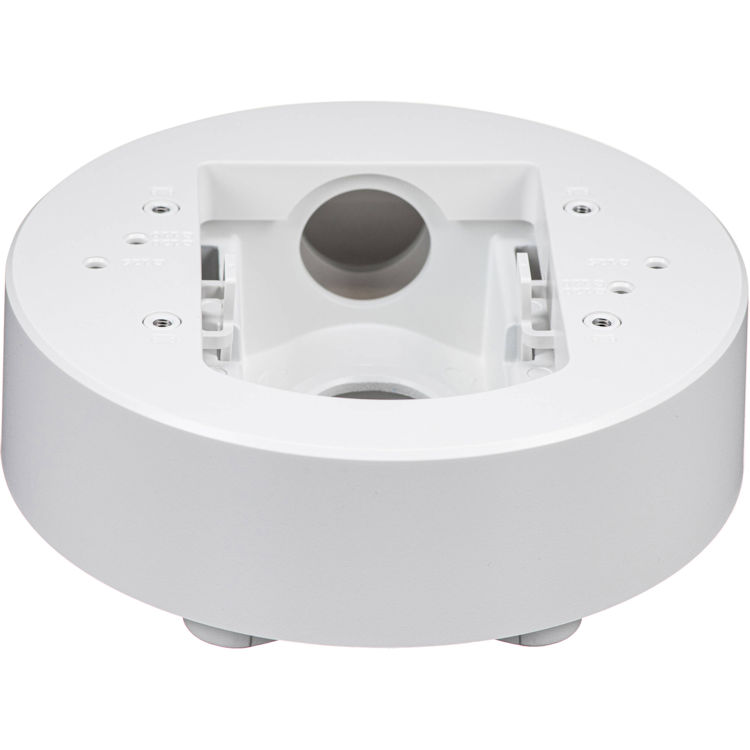

Hanwha Vision SBD-140PMW Pole Mount Base (White)
- Pole Mount
- Made of Aluminium
- White Color
- Compatible with: QNV-C8083R/C9083R, QNV-C8011R/C8012/C9011R, QND-6012R/ 6022R/6082R, QND-7012R/7022R/7082R, QNE-8011R/8021R, LND-6012R/6022R/6072R, ANE-L6012R/L7012R.
- Description
- Product Documents
- Specifications
- Additional information
- Collsam Brands
- Reviews (0)
Description
The Hanwha Vision SBD-140PMW is a rugged, outdoor-rated pole mount base engineered to provide a secure and professional installation solution for select Hanwha Techwin network security cameras. Secure attachment to vertical columns or piping is the primary objective of this item. As a result, it offers dependable support in commercial surveillance environments. This is ideal where stability, durability, and a clean appearance are essential.
Finished in a crisp white RAL9003 color, the Hanwha Vision SBD-140PMW blends seamlessly with compatible Hanwha camera housings and outdoor security hardware. Furthermore, its understated design helps maintain a polished, cohesive look on building exteriors, parking structures, and other monitored facilities. It also maintains this look on campuses. It does so without drawing unnecessary attention.

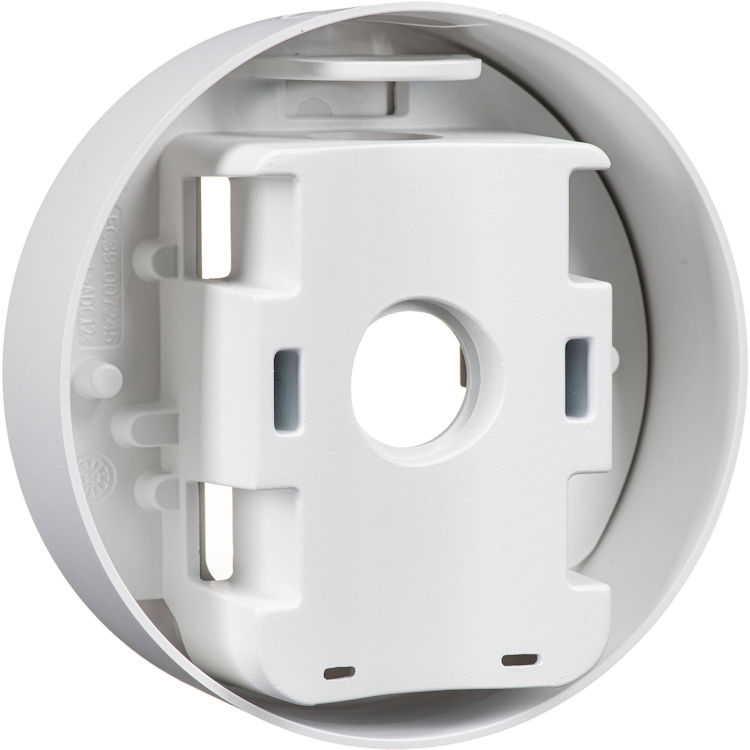

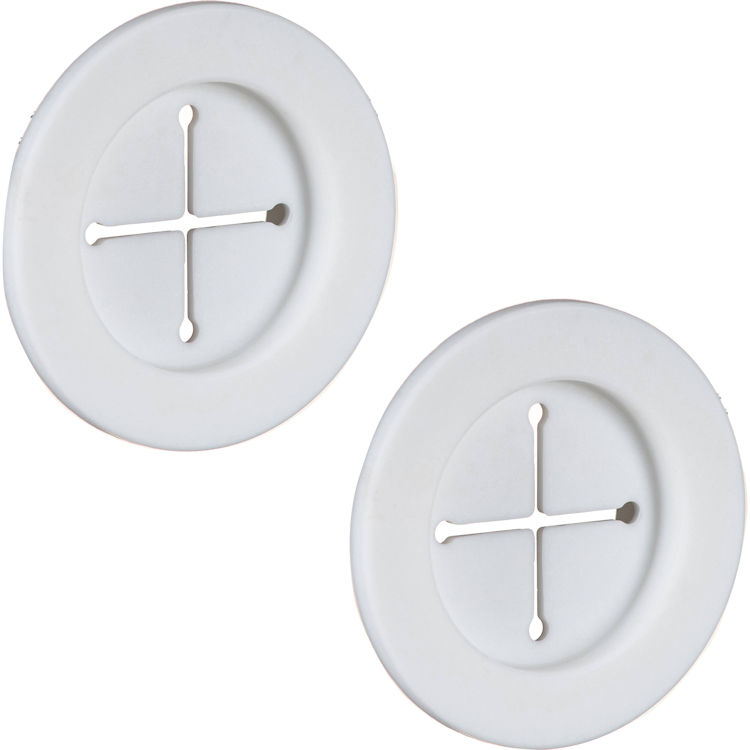

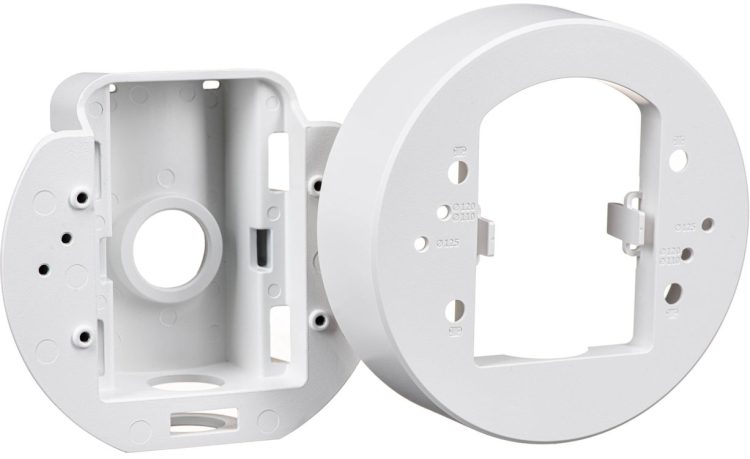

Built for long-term performance, this mount features a sturdy aluminum core body paired with a durable plastic outer cap. The combination delivers excellent weather resistance and structural strength. This makes it well-suited for demanding outdoor conditions while helping protect the installation from the elements.
Moreover, it is threaded to accommodate a 0.75-inch M25 conduit opening that is situated at the base. Therefore, it allows for cleaner and more weatherproof cable routing. The bracket is designed to be easy to assemble and compatible, with TR20 sizing for camera attachment screws and TR30 formatting for the pole straps.
The Hanwha Vision SBD-140PMW is a pole mount base that is natively compatible with several Hanwha camera families. These include the QNV-C Series, QND Series, QNE and LND Series, and ANE Series. It is also fully certified to cULus, EAC, FCC, and NDAA standards. As a result, the SBD-140PMW offers a trusted mounting option for security projects that require compliance, durability, and a streamlined installation profile.
| Color | White |
| Material | Core: Aluminum / Cap: Plastic |
| RAL code | RAL9003 |
| Product dimensions / weight | ø 5.79 inches (14.71 cm) x 1.99 inches (5.05 cm) / 0.75 lb (0.34 kg) |

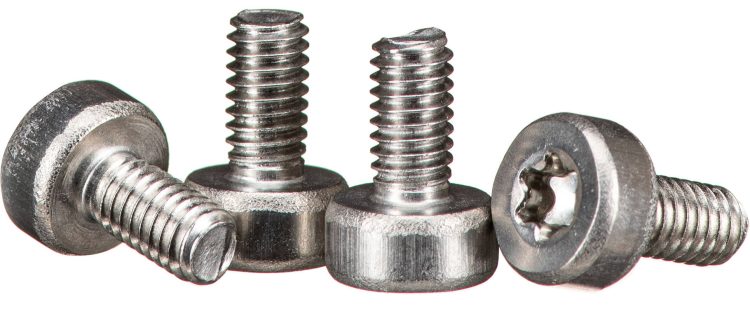

| Mount Screw size | TR20 (for Camera), TR30 (Steel Strap) |
| Conduit hole | 19.1mm(3/4”) (M25) |
| Supported products | QNV-C8083R/C9083R, QNV-C8011R/C8012/C9011R, QND-6012R/22R/72R/82R, QND-7012R/22R/82R, QNE-8011R/21R, LND-6012R/22R/72R, ANE-L6012R/L7012R |
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 8 × 8 × 5 in |
