SBP-140CMT
Original price was: $160.00.$107.95Current price is: $107.95.
Hanwha SBP-140CMT Ceiling Mount
- Four mounts per pack
- White polycarbonate and aluminum
- 15, 25 and 38 mm T-bars
- 140 mm diameter; 27.5 mm height
- 2.5 kg maximum load per mount
- NDAA compliant
- Description
- Product Documents
- Specification
- Additional information
- Collsam Brands
- Reviews (0)
Description
The Hanwha SBP-140CMT ceiling mount provides a mounting point for compatible cameras on a tile ceiling grid. This package contains four mounts for larger projects. Also, each unit combines a white polycarbonate plate with aluminum rail parts. The RAL9003 finish matches a wide range of white indoor camera housings.
The SBP-140CMT ceiling mount has a nominal diameter of 140 mm and a height of 27.5 mm. Moreover, its compact profile keeps the mounting point close to the ceiling. Each mount weighs 108 g and supports a maximum load of 2.5 kg, according to Hanwha’s mechanical specifications.
For installation, the manual shows settings for T-bar widths of 15, 25 and 38 mm. It also illustrates mounting positions for several camera sizes. Use the provided screws and follow the correct fixing pattern. If you need to move the mount, remove it fully before fitting it again.
The SBP-140CMT ceiling mount supports the three QNV camera models named in the current datasheet. In addition, Hanwha’s product page lists selected QND, QNF, LND, QNE and ANE models. Check your exact camera model and the required mounting pattern before ordering. However, similar housing sizes alone do not confirm compatibility.

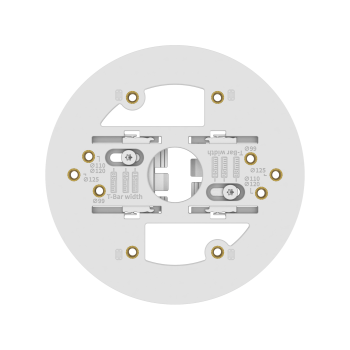

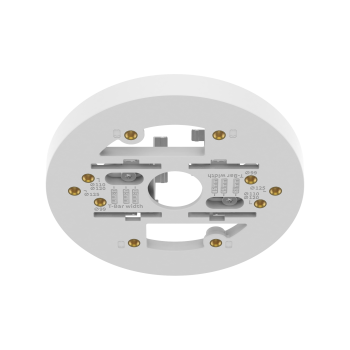

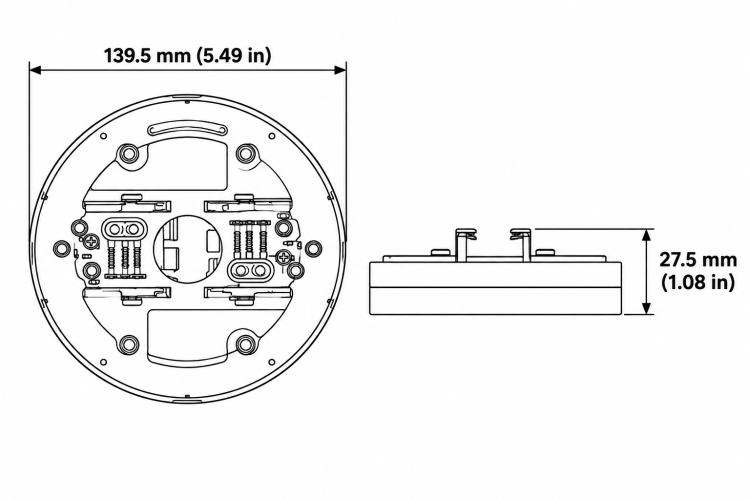

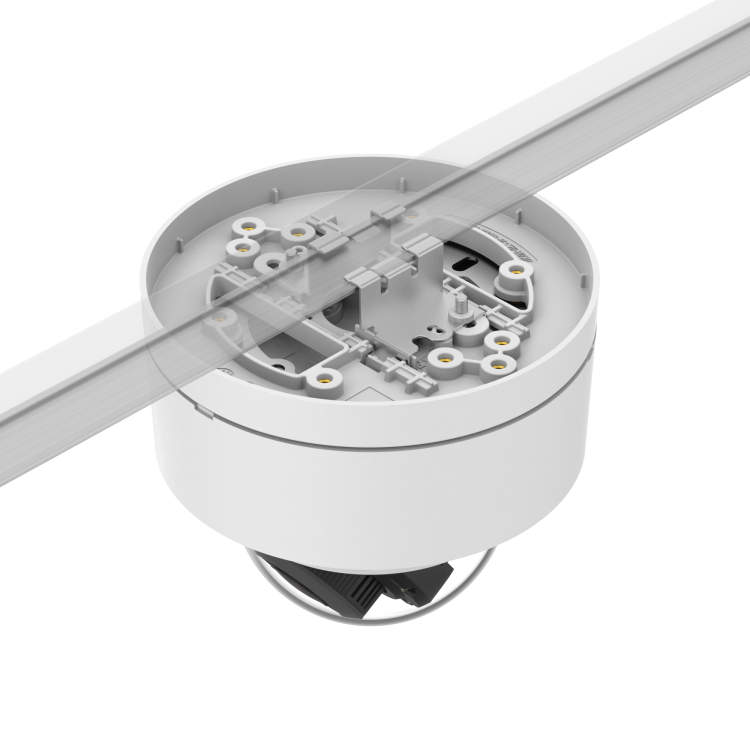

The gallery shows the mount face, an angled view and a close installation example. The camera and ceiling rail in that example illustrate use; they are not the mounts supplied in this package. Also, the dimension drawing makes it easier to check clearance for your project.
Finally, review the SBP-140CMT ceiling mount specifications below and download the attached official datasheet from Product Documents. These details help you plan the camera positions and check the supporting ceiling grid. Contact Collsam Security for help matching compatible mounting accessories to your installation.
| Manufacturer | Hanwha Vision |
|---|---|
| Model / MPN | SBP-140CMT |
| Product type | Tile grid ceiling mount |
| Package quantity | 4 mounts |
| Material | Plate: polycarbonate (PC); rail parts: aluminum |
| Color | White, RAL9003 |
| Nominal dimensions (each) | Ø140 × 27.5 mm (Ø5.51 × 1.08 in) |
| CAD body diameter | 139.5 mm (5.49 in) |
| Weight (each) | 108 g (0.238 lb) |
| Maximum load (each) | 2.5 kg (5.51 lb) |
| Mount screw specification | TR20 |
| T-bar width settings | 15, 25 and 38 mm; follow the installation manual |
| Operating temperature / humidity | -10°C to +45°C; 5–90% RH, non-condensing |
| Storage temperature / humidity | -30°C to +60°C; 0–90% RH |
| Current datasheet supported cameras | QNV-C8011R, QNV-C8012, QNV-C9011R |
| Additional models listed by Hanwha | QND-6011, QND-6021, QND-8011, QND-8021, QNF-8010, QNF-9010, QND-6012R, QND-6022R, QND-6082R, LND-6012R, LND-6022R, LND-6072R, QNE-8011R, QNE-8021R, ANE-L6012R, ANE-L7012R, ANE-L7012L, QNV-C8083R, QNV-C9083R, XND-8082RV, XND-9082RV |
| Compatibility note | Verify the exact camera and mounting-hole combination. Camera and ceiling rail shown in the installation example are not included. |
| Compliance | NDAA compliant |
| GTIN | 8801089223845 |
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 8 × 8 × 7 in |
Brand
Hanwha Vision
