D1812
Price range: $2,514.07 through $2,776.38
The D1812 hybrid upgrade includes numerous high-tech features, remotely configurable via the free DoorBird.
- 1080p camera with ultra-wide-angle 180 hemispheric lenses and night vision
- Free Cloud recording
- RFID reader, 13.56 MHz with MIFARE DESFire support, remotely manageable
- 4D motion sensor
- Power over Ethernet (PoE)
- Wi-Fi enabled, 2.4 GHz if a network cable is not used
- Wiegand protocol support (26, 30, 31, 34, and 44 bits)
- Illuminated keypad with up to 500 remotely manageable PIN codes
- Individual schedules, e.g., to trigger relays or smart home commands upon certain events
- Geo-fencing for automatic gate opening when returning home
- Open API for third-party integrations such as Control4, URC, RTI, Crestron, etc
- Support for NVRs such as Synology, Luma, Lilin, Qnap, and IC Realtime
SKU: D1812
Categories: Access Control, Door Access, Home And Office Automation
Tags: 2 Megapixel Lens , DoorBird, IP Video Door Station, Mifare card reading, Power over Ethernet (PoE), RFID reader, Wiegand- Description
- Attachment
- Specifications
- Additional information
- Reviews (0)
Description

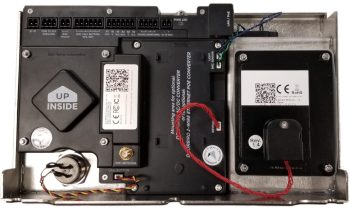

The DoorBird IP Video Door Station D1812 is a seamless upgrade for the DoorKing 1812 Classic and D1812 Plus. This innovative hybrid solution combines modern IP intercom technology with the functionality of the pre-existing DoorKing 1812 analog telephone system. With the DoorBird D1812, users can enjoy the benefits of both systems without the need for a complete overhaul.
The DoorBird D1812 is constructed from durable stainless steel and exhibits a striking appearance at any entrance. Its surface-mount housing ensures easy and secure installation on any surface. The keypad is easy to use and secure, and the built-in Wi-Fi/LAN connection is stable and reliable.
The DoorBird D1812 is heard both inside and outside the door. This feature is perfect for monitoring deliveries, granting access to visitors, and even screening unwanted guests. Additionally, the ultra-wide angle lens provides a panoramic view of the area, ensuring that no detail goes unnoticed.
Users can get remote access and control with the DoorBird app on their phones or tablets. The program can also send video and audio in real-time, as well as record and save footage of people visiting the site for later inspection. Modern homes and businesses can benefit from the DoorBird D1812’s ability to integrate with existing home automation systems.
There is a revolutionary product that brings together the best of both worlds – the traditional analog telephone system and the contemporary IP intercom technology. Anyone can upgrade their existing DoorKing 1812 system while maintaining its functionality with the sleek design and tough build. Trust DoorBird to provide a reliable, secure, and convenient solution for all your intercom needs.
| GENERAL | |
| Compatibility | DoorKing® 1812 Classic (Flush & Surface Mount), DoorKing® 1812 Plus (Flush & Surface Mount), revisions “1871-010” or “1970-010” |
| Front panel | 0.078 inch (0.2 cm), brushed stainless steel V2A, V4A Call button |
| Call button | Stainless-steel button with illuminated LED ring |
| Power supply | 12 – 15 DC (min. 15 W) or Power over Ethernet (PoE 802.3af Mode-A) |
| Keypad Module | • Individual PIN codes • Individual events (e.g., switch a relay, HTTP(s) requests) • Individual schedules • Up to 500 PIN codes manageable |
| Weight | 3.747 lb (1.7 kg) |
| Connectors | • RJ45, for LAN/PoE • 2x bistable relays, max. 30 V DC/V AC, 3 A, e.g., for electric door opener • Wiegand output (26 bit and 34 bits) • External input, e.g., for external door opener button • 12 – 15 V DC |
| Protection class | IP65, IK08 |
| Approvals | CE, UKCA, FCC, IC, RoHS, REACH, WEEE, Wi-Fi CERTIFIED™ |
| Dimensions H × W × D | 5.93 inches (15.06 cm) x 9.76 inch (24.79 cm) x 2.89 inch (7.34 cm) |
| Operating conditions | -13 °F (-25 °C) to 131 °F (55 °C) Humidity 10 to 85% RH (non condensing) |
| Scope of delivery | 1x Power supply unit (mains adaptor) with country-specific adaptors (100 – 240 V AC to 15 V DC) 1x Quick-start guide with Digital Passport 1x Installation manual 1x Small parts |
| Warranty | 24 months |
| CURRENT SYSTEM REQUIREMENTS | |
| System requirements | Mobile device: Newest iOS on iPhone/iPad, the newest Android on Smartphone/Tablet Internet: High-Speed Landline Broadband Internet connection, DSL, cable or fiber optic, no socks or proxy server Network: Ethernet Network, with DHCP |
| Camera lens should be at a min. height of 145 cm (57 in). Before the installation, please determine your optimal installation height. | |
| VIDEO | |
| Camera | HDTV 1080p, dynamic (VGA – HDTV) |
| Lens | High-end ultra-wide-angle hemispheric lens 180° (D), 150° (H), 82° (V), straightened, IR-capable |
| Night-vision | Yes, light sensor, automatic IR-cut filter, IR-LEDs (850 nm) |
| AUDIO | |
| Audio components | Speaker and microphone, echo and noise cancellation (AEC, ANR) |
| Audio streaming | Two-way |
| NETWORK | |
| Ethernet | PoE 802.3af Mode-A, 10/100 Base-T |
| Wi-Fi | N/A |
| Supported protocols | HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP, TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF (RTP [RFC-2833], SIP INFO [RFC-2976]), STM |
| MOTION SENSOR | |
| Type | Active |
| Detection angle | 80° (H), 50° (V) |
| Technology | 4D. Based on multiple integrated sensors and algorithms, e.g., Radio Frequency Energy (RFE) |
| Configuration | Via App, e.g. • Range 3.3 ft (1.01 m) – 19.7 ft (6 m) • Movement direction (coming, leaving, both) • Individual events (e.g., switch a relay, push notification, SIP call, HTTP(s) requests) • Individual schedule |
| RFID READER 13.56 MHZ | |
| Type | Active Reader Passive Tag (ARPT) system |
| Standard | ISO 14443A. MIFARE® Classic®. MIFARE® DESFire® EV1, MIFARE® DESFire® EV2, NFC. |
| Range | 0 – 3 cm, depends on environment |
| Antenna | Internal |
| Compatible Transponder | RFID transponder key fobs, sold separately, see www.doorbird.com/buy Up to 500 tags manageable |
| Configuration | Via App, e.g. Tag (add, delete) Individual events (e.g., switch a relay, push notification, SIP call, HTTP(s) notification) Individual schedules |
| WIEGAND | |
| Protocols | 26, 30, 31, 34 and 44 bit |
| Maximum cable length | 492 ft (149.96 m) |
| Highlights | Galvanic isolation of the Wiegand output signals, max 5 mA per output (data line) Configuration |
| Configuration | Via App, e.g., protocol and interface on/off |
| INTEGRATED WIRELESS MODULES | |
| Wi-Fi | N/A |
| Bluetooth | Bluetooth Low Energy (BLE), compatible with DoorBird Bluetooth Key fob Remote A8007 |
| RFID | 13.56 MHz |
| Sensor | 24 GHz, can be disabled |
Additional information
| Weight | 10 lbs |
|---|---|
| Dimensions | 6 × 12 × 5 in |
| Finish | Brushed Stainless Steel V2A., Brushed Stainless steel V4A (salt-water and grinding dust resistant). |
