RD1PN
Original price was: $159.99.$108.95Current price is: $108.95.

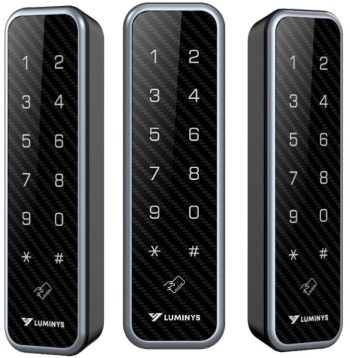

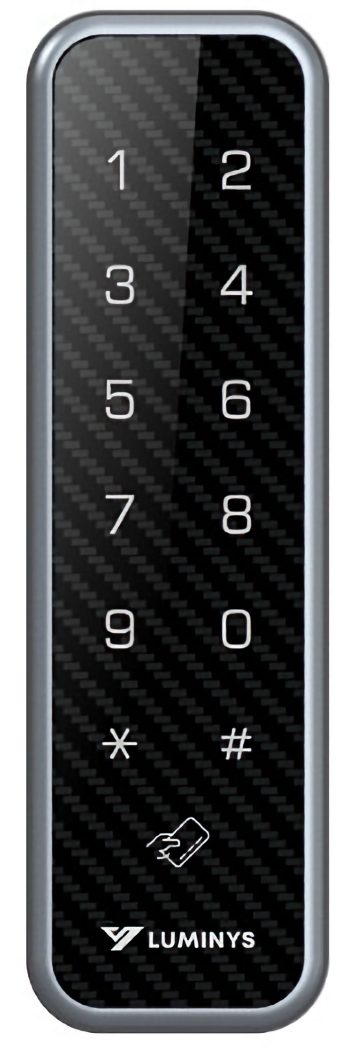

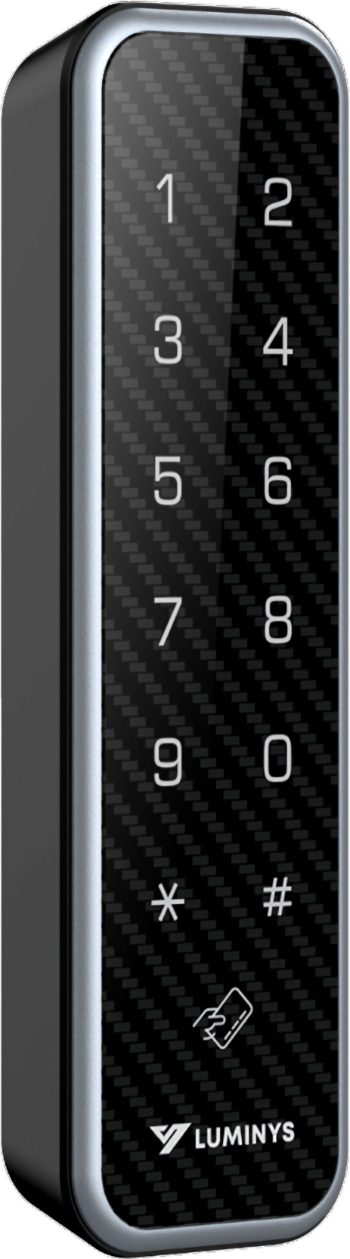

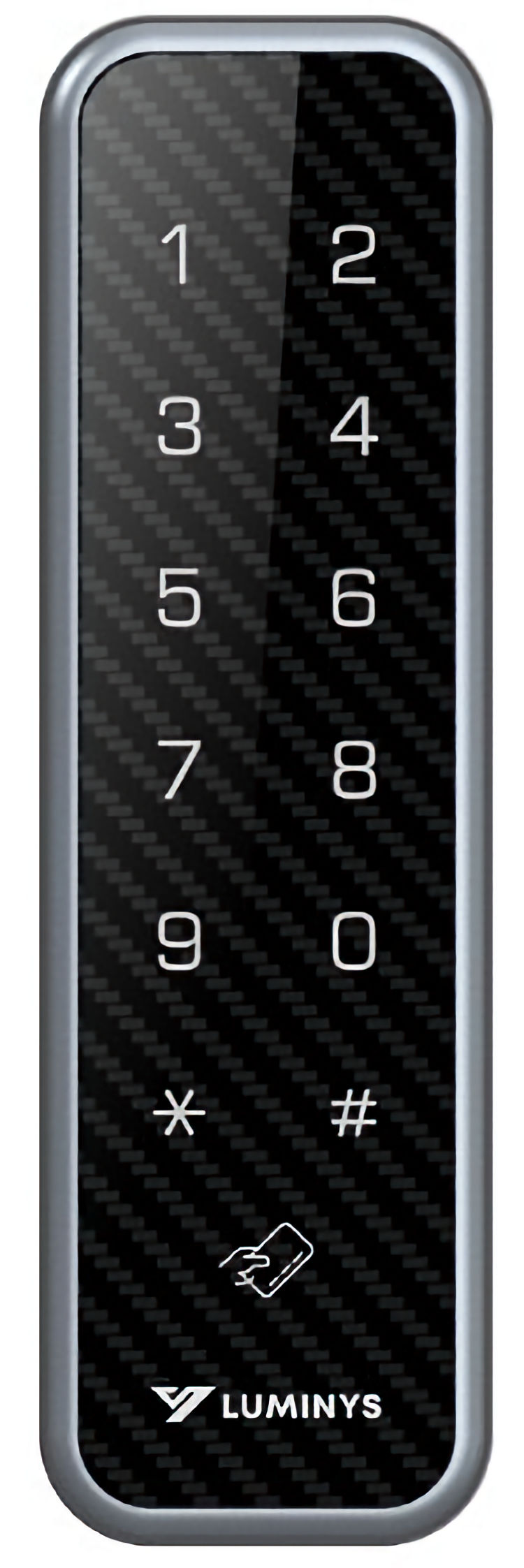

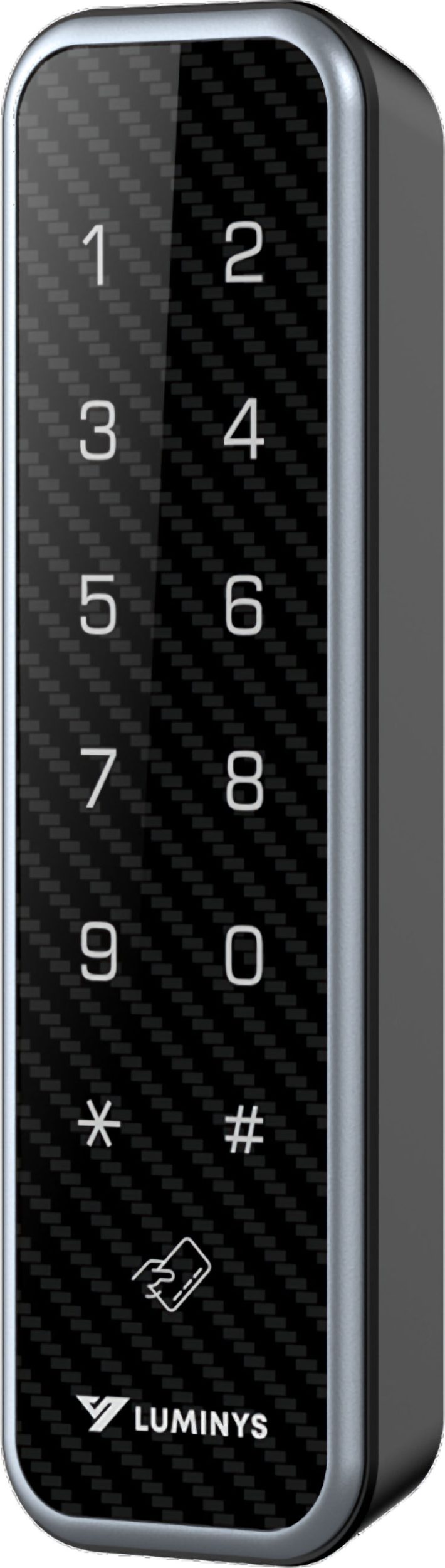

Luminys RD1PN Mullion Keypad Card Reader
- Mullion Mount Housing With Indicator Light and Buzzer
- Bluetooth Reading and MIFARE (IC) Card Reading
- RS-485/Wiegand/Bluetooth Communication Protocols
- IP66 Protection For Indoor and Outdoor Use
- Supports Contactless MIFARE (IC) Card Reading
- Equipped with Anti-Tampering Alarm
- Surface Mount Design
- NDAA Compliant
- Description
- Product Resources
- Additional Information
- Speciifications
- Collsam Brands
Description
The Luminys RD1PN Mullion Keypad Access Reader is an essential component for any security system. Designed for narrow surface mounting, this adaptable device is an ideal choice for any entry point. It supports multiple authentication methods.
This allows you the flexibility to choose the one that works best for your needs. A secure area can be accessed with this reader via a keypad, Bluetooth reader, or IC (MagSafe) card reader.
One of the key features of the Luminys RD1PN Mullion Keypad Access Reader is its compatibility with different communication protocols. This device uses RS-485, Wiegand, and Bluetooth communication protocols. This makes it easy to integrate with various access control systems. It ensures seamless and efficient communication between the access reader and your security system. This allows for smooth operation and enhanced security.
It’s made so that the Luminys RD1PN Mullion Keypad Access Reader can work in any weather. With an IP66 ingress protection rating, this device is suitable for both indoor and outdoor installations. Dust and heavy rain can’t get to it, so it will last and work well in any setting. This means that you can trust this access reader to work flawlessly, even in harsh weather conditions.

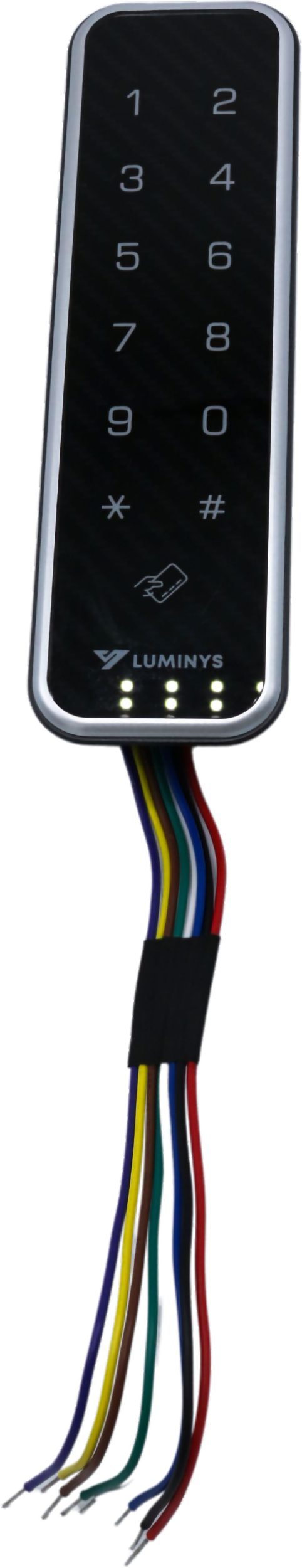

In addition to its strong and durable build, the Luminys RD1PN Mullion Keypad Access Reader also boasts user-friendly features. It includes an integrated indicator light (LEDs) and a buzzer to provide real-time audio and visual feedback during user interactions. The process is expedited and made simpler by this feature, which lets users know when access has been approved or denied.
Lastly, the Luminys RD1PN Mullion Keypad Access Reader is an NDAA (National Defense Authorization Act) compliant product. This means that it meets all the requirements and standards set by the government.
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 8 × 3 × 3 in |
| Card Reading Functions | |
| Card Type | IC (MIFARE) |
| Frequency Range | 13.56 MHz |
| Maximum Transmission Power | 42 dBm at 10 m |
| Verification Method | Bluetooth, Card |
| Response Time | 0.1 s |
| Card Reading Distance | 0 inches (0 cm) to 2.0 inches (5.08 cm) |
| Buzzer | Built-In |
| Interface | |
| RS-485 | One (1) Channel |
| Wiegand | One (1) Output Channel |
| Alarm | |
| Event | Tamper |
| Electrical | |
| Power Supply | 12 VDC, 0.5 A |
| Power Consumption | • Standby: ≤ 0.9 W • Working: ≤ 1.7 W |
| Construction | |
| Net Weight | 0.2 lb (90.72 g) |
| Gross Weight | 0.44 lb (0.2 kg) |

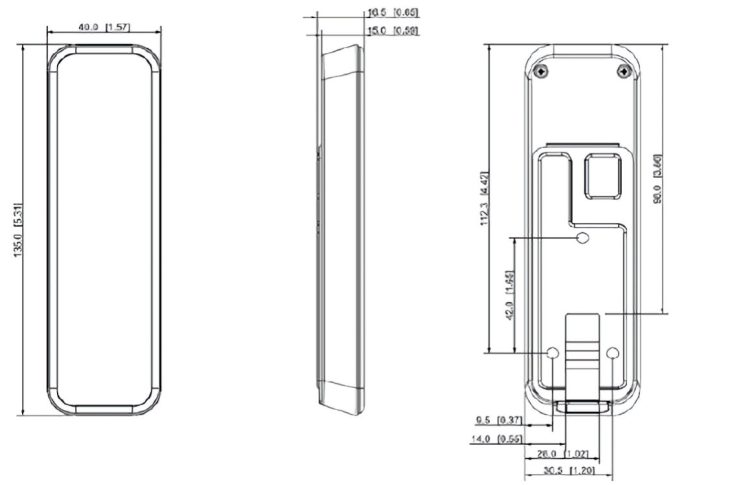

| Product Dimensions (H × W × D) | 5.3 inches (13.46 cm)× 1.6 inches (4.06 cm) × 0.6 inches (1.52 cm) |

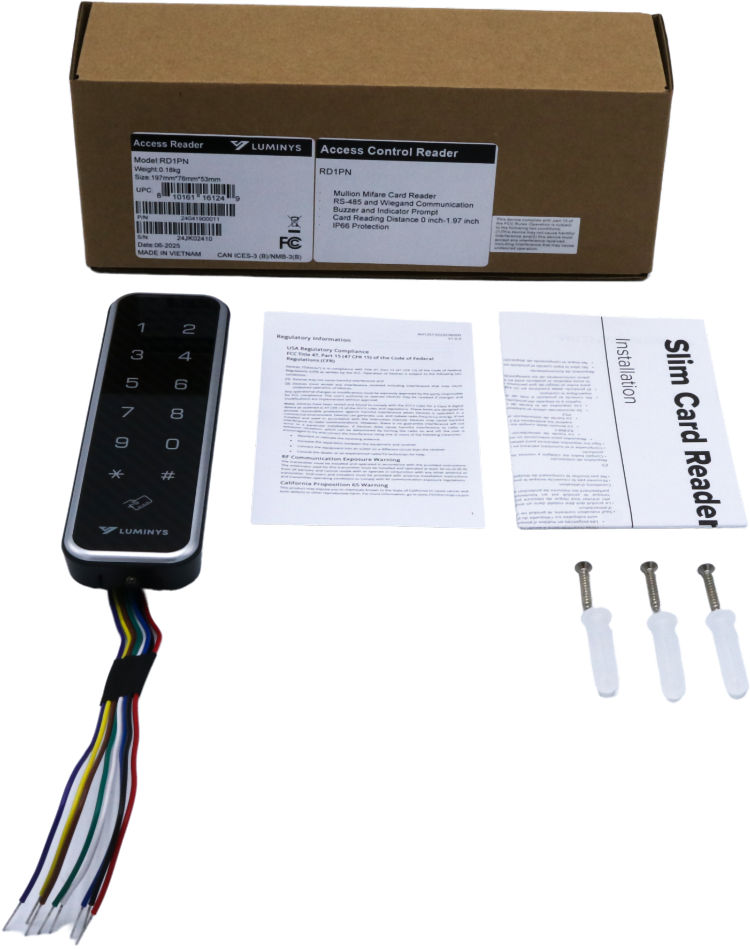

| Package Dimensions (H × W × D) | Inner Carton: 7.7 inches (19.56 cm) × 3.0 inches (7.62 cm) × 2.1 inches (5.33 cm) Outer Carton: 16.3 inches (41.4 cm) × 15.8 inches (40.13 cm) × 9.1 inches (23.11 cm) |
| Operating Temperature | 22 °F (-5.56 °C) to 158 °F (70 °C) 5% to 95% (RH), Non-Condensing |
| Protection Ratings | IP66 Ingress Protection With Silicone Sealant |
| Material | Tempered Glass and PC |
| Installation Method | Surface Mount |
| Certifications and Compliance | |
| Certifications | FCC/FCC ID, IC/IC ID |
| Compliance | NDAA |
Brand
Luminys Systems Corporation
