D1101KH-M-F
Price range: $1,556.45 through $2,582.68

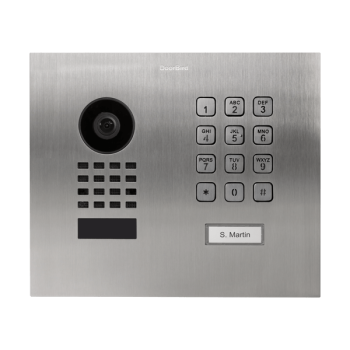

DoorBird IP Video Door Station D1101KH-M-F Modern, including flush-mounting housing
- Flush mounted
- Includes housing
- 1 call button
- Video and audio call on smartphones, tablets (iOS, Android), IP and landline phones (SIP)
- Microphone with clear voice transmission
- Night vision with Infrared LEDs
- Easy self-install. Quick installation via QR code scan.
- Motion sensor with 4D technology. Distance up to 19.69 ft (6 m) adjustable via App (interval: 3.3 ft (1.01 m)
- Works with Ethernet cable
- 12 keys, illuminated, configurable via App, e.g.
- Individual PIN codes
- Individual events (e.g., switch a relay, HTTP(s) request)
- Individual schedules
- Up to 1000 PIN codes are manageable
- Description
- Product Documents
- Specifications
- Additional information
- Collsam Brands
- Reviews (0)
Description
The DoorBird D1101KH-M-F Modern Flush-mount IP Video Intercom is the ideal intercom system for single-family homes and businesses. It’s easy to communicate with visitors at your door with one unit and one call button. Available in various finishes, this sleek and modern intercom is sure to complement any home or business exterior.
This video intercom features a flush-mounting housing, providing a clean and unobtrusive look when installed. It seamlessly blends into your home or business’s architecture, giving your property a modern and sophisticated touch. The compact design also makes it easy to install in any location, whether it be on a wall or at the entrance of a building.
One of the standout features of the DoorBird D1101KH-M-F is its LAN connection, which is PoE compatible. This means that it can be powered and connected through a single cable, eliminating the need for additional power sources. This not only simplifies the installation process but also reduces the clutter of wires and cables around your home or business.
With the ability to connect to your home or business’s internet network, the DoorBird D1101KH-M-F allows you to remotely manage and monitor your intercom. This means that you can see and communicate with visitors at your door, regardless of where you are, giving you peace of mind and added security.
You can even opt to receive notifications on your smartphone when someone presses the call button, ensuring that you never miss an important delivery or visitor.
In addition to its functionality, the DoorBird D1101KH-M-F is also built to withstand various weather conditions. It is IP54-rated, making it resistant to dust and water splashes, allowing it to function in both indoor and outdoor settings. This durability ensures that your intercom system will continue to provide reliable service for years to come.
Upgrade your home or business’s security and communication with the DoorBird D1101KH-M-F Modern Flush-mount IP Video Intercom.
| GENERAL | |
|---|---|
| Front panel | 3 mm (0.12 in) Available in brushed stainless steel V2A |

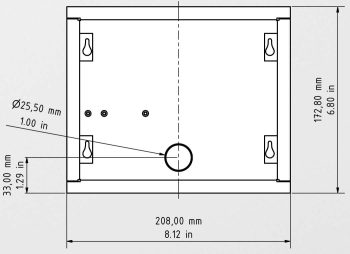

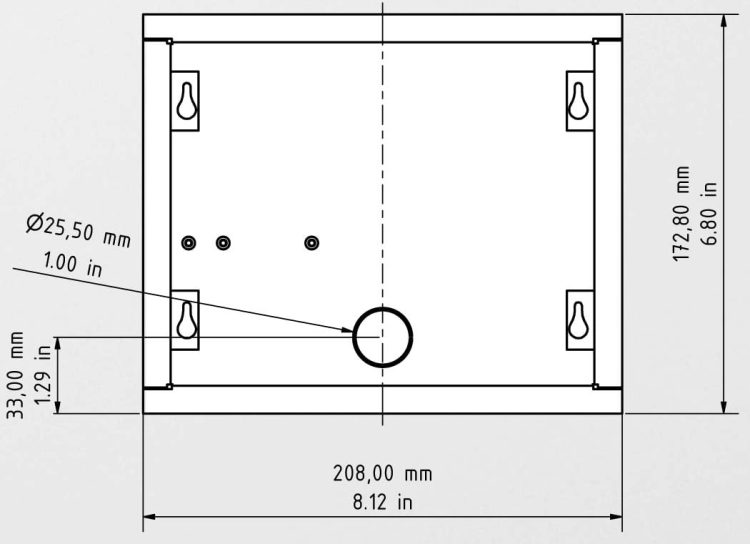

| Mounting housing (back box) | Stainless steel |
| Mounting type | Flush-mounted, Surface-mounted version sold separately |
| Call button | Plastic |
| Nameplate | Illuminated |
| Keypad Module | 12 keys, illuminated, configurable via App, e.g. Individual PIN codes Individual events (e.g., switch a relay, HTTP(s) request) Individual schedules Up to 1000 PIN codes manageable |
| Power supply | 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A) |
| Weight | 1595 g |
| Connectors | LAN/PoE (T+, T-, R+, R-) Bistable latching relay, max. 1 ~ 24 V DC/AC, 1 A, e.g., for electric door opener External input for external door opener button 15 V DC input (+, -), max. 15 W |
| Weatherproof | Yes, IP65 |
| Approvals | IP65, CE, FCC, IC, RoHS, REACH, IEC/EN 62368, IEC/EN 62471 |

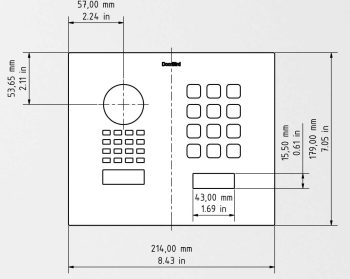

| Dimensions | 179.00 × 214.00 × 48.00 mm (H × W × D) 8.43 × 7.05 × 1.89 in (H × W × D) |
| Operating conditions | −25 to +55°C / -13 to 131°F Humidity 10 to 85% RH (non-condensing) |
| Scope of delivery | 1x Main Electrical Unit 1x Front panel 1x Flush-mounting housing (back box) 1x Power supply unit (mains adaptor) with 4 country-specific outlet adaptors (110 ~ 240 V AC to 15 V DC) 1x Screwdriver 1x Quick-start guide with Digital Passport 1x Installation manual 1x Small parts |
| CURRENT SYSTEM REQUIREMENTS | |
| System requirements | Mobile device: Newest iOS on iPhone/iPad, the newest Android on Smartphone/Tablet Internet: High-Speed Landline Broadband Internet connection, DSL, cable or fiber optic, no socks or proxy server Network: Ethernet Network, with DHCP |
| Recommended installation height | Camera lens should be at a min. height of 145 cm (57 in). Before the installation, please determine your optimal installation height. |
| VIDEO | |
| Camera | HDTV 1080p, dynamic (VGA – HDTV) |
| Lens | High-end ultra-wide-angle hemispheric lens 180° (D), 150° (H), 82° (V), straightened, IR-capable |
| Night vision | Yes, light sensor, automatic IR-cut filter, Infrared LEDs (850 NM) |
| AUDIO | |
| Audio components | Speaker and microphone, noise reduction and echo cancellation (ANR, AEC) |
| Audio streaming | Two-way, full duplex |
| NETWORK | |
| Ethernet | PoE 802.3af Mode-A, 10/100 Base-T |
| Supported protocols | HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP, TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF (RTP [RFC ~ 2833], SIP INFO [RFC ~ 2976]), STM |
| MOTION SENSOR | |
| Type | Active |
| Detection angle | 80° (H), 50° (V) |
| Range | 3.3 ft (1.01 m) ~ 19.7 ft (6 m), depends on environment, configurable in 1 m (3.28 ft) steps. |
| Technology | 4D. Based on multiple integrated sensors and algorithms, e.g., Radio Frequency Energy (RFE) |
| Configuration | Via App, e.g. Range 3.3 ft (1.01 m) ~ 19.7 ft (6 m) Movement direction (coming, leaving, both) Individual events (e.g., switch a relay, push notification, SIP call, HTTP(s) requests) Individual schedules |
| INTEGRATED WIRELESS MODULES | |
| Bluetooth | Bluetooth Low Energy (BLE), enabled with future firmware and App update |
| Sensor | 24 GHz, can be disabled |
Additional information
| Weight | 6 lbs |
|---|---|
| Dimensions | 10 × 9 × 4 in |
| Finish | Architectural Bronze, Brushed Bronze-Finish as PVD Coating, Stainless Steel, Brushed Stainless Steel V2A., Brushed Stainless steel V4A (salt-water and grinding dust resistant)., Real Burnished Brass |
