IPS302030-S

0 out of 5

( There are no reviews yet. )

Original price was: $1,069.99.Current price is: $360.95.

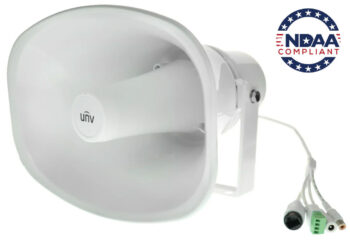

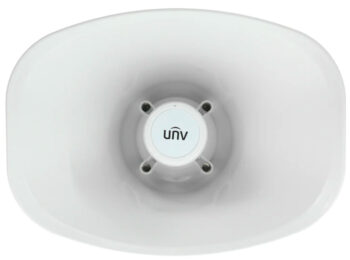

Uniview IPS302030-S Outdoor IP Horn Speaker, 30W Rated Power, 130 dBSPL, Two-Way Audio, PoE Power Supply

130dB Maximum Volume as loud as an ambulance siren for long-distance coverage
Hear and talk back through two-way audio on the UNV-Link app.
Custom audio uploads store and play MP3s, alarms, or custom voice recordings.
Uniview NVR Integration triggers alarms, announcements, or AI-driven alerts.
Power over Ethernet (PoE) simple single-cable installation
Alarm input direct wiring option for standalone setups
IP66 Weatherproof built tough for rain, dust, wind, and outdoor environments
Lightweight and durable build, easy to mount, sturdy in the field

|Uniview

SKU: IPS302030-S EAN: 6937096346825 Categories: Alarm, Home And Office Automation, IP Speakers, Siren Tags: Audio Alerters, Horn Speakers, IP Speaker, IP66 Ingress Protection, NVR integration, ONVIF, PoE (IEEE 802.3at), Speakers

Description

The Uniview IPS302030-S is the ultimate solution for outdoor security, public address, and mass notification systems. Long-distance coverage with high-quality audio is the goal of this 30W IP horn speaker. It has a maximum sound pressure level of 130 dB SPL, comparable to the loudness of an ambulance siren. This makes it the perfect choice for any outdoor location that requires a powerful and efficient audio system.

One of the standout features of the Uniview IPS302030-S is its two-way audio capability. It comes equipped with a built-in microphone and supports two-way communication. This allows users to listen to their surroundings and speak back in real-time using a mobile app or connected system.

This makes it an ideal choice for security systems. When linked cameras detect motion or an intruder, they can send out live or automated voice alerts to keep people away.

The IPS302030-S integrates seamlessly with Uniview NVRs and IP cameras, allowing for alarm-triggered broadcasts and video-audio linkage. It also supports industry-standard protocols like ONVIF, SIP, RTSP, and RTP, ensuring broad compatibility with third-party surveillance and VoIP systems. This makes it a versatile and flexible choice for various security and communication setups.

Installation is a breeze with the Uniview IPS302030-S. With Power over Ethernet (PoE, IEEE 802.3at), you can use the same cable for both data and power. It also offers alternative DC 12V or 24V power input options for added convenience. With its easy-to-use web interface, it’s a good choice for people of all skill levels.

The IPS302030-S is built to withstand harsh outdoor conditions with a robust ABS plastic construction and an IP66 Ingress Protection rating. Rain, dust, and extreme temperatures. This speaker can handle it all, making it a reliable choice for various outdoor settings such as parking lots, school campuses, industrial parks, construction sites, and warehouses.

It’s also suitable for mass notification and safety paging systems in various commercial and industrial settings, making it a versatile choice for any organization’s communication needs.

Datasheet

Download

Upgrade your security and public address systems with the Uniview IPS302030-S outdoor IP horn speaker. With 30W power, two-way audio, and PoE support, it's perfect for long-distance coverage and real-time communication. Plus, its rugged design and broad compatibility make it a top choice for any surveillance or VoIP setup. Order now for simplified installation and proactive deterrence in any environment Datasheet.

User's Manual.

Download

Quick Start Guide

Download

Speaker
Rated Power	30 W
Max. Acoustic Pressure.	130 dBSPL
Frequency Response	300 Hz to 12.5 kHz
Impedance	8 Ω
Material
Material	ABS Plastic
Network
Network Protocol	IPv4, HTTP, HTTPS, SSL/TLS, DNS, TCP, UDP, DHCP, UPnP, ARP, SSH
Interface Protocol (API)	ONVIF, RTSP, RTP, iAPI
Browser	Firefox 87+, Chrome 90+, Edge 90+, Safari 17+
Built-in Mic
Amount	1
Frequency Response	100 Hz to 8 kHz
Sensitivity	-37 dBV/Pa
Sampling Rate	8 kHz
Quantization Bits	16-bit
Audio
Broadcast	Regular Broadcast, Live Broadcast, Alarm Broadcast
Two-Way Audio	Support
Audio Compression	G.711U
Audio File Format	MP3, WAV
Audio File Size	2 KB ≤ Audio File Size ≤ 10 MB
Audio File Storage	64 MB
Audio File Number	100 (Include system built-in files )
Language
Language	38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Korean, Japanese, Latvian, Lithuanian, Persian

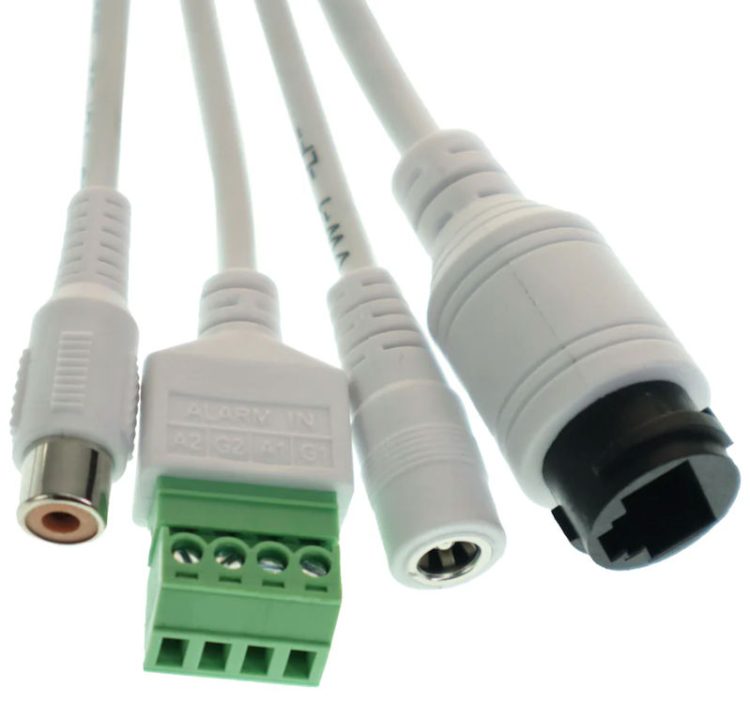

Interface
Network Interface	1 RJ45 10 M/100 M self-adaptive Ethernet Interface
Audio In	RCA (only to be used for sound amplification,cannot be used for intercom)
Alarm In	2
Power Supply	PoE (IEEE 802.3at), DC 24 V/1.4 A, DC 12 V/2.5 A
Certification
Safety	CE LVD (EN IEC 62368-1: 2020+A11: 2020), UL (UL 62368-1, 3rd Ed., Issue Date: 2019-12-13)
EMC	CE-EMC (EN 55032: 2015 + A1: 2020, EN 61000-3-3: 2013 + A1: 2019, EN IEC 61000-3-2: 2019 + A1: 2021, EN 55035: 2017 + A11: 2020), FCC (FCC CFR 47 part 15 B, ANSI C63.4-2014)
Environment	CE-RoHS (2011/65/EU; (EU) 2015/863): WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
Compliance
NDAA Compliant	Support
Working Environment
Working Temperature	-22°F (-22°C) to 131°F (131°C)
Working Humidity	≤ 90% RH (non-condensing)

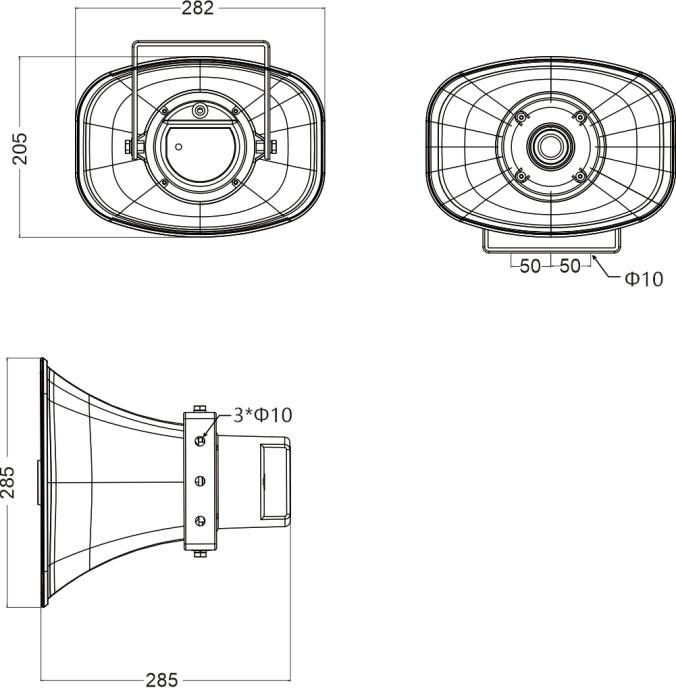

Dimensions
Dimensions	11.1 inches (28.19 cm)× 8.1 inches (20.57 cm) × 11.2 inches (28.45 cm)
Approval
Protection	IP66

Additional information

Weight	7 lbs
Dimensions	15 × 11 × 11 in
