DO-614V
Price range: $59.95 through $99.95

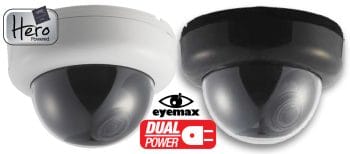

Eyemax DO-614V SUPERDOME® 650TVL Indoor Dome Camera with Auto-Iris Varifocal Lens and Dual Power
- 1/3 INCH SONY SUPER HAD CCD II
- High Resolution (650 TVL) / High Sensitivity
- 0.1Lux at F1.2 (Color) 0.0001Lux (Sense up x256) WDR (Long and Short exposure) Function
- OSD Controlled
- True Day and Night (ICR)
- 3DDNR
- HLM Motion (240 Zone) Privacy
- Easy Installation
- 3 Axis DC Auto IRIS Varifocal Lens 2.8~12mm
- DC Auto IRIS & TDN V/F Lens 2.8~12mm
- Description
- Product Documents
- Additional information
- Collsam Brands
- Reviews (0)
- SPECIFICATIONS
Description
The Eyemax DO-614V Camera is a top-of-the-line indoor dome camera designed to provide high-quality surveillance for your home or business. With a 650TVL resolution, this camera delivers crystal clear images and videos. You can easily adjust the camera’s zoom and focus with its auto-iris varifocal lens, so you can capture specific spots.
This camera can sense movement and tell you right away if something is suspicious. This feature is especially useful for monitoring high-traffic areas or sensitive locations, ensuring that no unauthorized access goes unnoticed. The 1/3” SONY Super HAD CCD II resolution enhances the camera’s sensitivity to light, making it perfect for low-light situations.
The Eyemax DO-614V Camera employs a 2:1 interlace scanning technique to combine two fields into a single frame of video. This results in smoother and more fluid motion, allowing for a more accurate representation of events. This camera has clear and sharp pictures that show everything clearly. It has a signal-to-noise ratio of over 52 decibels. The video is smooth and steady because it has a horizontal frequency of 15.734KHz and a vertical frequency of 59.94KHz.
This camera also features a CVBS video output of 1.0Vp-p / 75ohm, allowing for easy integration with other surveillance systems. The DO-614V Camera comes in two colors: Black or White.
In conclusion, the Eyemax DO-614V Camera is a reliable and high-performance indoor dome camera that provides exceptional surveillance capabilities. Its advanced features such as motion sensing, auto-iris Varifocal lens, and high resolutions make it a must-have for anyone looking to enhance their security measures. With its discreet design and top-of-the-line technology, this camera is suitable for a wide range of applications, including homes, offices, retail stores, and more. Invest in the Eyemax DO-614V Camera today and enjoy peace of mind knowing that your property is under constant watch.
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 6 × 5 × 6 in |
| Color | Black, White |
Brand
Eyemax
Professional Video Surveillance Solutions
Eyemax offers surveillance technology designed for homes, businesses, offices, retail locations, schools, warehouses, and other properties. Available equipment supports both network-based and coaxial security installations.HD Coaxial Camera Solutions
HD-over-coax technology provides high-resolution surveillance while allowing compatible existing coaxial cabling to remain in service. This can provide a practical upgrade path for installations that already use traditional CCTV infrastructure.Available camera styles can support indoor and outdoor monitoring requirements, including dome, bullet, turret, and other common surveillance configurations.Network Camera Solutions
Network-based cameras provide flexible deployment options for modern surveillance environments. Depending on the equipment selected, network technology can support high-resolution imaging, remote monitoring, and integration with compatible recording systems.This approach is suitable for new installations as well as projects requiring system expansion and centralized management.NVR Recording Solutions
Network recording equipment provides centralized storage and management for compatible IP surveillance systems. Recorder selection should consider camera count, resolution, storage capacity, network requirements, and desired recording retention.Remote viewing capabilities can also provide authorized users with access to compatible surveillance systems from supported devices.DVR Recording Solutions
Coaxial recording equipment provides reliable video recording for compatible HD analog camera systems. These recorders can support upgrades to existing surveillance installations while preserving compatible cabling and infrastructure.Hybrid configurations may also provide additional flexibility when combining different surveillance technologies.Complete Security System Solutions
A complete surveillance installation can include cameras, recorders, storage, power equipment, cables, mounts, connectors, monitors, and other accessories.Collsam Security offers Eyemax products and supporting security equipment for new surveillance installations, upgrades, expansions, and replacement projects.Only logged in customers who have purchased this product may leave a review.
| Model | NTSC | PAL |
| Resolution | 1/3” SONY Super HAD CCD II | |
| Total Pixels | 811(H) × 508(V) 410K pixels | 795(H) × 595(V) 470K pixels |
| Effective Pixels | 768(H) × 494(V) 380K pixels | 752(H) × 582(V) 440K pixels |
| Scanning System | 2:1 Interlace | |
| S/N (Y signal) | More than 52 dB (AGC Off) | |
| Frequency | Horizontal: 15.734KHz / Vertical: 59.94KHz | Horizontal: 15.625KHz / Vertical: 50.00KHz |
| Video Output | CVBS: 1.0Vp-p / 75ohm | |
| Min Illumination | 0.1Lux at F1.2(Color) / 0.0001Lux (sense up × 256) | |
| White Balance | ATW / AWC / PUSH / MANUAL Adjustable | |
| Electronic shutter speed | Auto/Manual(1/60sec ~ 1/100,000sec) | Auto/Manual(1/50sec ~ 1/100,000sec) |
| WDR (Long and Short exposure) | ON, OFF Selectable | |
| O.S.D | Built-in | |
| Backlight Compression | BLC (LOW, MIDDLE, HIGH, OFF Selectable) / HLM (Adjustable) | |
| AGC (Auto Gain Control) | LOW MIDDLE, HIGH, OFF Selectable | |
| 3D DNR (3D Digital Noise Reduction) | LOW, MIDDLE, HIGH, OFF | |
| Day & Night | AUTO (DAY <−−> NIGHT time change), CDS, COLOR, B/W | |
| Privacy | OFF/ON (6 zone) | |
| Motion Detection | OFF/ON (240 Zone) | |
| Image Conversion | FREEZE / V-FLIP / H-FLIP / ROTATE / Negative: All ON/OFF Adjustable | |
| DIS (Digital Image Stabilizer) | ON/OFF | |
| LSC (Lens Shading compensation) | ON/OFF | |
| Digital Zoom | ON (× 1 ~ 10) / OFF | |
| Sharpness | Adjustable | |
| Operation Temperature | 14 °F (-10 °C) ~ 122 °F (50 °C) / 30% ~ 80% | |
| Storage Temperature | -4 °F (-20 °C) ~ 140 °F (60 °C)/ 20% ~ 90% RH | |
| Power | AC24V / DC12V Dual Power (option) | |
| Dimensions | (Ø) 5.0 inch (12.7 cm) x 4.0 inch (10.16 cm)(H) | |
