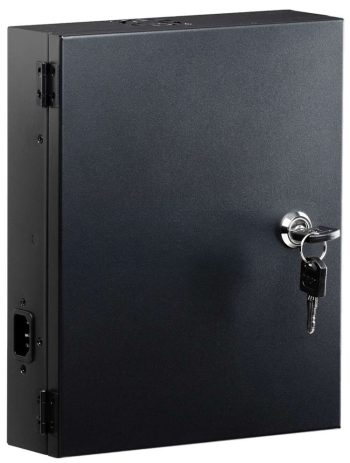

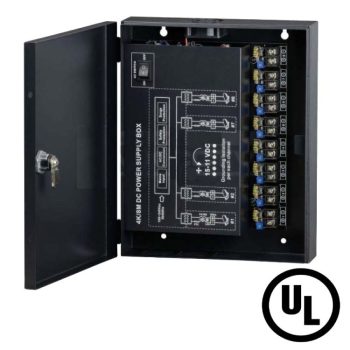

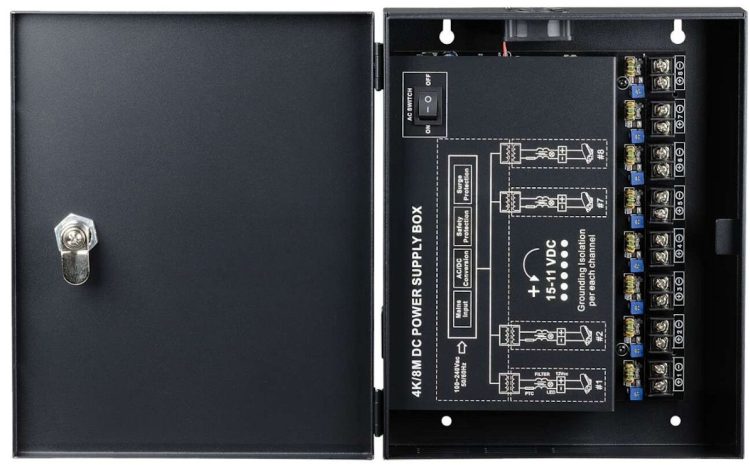

The TR-CU12VDC08P16A is a professional-grade CCTV power supply distribution box from UNL. It is made to supply stable power for 4K high-resolution surveillance systems. Designed to simplify complex security installations, it combines multiple camera power connections into one centralized unit. This helps create a cleaner, more organized setup while also improving overall system management.
The TR-CU12VDC08P16A is a professional-grade CCTV power supply distribution box from UNL. It is made to supply stable power for 4K high-resolution surveillance systems. Designed to simplify complex security installations, it combines multiple camera power connections into one centralized unit. This helps create a cleaner, more organized setup while also improving overall system management.
The TR-CU12VDC08P16A is a professional-grade CCTV power supply distribution box from UNL. It is made to supply stable power for 4K high-resolution surveillance systems. Designed to simplify complex security installations, it combines multiple camera power connections into one centralized unit. This helps create a cleaner, more organized setup while also improving overall system management.
The TR-CU12VDC08P16A is a professional-grade CCTV power supply distribution box from UNL. It is made to supply stable power for 4K high-resolution surveillance systems. Designed to simplify complex security installations, it combines multiple camera power connections into one centralized unit. This helps create a cleaner, more organized setup while also improving overall system management.
The TR-CU12VDC08P16A is a professional-grade CCTV power supply distribution box from UNL. It is made to supply stable power for 4K high-resolution surveillance systems. Designed to simplify complex security installations, it combines multiple camera power connections into one centralized unit. This helps create a cleaner, more organized setup while also improving overall system management.
The TR-CU12VDC08P16A is a professional-grade CCTV power supply distribution box from UNL. It is made to supply stable power for 4K high-resolution surveillance systems. Designed to simplify complex security installations, it combines multiple camera power connections into one centralized unit. This helps create a cleaner, more organized setup while also improving overall system management.

TR-CU12VDC08P16A

The TR-CU12VDC08P16A is a professional-grade CCTV power supply distribution box from UNL. It is made to supply stable power for 4K high-resolution surveillance systems. Designed to simplify complex security installations, it combines multiple camera power connections into one centralized unit. This helps create a cleaner, more organized setup while also improving overall system management.

TR-CU12VDC08P16A

Original price was: $149.99.Current price is: $99.95.Each

In stock
0 out of 5

Original price was: $149.99.Current price is: $99.95.Each

UNL TR-CU12VDC08P16A Professional 4K Power Supply, 8-Channel, 12VDC 13AMP

  • 8 regulated 12VDC outputs
  • Designed for 4K Cameras
  • ANTI-Noise
  • ANTI-Ripple
  • 2A PTC Fuse
  • 1.625A per Channel Maximum
  • Each output is individually fused
  • LED indicator
UNL CCTV power and network accessories are available at Collsam Security
SKU: TR-CU12VDC08P16A Categories: , , Tags: , , , , , , ,

Description

The TR-CU12VDC08P16A is a professional-grade CCTV power supply distribution box from UNL. It is made to supply stable power for 4K high-resolution surveillance systems. Designed to simplify complex security installations, it combines multiple camera power connections into one centralized unit. This helps create a cleaner, more organized setup while also improving overall system management.

With 8 independent power ports, this unit replaces up to eight separate individual power adapters. Consequently, it reduces clutter and makes installation faster and more efficient. It is based on the common 12V DC output that most security cameras use. In addition, select models include an adjustable voltage knob that can raise output up to 14V DC. This helps compensate for voltage drops over long cable runs.

The TR-CU12VDC08P16A delivers a strong 13 AMP total power capacity, with a maximum output of 1.625 Amps per channel. This makes it well-suited for powering multiple cameras simultaneously while maintaining consistent performance across the system. Whether used in a small business, commercial property, or large surveillance installation, it provides dependable distribution where it matters most.

A 2A PTC resettable fuse protects each channel, providing a crucial degree of security and dependability. If a short circuit or overcurrent condition occurs, only the affected port shuts down. As a result, there is no chance of the entire system going offline. The fuse automatically resets after the problem has been addressed. This allows the channel to resume normal operation without the need for replacement parts.

Built with anti-noise and anti-ripple engineering, this CCTV power supply box helps minimize electrical interference and supports stable camera performance. The result is a clearer, more consistent video feed with reduced flicker and fewer power-related disruptions. For installers and system integrators seeking a durable, efficient, and professional power solution for 4K surveillance, the TR-CU12VDC08P16A offers the performance and convenience required. This is essential for a dependable security network.

Additional information

Weight6 lbs
Dimensions11 × 12 × 4 in

Brand

UNL

UNL CCTV power supplies, CCTV power distribution boxes, the UNL PoE switch, and CAT6 RJ45 connectors support security installations. The 8-, 16-, and 18-channel units centralize 12V DC power for compatible surveillance cameras. Individual protected outputs help installers organize power and isolate faults across multi-camera systems. The 52-port network switch provides 48 Gigabit PoE ports and four 10G SFP uplinks. It supplies data and power for compatible IP devices in demanding video security networks.UNL CCTV power supplies suit new systems, replacements, and planned upgrades. CCTV power distribution boxes offer lockable metal enclosures and convenient service access. The UNL PoE switch supports full Gigabit transfer across its powered RJ45 ports. CAT6 RJ45 connectors provide gold-plated contacts for reliable network termination. Always confirm voltage, channel count, PoE requirements, cable type, and device compatibility before installation.
UNL CCTV power and network accessories are available at Collsam Security

UNL CCTV Power and Network Accessories

UNL provides practical power and network products for professional CCTV and low-voltage installations. The available selection focuses on centralized camera power, high-capacity PoE networking, and CAT6 cable termination.

CCTV Power Distribution Boxes

The UNL power-box selection includes 8-, 16-, and 18-channel models. These metal enclosures centralize 12V DC power for compatible surveillance cameras.Individual protected outputs help prevent one output fault from affecting every connected device. Lockable enclosures also protect the internal terminals and power components.Available models include:
  • TR-CU12VDC08P16A: Professional 8-channel, 12V DC power supply for compatible high-resolution cameras.
  • TR-CU12VDC16P32A: Professional 16-channel, 12V DC, 20A power supply with protected outputs.
  • TR-C12VDC18P20A: 18-channel, 12V DC, 20A multi-channel power supply.
Before installation, confirm the required voltage, total current, maximum current per channel, mounting location, and camera compatibility.

52-Port Gigabit PoE Switch

The HA-UPW-3D448UG is an unmanaged network switch for high-capacity surveillance networks. It provides 48 Gigabit PoE ports and four 10G SFP uplink ports.Ports 1 through 4 support higher-power PoE devices. Ports 5 through 48 support standard PoE and PoE+ equipment. The switch includes a built-in power supply with a total PoE capacity of up to 750 watts.This model can connect compatible IP cameras, wireless access points, intercoms, and other powered network devices. Confirm each device’s PoE standard and power demand before connection.

CAT6 RJ45 Connectors

The CN-TB601 package contains 100 CAT6 RJ45 connectors with gold-plated contacts. Installers can use them to terminate compatible solid or stranded network cable.Use the correct crimping tool and wiring standard. Test every completed connection before placing the cable into service.

Installation Planning

Select each UNL product according to the complete system design. Consider the number of cameras, total current demand, PoE power budget, network bandwidth, cable category, and installation environment.Collsam Security supplies UNL CCTV power and network accessories for compatible security installations.
