Description

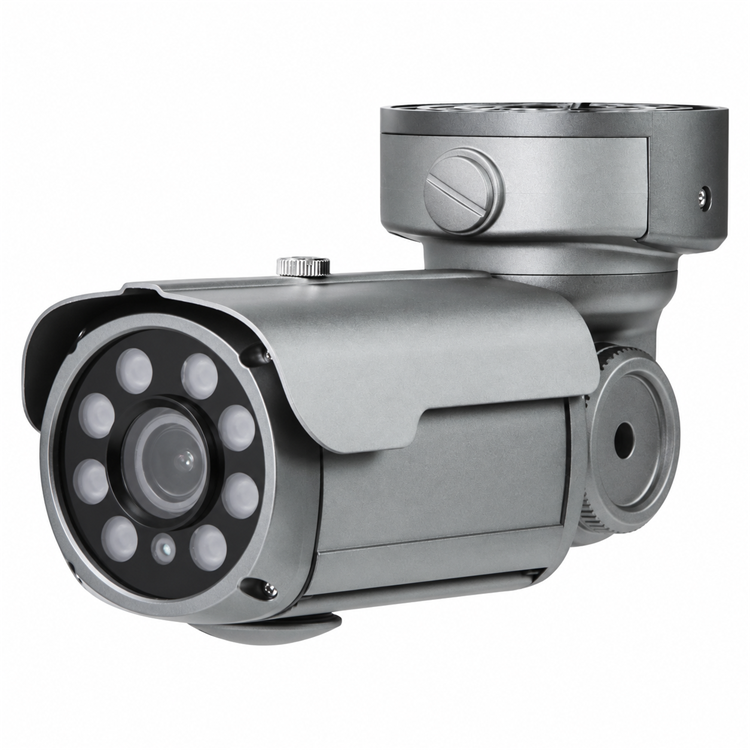

The Eyemax TIR-M2332V-B is a discontinued 2MP HD-TVI bullet camera and outdoor IR bullet camera for coaxial systems. It is also a motorized varifocal security camera. The Sony IMX-222 CMOS sensor records 1080p, 720p, or 720p crop video. Progressive scanning helps capture clear images.

This motorized varifocal security camera has a 2.8-12 mm auto-iris lens. Therefore, installers can adjust the viewing angle and focus for each scene. The signal-to-noise ratio exceeds 52 dB when AGC is off, which supports a cleaner video signal.

For night viewing, the outdoor IR bullet camera uses eight COB infrared LEDs. Smart IR manages the infrared output, while the camera operates at 0 lux with IR active. In addition, the IP68-rated housing supports outdoor use when an installer seals every connection correctly.

The 2MP HD-TVI bullet camera includes wide dynamic range, backlight compensation, and highlight masking. It also offers low, middle, or high digital noise reduction. Day and night modes include automatic, color, black-and-white, and external control. Users can also adjust brightness, sharpness, digital zoom, privacy masks, image flip, motion detection, and defog. The installer can select automatic, manual, or preset white balance settings to match the scene.

This Eyemax coaxial security camera supports TVI and CVBS video output at 1.0 Vp-p over a 75-ohm connection. Moreover, the shutter works automatically or manually from 1/30 to 1/60,000 second. RS-485 communication uses Pelco-D, and the camera runs on 12V DC power. Sens-up settings range from off through 8x.
