UIB-2032V

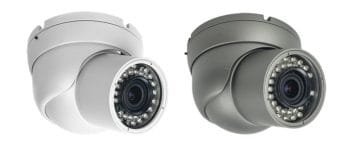

Eyemax UIB-2032V EX-SDI 1080P EYEBALL IR Dome Varifocal Camera With 2.8-12 MM Lens

UIB-2032V

In stock

Reviews Summary:

UIB-2032V Eyemax EX-SDI 1080P EYEBALL IR Dome Camera with Varifocal Lens

  • 1/3” Sony CMOS
  • 2.8~12 mm Mega-Pixel Varifocal Lens
  • 35 IR LED
  • True Day & Night (ICR)
  • DNR (Digital Noise Reduction)
  • EX-SDI – HD-SDI selectable
  • Balun compatible
  • Made in Korea
Read More About Color
Gray Color
White Color
Clear

Compare
Compare

Description

Eyemax UIB-2032V EX-SDI 1080P EYEBALL IR Dome Varifocal Camera With 2.8-12 MM Lens

Eyemax UIB-2032V EX-SDI utilize low frequency signal combine with the new VLC (Visually Lossless CODEC) technology, able to push up 99% identical image quality at more than twice the transmission distance.

Eyemax UIB-2032V EX-SDI is built in mind of adopting 4K resolution to security. Thanks to the EX-SDI VLC feature, because of that it is possible to transmit 4K in real time FPS over coaxial cable.

Eyemax UIB-2032V EX-SDI Magic series will work with any HD-SDI cameras. Just like the Magic series once were compatible with their predecessors’ technologies.

UTP cable is another option to transmit EX-SDI video signal in order to reduce cable cost. Specialized video balun for EX-SDI is required. (sold separately)

Day And Night Function

This Camera Has A Function That Automatically Selects The Mode That Is Appropriate For Daytime Or Nighttime Conditions. The Color Mode Operates In Daytime Conditions To Provide Optimum Colors, And The Black And White Mode Operates In Nighttime Conditions To Enhance The Image.

WDR (Wide Dynamic Range)

By Adopting A Proprietary 1/3” Sony CMOS Chip, The Camera Delivers Clear, High Quality Pictures Even In Backlight, By Increasing Exposure In Dark Areas While Decreasing It In Bright Areas; A
Corrected Image With Clear Details Results.

Privacy Function

The Privacy Function Enables You To Select And Record Only Choose Area Among Twenty-Eight Areas.

Additional Function

White Balance, Motion Detection, Mirror, Sharpness, Freeze, Digital Zoom, Shading, HLM, Ace Function Are Also Available.

Controlled OSD Menu

The Camera Can Be Controlled By Selecting Text Displayed On The Monitor Screen.

  • 2.8 ~ 12 mm Mega-pixel Varifocal Lens
  • 1080p FULL HD Flawless Video
  • 1/2.9” Sony CMOS
  • 0 Lux at IR On (IR : 35pcs)
  • DNR (Digital Noise Reduction) / True Day & Night (ICR)
  • Digital Wide Dynamic Range (D-WDR)
  • Easy Installation
  • switchable EX-SDI / HD-SDI output
  • DC 12V

Datasheet

Download

Eyemax UIB-2032V EX-SDI 1080P EYEBALL IR Dome Varifocal Camera With 2.8-12 MM Lens Datasheet

Brochure

Download

Eyemax UIB-2032V EX-SDI 1080P EYEBALL IR Dome Varifocal Camera With 2.8-12 MM Lens Brochure

Additional information

Weight1.8 lbs
Dimensions8 × 5 × 5 in
Color

Gray, White
