-53%

UAC-B125-AF28M-W

Upgrade your surveillance game with Uniview UAC-B125-AF28M-W 5MP IR Light Analog Bullet 4.0 mm camera. Crystal-clear images day or night, wide-angle coverage Lens Right Side, and reliable source at Collsam Distribution.

UAC-B125-AF28M-W

Original price was: $159.99.Current price is: $74.95.

In stock

Original price was: $159.99.Current price is: $74.95.

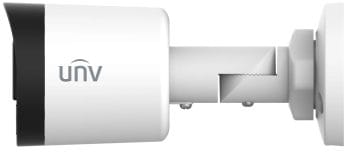

Uniview UAC-B125-AF28M-W 5MP ColorHunter IR Bullet HD Analog Camera

  • 5MP high-quality imaging
  • TVI/AHD/CVI/CVBS
  • Supports white light illumination, 24/7 color images
  • Supports 180° horizontal flip, 180° vertical flip
  • OSD configuration menu, easy to operate
  • IP67 waterproof and dustproof design, high reliability
  • OSD configuration menu in 11 languages
  • Built-in microphone for high-quality audio transmission via coaxial cables
  • Complies with Section 889 of the NDAA

Compare

Description

The Uniview UAC-B125-AF28M-W 5MP IR Light Analog Bullet 2.8 mm camera offers superior clarity and coverage. With a high 5MP resolution, this camera delivers crystal-clear images that capture every detail. This camera has excellent image quality, whether you are monitoring a large outdoor area or a small indoor space.

One of the standout features of the Uniview UAC-B125-AF28M-W camera is its built-in IR light. This ensures exceptional visibility even in low-light conditions, making it the perfect choice for 24/7 surveillance. This camera ensures the safety and surveillance of your property. The IR light also eliminates the need for additional lighting, making it a cost-effective option for your surveillance system.

This Uniview UAC-B125-AF28M-W bullet camera has a 2.8 mm lens that can capture every angle and corner of your space. This makes it ideal for large areas such as parking lots, warehouses, or open offices. With its wide-angle lens, you can easily monitor a large area with just one camera. This saves you both time and money.

We promise to give great products to our customers, and this Uniview camera is no exception. Before Uniview products reach our customers, they must meet strict quality standards. We’ve got a lot of knowledge of the security world and can help you pick the right video surveillance gear.

It’s the perfect choice for any surveillance system because of its superior clarity, excellent low-light visibility, and wide-angle coverage. If you use Collsam Distribution for Uniview products, you can feel confident that your property is safe. For superior surveillance performance, opt for the Uniview UNV UAC-B125-AF28M-W camera from Uniview UNV.

Datasheet

Download

Upgrade your surveillance game with Uniview UAC-B125-AF28M-W 5MP IR Light Analog Bullet 4.0 mm camera. Crystal-clear images day or night, wide-angle coverage Datasheet, and reliable source at Collsam Distribution.

Installation Manual

Download

Upgrade your surveillance game with Uniview UAC-B125-AF28M-W 5MP IR Light Analog Bullet 4.0 mm camera. Crystal-clear images day or night, wide-angle coverage Installation Manual and reliable source at Collsam Distribution.

Additional information

Weight2 lbs
Dimensions8 × 4 × 4 in
Sensor
Pixel5MP
Size1/2.7”
Minimum illumination0.005 lux (F1.4, AGC ON)
0 lux (white light on)
Lens
Lens2.8mm
Lens mountM12
Angle of viewH: 111.5°  V: 58.9°  D: 134.8°
Illuminator
IlluminatorTwo white-light illuminators
Illumination distance40m
Lifetime≥60,000 hours
Video
Resolution5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V)
4MP: 2560(H)×1440(V)
1080P: 1920(H)×1080(V)
Frame rateTVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
CVBS: PAL/NTSC
Shutter timePAL: 1/25s-1/50000s
NTSC: 1/30s–1/50000s
Exposure modeFour modes: Global (default), BLC, HLC, DWDR
Day and Night24-7 color images
Digital noise reduction2D
White balanceTwo modes: Auto (default), Manual
WDRDWDR
FlipSupports 180° horizontal flip, 180° vertical flip
Audio
MicrophoneBuilt-in Mic
Camera audioTVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps
Interface
Power5.5mm power interface
Video outputBNC, supports TVI/AHD/CVI/CVBS
Operating environment
Temperature-30°C to 60°C (-22°F to 140°F)
Humidity≤95% (RH, non-condensing)
Surge protection4kV
Ingress protectionIP67 Ingress Protection
General
PowerDC12V (±25%), with reverse polarity protection. Max 3.28W
Mount3D bracket supplied, surface mount (default), optional junction box
Dimensions (L×W×H)6.20 inches (15.75 cm) x 2.62 inch (6.65 cm) x 2.62 inch (6.65 cm)
MaterialMetal
Weight0.62lb (0.28 kg)
CertificationCB, CE, FCC, UL
