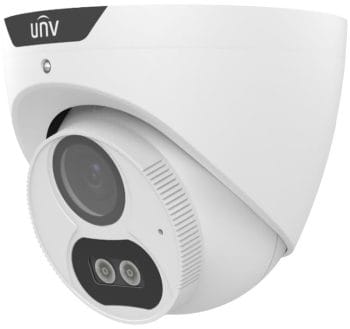

Uniview UAC-T125-AF28M-W 5MP Outdoor Analog HD Turret Camera. Features include 5MP resolution, dual white spotlights, and an IP67-rated enclosure Side View. Shop now at Collsam Distribution, your trusted Uniview Partner.
Uniview UAC-T125-AF28M-W 5MP Outdoor Analog HD Turret Camera. Features include 5MP resolution, dual white spotlights, and an IP67-rated enclosure Side View. Shop now at Collsam Distribution, your trusted Uniview Partner.
Uniview UAC-T125-AF28M-W 5MP Outdoor Analog HD Turret Camera. Features include 5MP resolution, dual white spotlights, and an IP67-rated enclosure Side View. Shop now at Collsam Distribution, your trusted Uniview Partner.
Uniview UAC-T125-AF28M-W 5MP Outdoor Analog HD Turret Camera. Features include 5MP resolution, dual white spotlights, and an IP67-rated enclosure Side View. Shop now at Collsam Distribution, your trusted Uniview Partner.
UAC-T125-AF28M-W - Image 3

UAC-T125-AF28M-W

Uniview UAC-T125-AF28M-W 5MP Outdoor Analog HD Turret Camera. Features include 5MP resolution, dual white spotlights, and an IP67-rated enclosure Side View. Shop now at Collsam Distribution, your trusted Uniview Partner.

UAC-T125-AF28M-W

Original price was: $159.99.Current price is: $74.95.

In stock
0 out of 5
( There are no reviews yet. )

Original price was: $159.99.Current price is: $74.95.

UAC-T125-AF28M-W 5MP ColorHunter HD Fixed Turret analog camera

  • High performance 1/2.7-inch CMOS sensor with 2.8 mm or 4.0 mm Lens M12 mount
  • Supports TVI, AHD, CVI, and CVBS
  •  2D-DNR (Digital Noise Reduction) DWDR
  • Long-distance, anti-interference Megapixel HD video transmission without time delay
  • Audio input, synchronous transmission of audio and video
  • 24/7 color images
  • 4KV Surge Protection, IP 67 Ingress Protection
  • DC 12V (±25%), with reverse polarity protection Max 3.28W
  • Adaptability and Diversity of Networking Solutions
NDAA-compliant security products at Collsam SecurityUniview's 16 years of research and exploration has propelled them to become one of the world’s most advanced technologies in the fields of video, big data, cloud computing, and IoT
SKU: UAC-T125-AF40M Categories: , Tags: , , , , , , , ,

Description

The Uniview UAC-T125-AF28M-W is the perfect choice for anyone in need of a reliable security system. This 5MP ColorHunter HD fixed turret analog camera has a 1/2.7-inch CMOS sensor and a 2.8 mm or 4.0 mm lens M12. It supports TVI, AHD, CVI, and CVBS, which offers vast adaptability, flexibility, and a wide range of networking solutions. This means that your security system can be tailored to suit your needs perfectly, with the ability to switch between the different formats as and when necessary.

The Uniview UAC-T125-AF28M-W also features 2D-DNR (Digital Noise Reduction) and DWDR, allowing you to achieve low-cost, long-distance, and anti-interference Megapixel HD video transmission without any time delay. As well as this, the camera supports audio input and synchronous transmission of audio and video, providing 24/7 color images for your security system.

The camera also offers impressive features designed to ensure optimal safety. 4kV Surge Protection, IP 67 Ingress Protection, DC12V (±25%), and reverse polarity protection all come as standard. The maximum power consumption is just 3.28W, meaning you don’t have to worry about hefty energy bills.

For a powerful and reliable security solution, nothing quite compares to the Uniview UAC-T125-AF28M-W 5MP ColorHunter HD fixed turret analog camera. Thanks to the wide range of features and impressive capabilities, you can be sure that your security system will be up to the task of protecting your property. Its ability to switch between different networking solutions and support audio and video transmission without delay also means that you can customize your system to suit your needs perfectly. On top of this, its impressive safety features and low-power consumption make it the ideal choice for anyone looking to save on energy bills. With the Uniview UAC-T125-AF28M-W, you can be sure that your security system will provide impressive results.

Datasheet

Download

Uniview UAC-T125-AF28M-W 5MP Outdoor Analog HD Turret Camera. Features include 5MP resolution, dual white spotlights, and an IP67-rated enclosure Datasheet. Shop now at Collsam Distribution, your trusted Uniview Partner.

Sensor
Pixel5MP
Size1/2.7”
Minimum illumination0.005lux (F1.4, AGC ON)

0 lux (white light on)

Lens
Lens2.8mm
Lens mountM12
Angle of viewH: 111.5°  V: 58.9°   D: 134.8°
Illuminator
IlluminatorTwo white-light illuminators
Illumination distance40m
Lifetime≥60,000 hours
Video
Resolution5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V)

4MP: 2560(H)×1440(V)

1080P: 1920(H)×1080(V)

Frame rateTVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps

AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps

CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps

CVBS: PAL, NTSC

Shutter timePAL: 1/25s-1/50000s

NTSC: 1/30s–1/50000s

Exposure modeFour modes: Global (default), BLC, HLC, DWDR
Day/Night24/7 color images
Digital noise reduction2D-DNR
White balanceTwo modes: Auto (default), Manual
WDRDWDR
FlipSupports 180° horizontal flip, 180° vertical flip
Audio
MicrophoneBuilt-in Mic
Camera audioTVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps

CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps

Interface
Power5.5mm power interface
Video outputBNC, supports TVI/AHD/CVI/CVBS
Operating environment
Temperature-22 °F (-30 °C) to 140 °F (60 °C)
Humidity≤95% (RH, non-condensing)
Surge protection4kV
Ingress protectionIP67 ingress Protection

Additional information

Weight3 lbs

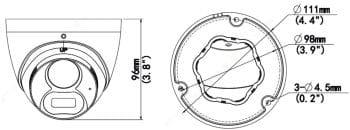

Dimensions5 × 6 × 5 in
