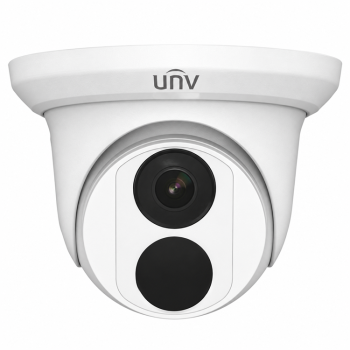

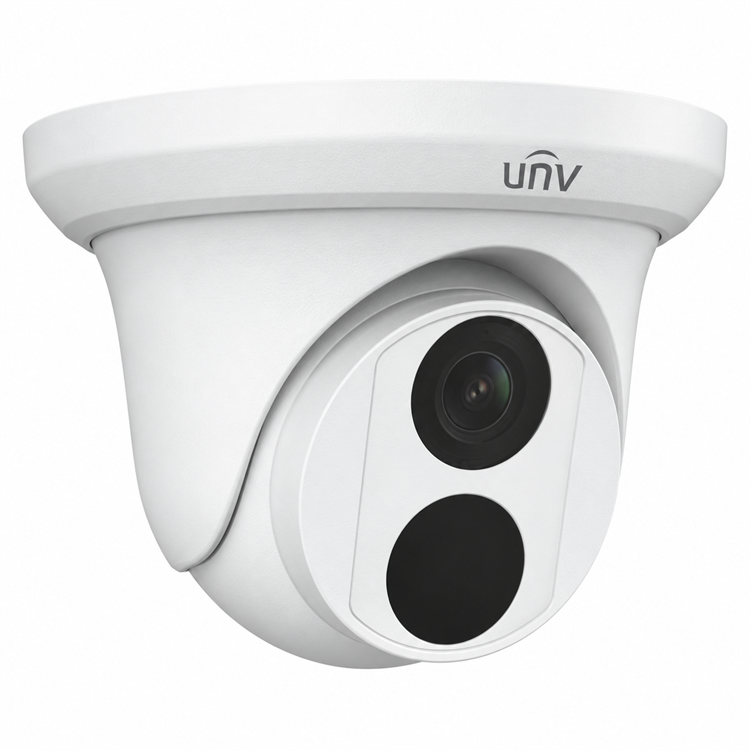

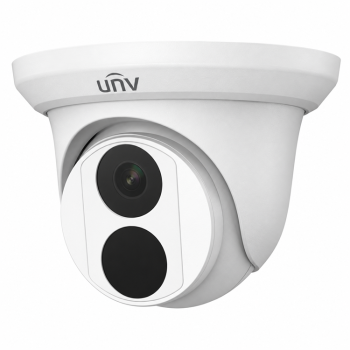

Uniview EC-T4F28M-V4 4MP Turret Camera
- 4MP fixed eyeball network camera
- 2.8 mm lens with Smart IR
- PoE, IP67, microSD, and ONVIF
- Description
- Technical Specifications
- Product Resources
- Additional Information
- Collsam Brands
Description
The Uniview EC-T4F28M-V4 is a Uniview 4MP turret camera. It is a 4MP fixed eyeball network camera and IP67 outdoor security camera. This 4MP PoE security camera uses a 1/3-inch progressive-scan CMOS sensor. Then, it records images up to 2560 by 1440. Also, the camera supports Ultra 265, H.265, H.264, and MJPEG.
The EC-T4F28M-V4 uses a fixed 2.8 mm lens. It gives a 97-degree horizontal field of view. Smart IR reaches 30 meters, or 98 feet. Next, the IR-cut filter changes between day and night use. Wide dynamic range helps with light and dark areas. Backlight control, highlight control, digital defog, and noise reduction help keep the view clear.
The EC-T4F28M-V4 4MP PoE security camera uses one Ethernet cable for power and data with IEEE 802.3af. It accepts 12 VDC power. A microSD card slot holds up to 128 GB. Also, the camera works with NAS through NFS. Therefore, it can restore lost network video. ONVIF Profiles S, G, and T help it work with compatible video systems.
The EC-T4F28M camera detects motion and tampering. It also offers cross-line detection and human-body intrusion detection. Next, users can set privacy masks and regions of interest. They can also set image controls and four on-screen displays through a supported web browser. For safety, the camera supports strong passwords and HTTPS encryption. It also provides IP address filters, access rules, operation logs, TLS 1.2, and secure network access.
Its three-axis design allows pan, tilt, and rotation during setup. The IP67 outdoor security camera housing resists dust and water. In addition, the camera works from -22°F to 140°F. Also, it includes 4 kV surge protection. The EC-T4F28M-V4 has a compact enclosure for discreet placement. Therefore, its compact shape supports wall or ceiling mounting. The metal-and-plastic housing suits routine indoor or outdoor surveillance.
| Camera | |||||
| Sensor | 1/3”, 4.0 megapixel, progressive scan, CMOS | ||||
| Min. Illumination | Color: 0.01Lux (F2.0, AGC ON) 0Lux with IR | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| Adjustment angle | Pan: 0° ~ 360° , Tilt: 0° ~ 75°, Rotate: 0° ~ 360° | ||||
| S/N | >56dB | ||||
| WDR | DWDR | ||||
| Lens | |||||
| Lens Type | 2.8 mm @ 2.0, fixed focal | ||||
| Lens Mount | M12 | ||||
| Angle of View (H) | 97.0° | ||||
| Angle of View (V) | 52.2° | ||||
| Angle of View (O) | 107.5° | ||||
| DORI | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8 | 63.0 | 25.2 | 12.6 | 6.3 | |
| Illuminator | |||||
| IR Range | Up to 98 ft (ca. 30 m) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, main profile, high profile | ||||
| Frame Rate | Main Stream: 4MP (2560×1440), Max 25 fps; 3MP (2304×1296), Max 30 fps; 1080P (1920×1080), Max 30 fps; 720P (1280×720), Max 30 fps Sub Stream:D1 (720×576), Max 30 fps; 640*360,Max 30 fps; 2CIF (704×288), Max 30 fps; CIF (352×288), Max 30 fps; | ||||
| Video Bit Rate | 128 Kbps~6144 kbps | ||||
| U-code | Supported | ||||
| OSD | Up to 4 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Image Setting | Image rotation, brightness, saturation, contrast, and sharpness, gain adjustable by web browser | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Smart IR | Support | ||||
| Flip | Normal/Vertical/Horizontal/180° | ||||
| Dewarping | N/A | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| Defog | Digital Defog | ||||
| Events | |||||
| Behavior Detection | Cross line, intrusion(based on human body detection) | ||||
| Motion detection, tampering alarm | |||||
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 128GB | ||||
| Network Storage | ANR, NAS(NFS) | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API , SDK | ||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||
| Security | Password protection, strong password, HTTPS encryption, export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
| Client | EZStation EZView EZLive | ||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||
| Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ | |||||
| Interface | |||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
| Certification | |||||
| EMC | FCC: FCC Part 15 | ||||
| Safety | CE: EN 60950-1 UL: UL60950-1 IEC 60950-1 | ||||
| General | |||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||
| Power consumption: Max 4.0W | |||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||
| Dimensions (Ø x H) | Φ4.6 inches (ca. 15 cm) x 3.8 inches (ca. 10 cm) | ||||
| Weight | 0.66 lb (0.3 kg) | ||||
| Material | Metal + Plastic | ||||
| Working Environment | -22°F (-30°C) ~ 140°F (60°C ), Humidity: ≤95% RH (non-condensing) | ||||
| Storage Environment | -22°F (-30°C) ~ 140°F (60°C ), Humidity: ≤95% RH (non-condensing) | ||||
| Surge Protection | 4KV | ||||
| Reset Button | N/A | ||||
| Ingress Protection | IP67 Ingression protection | ||||
