V-CELL-HD-B

Vicon V-CELL-HD-B Corner Mount Network Camera

V-CELL-HD-B

Original price was: $1,395.00.Current price is: $977.00.

Out of stock

Original price was: $1,395.00.Current price is: $977.00.

End Of Life ProductRoughneck V-CELL-HD-B A rugged corner mount camera for demanding security installations.

  • High-security 3 MP resolution camera
  • Integrated housing, camera, lens, and IR illuminators
  • Designed specifically for use in custodial suites and prison cells
  • H.264, MPEG-4 and M-JPEG compression
  • ONVIF certified
Roughneck V-CELL-HD-C a Rugged Corner Mount Camera for Demanding Security Installations.
Replacement Product Roughneck V-CELL-HD-C
Compare

Description

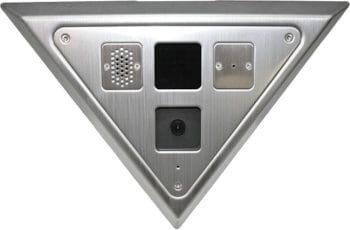

Roughneck V-Cell-HD-B Corner-Mount Network Camera

The Roughneck V-CELL-HD-B integrates a 3 megapixel HD security camera and IR Illuminators into a heavy-duty stainless steel housing created specifically for use in custodial suites and prison cells.

The V-CELL-HD-B camera is ONVIF compliant to promote compatibility with a wide range of video management systems. The camera can stream H.264, MPEG-4, or M-JPEG video; it also has a speaker and microphone.

The V-CELL-HD-B housing is designed to fit into a corner where two walls and a ceiling meet. The camera has an adjustable mount so that it can be tilted slightly up or down to give the exact view.

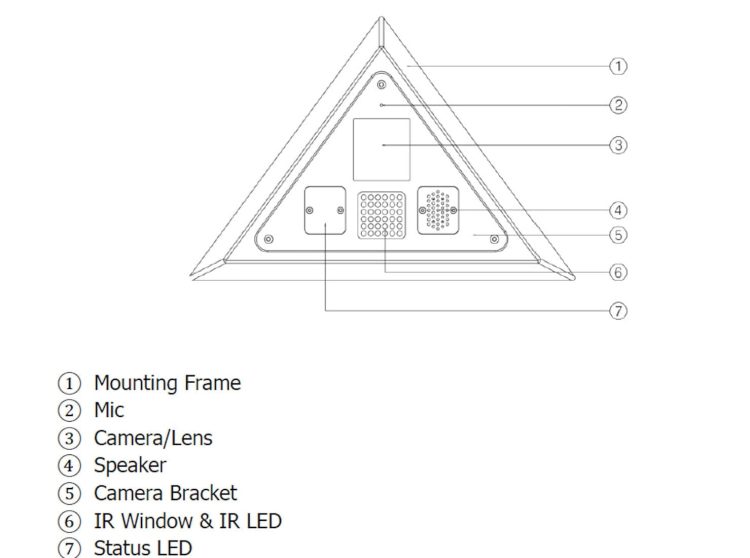

The V-CELL-HD-B housing consists of a two part stainless steel assembly, a fixed mounting frame and a removable front plate. The front plate is recessed and secured to the fixed frame with security screws. The front plate has two polycarbonate windows to protect the camera and IR LED illuminators.

  • Heavy-duty stainless steel corner-mount housing
  • Designed specifically for prison cells
  • 3 MP (2048×1536) resolution
  • True day/night camera with 2.3 mm lens
  • Digital WDR (Wide Dynamic Range)
  • Privacy masking
  • Museum Search
  • 0.00 lux low light capabilities @ 50 IRE (IR ON)
  • Power-over-Ethernet (IEEE 802.3af), 12 VDC
  • Integrated IR LEDs (65 ft/20 m range)
  • Integrated speaker and microphone
  • Impact resistant IK10
  • ONVIF interface provides interoperability with open platform solution

Datasheet

Download

Vicon V-CELL-HD-B Corner Mount Network Camera Datasheet

Quick Installation Manual

Download

Vicon V-CELL-HD-B Corner Mount Network Camera Installation Guide

Configuration Guide

Download

Vicon V-CELL-HD-B Corner Mount Network Camera Configuration Guide

User's Manual

Download

Vicon V-CELL-HD-B Corner Mount Network Camera User Manual

Additional information

Weight5 lbs
Dimensions12 × 12 × 6 in
