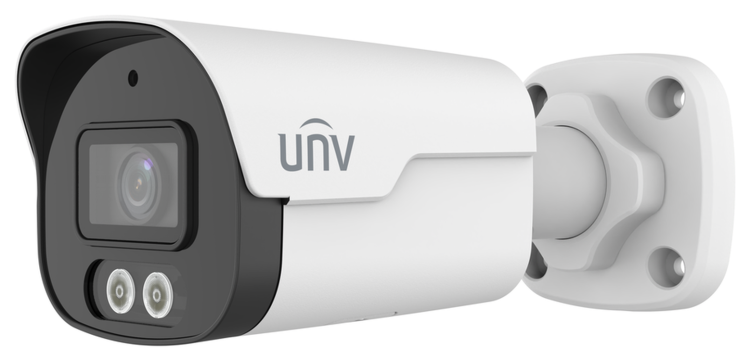

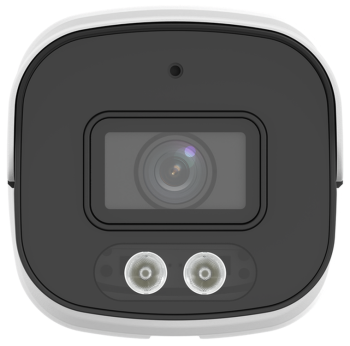

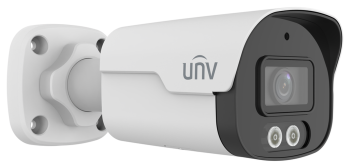

Uniview IPC2124SB-ADF40KM-DL-I1 4MP Dual-Light Bullet Camera
- Uniview 4MP bullet camera with a fixed 4.0 mm lens
- Dual-light IP camera with infrared and warm lighting
- Smart intrusion prevention camera for fewer false alarms
- Built-in mic, MicroSD support, PoE, and IP67 protection
- Description
- Technical Specifications
- Product Resources
- Additional Information
- Collsam Brands
- Reviews
Description
The Uniview 4MP bullet camera model IPC2124SB-ADF40KM-DL-I1 is made for security. It is a fixed dual-light IP camera with a metal body. For example, this fixed 4.0 mm lens camera uses a 1/2.9-inch CMOS sensor. It records 4 MP video at up to 30 frames per second. Thus, the view works at gates, doors, drives, paths, and parking areas. It also works as a smart intrusion prevention camera.
IPC2124SB-ADF40KM-DL-I1 uses infrared and warm light at night. In addition, each light can reach up to 40 meters. The camera can show color in light as low as 0.002 lux. Its 120 dB true WDR helps with bright and dark parts of a scene. As a result, faces and objects stay clearer when light levels change.
As a smart intrusion prevention camera, IPC2124SB-ADF40KM-DL-I1 checks areas. For example, it can spot line crossing, intrusion, area entry, and area exit. Smart filters sort people, cars, and bikes. They also cut false alerts from leaves, birds, and light changes. Ultra motion tools add ways to track motion. People counts and crowd checks help staff watch sites.
This Uniview 4MP bullet camera supports Ultra 265, H.265, H.264, and MJPEG. Also, three video streams let users choose how they record and view video. A built-in mic records sound. A MicroSD card can hold up to 512 GB. ONVIF profiles S, G, T, and M help it work with supported systems.
The metal case has IP67 ingress protection for harsh outdoor sites. Meanwhile, users can power the camera with 12 VDC or PoE. PoE can send power and network data through one cable. IPC2124SB-ADF40KM-DL-I1 supports HTTPS, strong passwords, TLS 1.2, access checks, and logs. It also offers corridor mode, privacy masks, digital defog, noise reduction, and backlight control.
| Camera | ||
| Max Resolution | 4 MP | |
| Sensor | 1/2.9” CMOS | |
| Min. Illumination | Color: 0.002 Lux (F1.6, AGC ON), 0 Lux with light | |
| Day/Night | IR-cut filter with auto switch (ICR) | |
| Shutter | Auto/Manual, 1 to 1/100000 s | |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° | |
| S/N | > 52 dB | |
| WDR | 120 dB | |
| Lens | ||
| Focal Length | 4.0 mm | |
| Iris | F1.6 | |
| Field of View (H) | 82.2 ° | |
| Field of View (V) | 44.8 ° | |
| Field of View (D) | 96.8 ° | |
| Lens Type | Fixed | |
| Iris Type | Fixed | |
| DORI | ||
| DORI Distance (Lens) | 4.0 mm | |
| DORI Distance (Detect) | 295.3 ft (ca. 90 m). | |
| DORI Distance (Observe) | 118.1 ft (ca. 36 m). | |
| DORI Distance (Recognize) | 59.1 ft (ca. 18 m). | |
| DORI Distance (Identify) | 29.5 ft (ca. 9 m). | |
| Illuminator | ||
| Illumination Distance (Warm Light) | 131.2 ft (ca. 40 m). | |
| Illumination Distance (IR) | 131.2 ft (ca. 40 m). | |
| Wavelength | 850 nm | |
| Light On/Off Control | Auto/Manual | |
| Supplemental Light | Dual light | |
| Video | ||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |
| H.264 Code Profile | Baseline profile, main profile, high profile | |
| Frame Rate | Main Stream: 4 MP (2688 × 1520), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; Third Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; | |
| Video Bit Rate | 128 Kbps to 16 Mbps | |
| U-code | Support | |
| OSD | Up to 8 OSDs | |
| Privacy Mask | Up to 4 areas | |
| ROI | Support | |
| Video Stream | Triple streams | |
| Image | ||
| White Balance | Auto, Outdoor, Fine-tune, Sodium lamp, Locked, Auto2, Area white balance | |
| Smart IR | Support | |
| Digital Noise Reduction | 2D/3D DNR | |
| Flip | Normal, flip vertical, flip horizontal, 180°, 90° clockwise, 90° anti-clockwise | |
| Dewarping | Support | |
| HLC | Support | |
| BLC | Support | |
| Defog | Digital defog | |
| Intelligent | ||
| Smart Intrusion Prevention | Cross-line detection, intrusion detection, enter-area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |
| People Counting | Support people flow counting and crowd density detection | |
| Events | ||
| Basic Detection | Motion detection, ultra-motion detection, tampering alarm, audio detection | |
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication | |
| Audio | ||
| Audio Compression | G.711U, G.711A, AAC-LC | |
| Audio Bitrate | G.711U/G.711A: 64 kbps, AAC-LC: 128 kbps | |
| Two-way Audio | N/A | |
| Suppression | Support | |
| Sampling Rate | G.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz | |
| Storage | ||
| Edge Storage | MicroSD, up to 512 GB | |
| Network Storage | ANR, NAS (NFS) | |
| Network | ||
| Protocols | IGMP, SMTP, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, DNS, DDNS, NTP, UPnP, HTTP, 802.1x, SNMP, SSL/TLS, IPv4, RTP, RTCP, RTMP, HTTPS, FTP, QoS | |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | |
| User/Host | Up to 32 users. 2 user levels: administrator and common user | |
| Security | Password protection, Strong Password, HTTPS encryption, Export operation logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, DTLS 1.2 | |
| Client | EZStation, APP | |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |
| Interface | ||
| Audio I/O | N/A | |
| Alarm I/O | N/A | |
| Serial Port | N/A | |
| Built-in Mic | Support | |
| Built-in Speaker | N/A | |
| WIFI | N/A | |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |
| Video Output | N/A | |
| Certification | ||
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4) FCC (FCC 47 CFR part 15 B) | |
| Safety | CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | |
| Environment | CE-RoHS (2011/65/EU ; (EU) 2015/863) ; WEEE (2012/19/EU) | |
| Protection | IP67 (IEC 60529) | |
| General | ||
| Power | DC 12 V±25%, PoE (IEEE 802.3af) | |
| Power Consumption | Max. 5.2 W | |
| Power Interface | Ø5.5 mm coaxial power plug | |

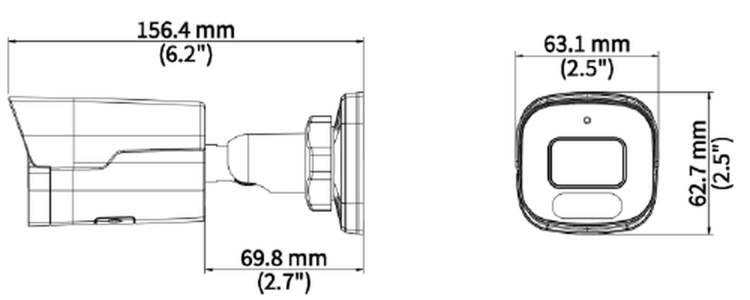

| Dimensions | 156.4 mm × 63.1 mm × 62.7 mm (6.2” × 2.5” × 2.5”) (L × W × H) | |
| Weight | 0.42 kg (0.93 lb.) | |
| Working Environment | -22 ℉ (-30 ℃) to 140 ℉ (60℃ ), Humidity: ≤ 95% RH (non-condensing) | |
| Storage Environment | -22 ℉ (-30 ℃) to 140 ℉ (60℃ ), Humidity: ≤ 95% RH (non-condensing) | |
| Surge Protection | 4 KV | |
| Reset Button | Support | |
| Material | Metal | |
| Web Client Language | 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese | |
