IFS05-B31-OIB4
Original price was: $1,051.99.$630.95Current price is: $630.95.Ea.

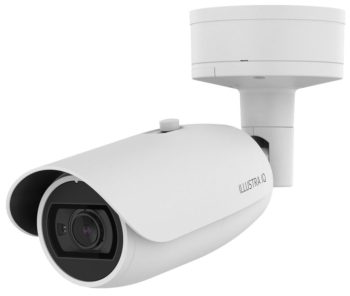

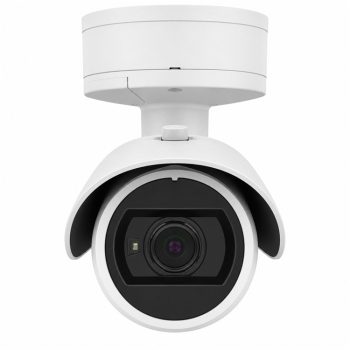

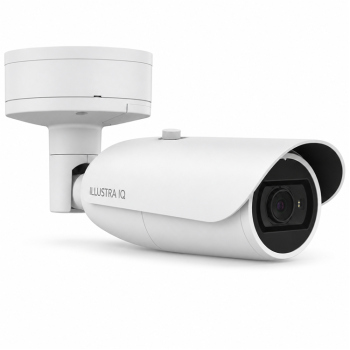

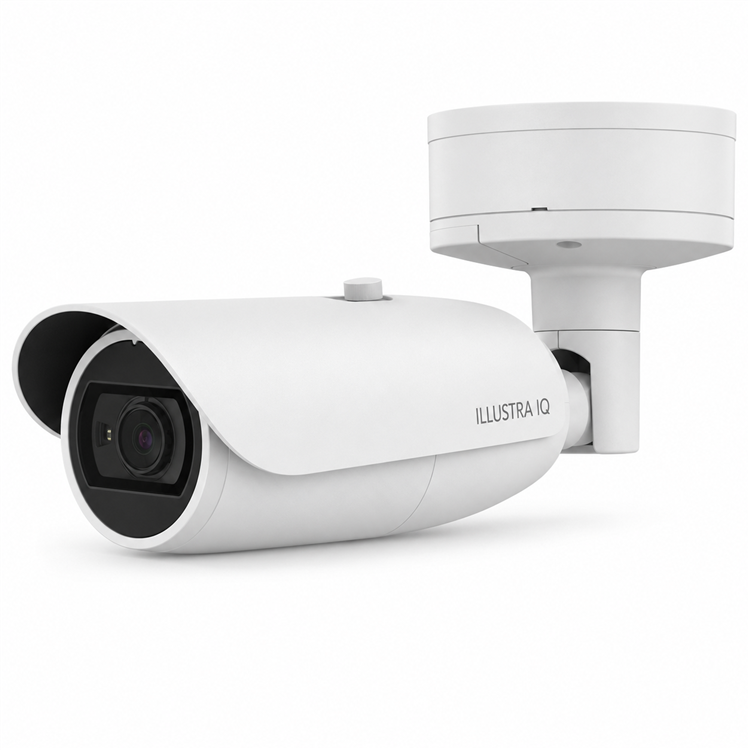

Illustra IFS05-B31-OIB4 5MP Bullet Camera
- 5MP video with a motorized 5–50 mm P-iris lens
- AI detection for people and vehicles
- Adaptive infrared illumination up to 239 feet
- IP66/IP67 weather protection and IK10 impact resistance
- Secure boot, signed firmware, and encrypted video
- Description
- Technical Specifications
- Product Resources
- Additional Information
- Collsam Brands
Description
The Illustra IFS05-B31-OIB4 bullet camera sends clear network video. It is an Illustra 5MP bullet camera for indoor and outdoor sites. Its sensor shows fine detail. Staff can check people, cars, and gates.
The camera has a motorized 5–50 mm P-iris lens. Then, an installer can set the view from afar. The Illustra Flex Gen4 camera can show a wide area. Also, it can zoom toward a far target.
The Illustra Flex Gen4 camera works in day or night light. At night, smart infrared light can reach 239 feet. It can work when the scene has no light. As a result, it can lower glare on a close face or object.
The AI infrared bullet camera can tell people from cars. Also, a gyro sensor helps steady the image. It can cut shake from wind or a weak mount. Therefore, true wide dynamic range helps with bright and dark areas.
This Illustra 5MP bullet camera can send H.265, H.264, or MJPEG video. Thus, it can fit many recording and viewing needs. The Illustra IFS05-B31-OIB4 bullet camera also has two power paths. If one power source stops, the other can help.
Secure boot helps check the code at start-up. Signed firmware helps block code that is not approved. Video and stored data can use encryption. These tools help guard the camera and its data.
Meanwhile, the case has IP66 and IP67 ratings. It can resist dust and water at a job site. Its IK10 housing helps resist a hard hit. The strong case works in exposed areas.
Finally, this AI infrared bullet camera uses a low-power design. The Illustra IFS05-B31-OIB4 bullet camera joins clear video, smart alerts, and a long lens. It gives a secure choice for day and night use.
| Camera Features | Flex Gen4 Long-Range Bullet |
| AI Object Classification | Classes: Person, Bicycle, Bus, Car, Motorbike, Train, Truck, Any Class Sub-Classes (attributes): Person Clothing Color (Upper, Lower), Vehicle Color Rules: Object Detected, Perimeter, Linger, Dwell, Abandoned/Removed, Enter, Exit, Crowd, Queue, Direction |
| Audio | Audio compression G.711 μ-law Audio Input/Output Bi-directional, 1x Line input, and 1x Line output |
| Color | Signal White Pantone RAL 9003 |
| Corridor Mode | Corridor (rotate 90° right or left) |
| Cybersecurity | ISA Secure ISA/IEC 62443-4-1 certified secure development Secure boot Signed and encrypted firmware |
| Day/Night | True Day/Night CF removal |
| Defog | Smart Defog |

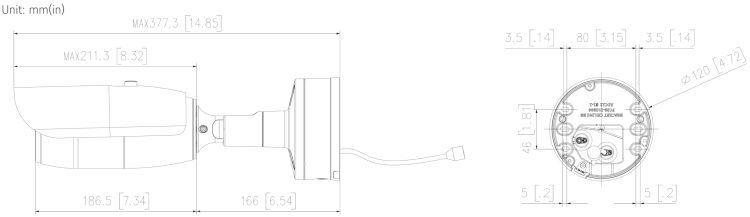

| Dimensions | Ø91 (Camera) x 352.5 (L) mm with back box (without sun shield); back box is Ø120 |
| Dynamic Range | True multi shutter WDR up to 141 dB Off, TWDR, TWDR 3x, Smart WDR |
| Environment Rating | IEC 60529 IP66, IEC 60529 IP67 IEC 62262 IK10 BS EN IEC 63000 ROHS, REACH NEMA 250 Type 4x |
| Ethernet | IEEE 802.3, 10/100Base-T Ethernet, RJ45, auto-sensing |
| Field of View | H: 50.85°(Wide)—7.7°(Tele) V: 30.96°(Wide)—4.84°(Tele) |
| Focus Control | One-touch autofocus, manual, and automatic focus with zoom |
| Gain Control | Auto, Max, Manual |
| H.264 | Yes |
| H.265 | Yes |
| Imager | Sony 1/2.8” Progressive Scan CMOS imager |
| IntelliZip | IntelliZip® Smart Codec |
| IR Illuminator | 850 nm, Smart/Adaptive IR, up to 70m (229.66 ft) |
| Lens Type | 5 mm–50 mm, MFZ, P-Iris F2.0 |
| Minimum Illumination | Color: 0.1 lux B/W: 0.01 lux 0 lux with IR |
| MJPEG | Yes |
| Motion Detection | Yes |
| Onboard Storage | microSDXC slot, Class 10 or better, up to 2TB supported (card not included), pre-event/post-event 1-10 sec encrypted storage and streaming, TrickleStor offline recording and backfilling |
| Operating Temperature | -58°F (-50 °C) to 140°F (60°C) Start-up temperature: -40 °F (-40 °C) Humidity up to 95% RH, Non-Condensing |
| Privacy Zones | 10 user-definable rectangular zones |
| Resolution Options | 4:3: 2560 × 1920 (5 megapixels) to 480×272 |
| Simultaneous Users | 10 users |
| Supported Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS, Unicast, Multicast, NTP, ICMP, IGMP, SMTP, WS-Security, IEEE 802.1x, PEAP, EAP-TLS, EAPoL, SSH, HTTPS, SOAP, WS-Addressing, CIFS, UPNP, LLDP, SIP, ARP, EAP-LEAP, QoS |
| Video Streams | Triple Streaming with a maximum of 5 concurrent shared streams |
| Weight | Net 3.97 lb (1.8 kg), Gross 5.30 lb (2.4 kg) |
| White Balance | Auto Normal, Auto Wide, Manual |
Additional information
| Weight | 7 lbs |
|---|---|
| Dimensions | 15 × 6 × 6 in |
