NIU-B8032

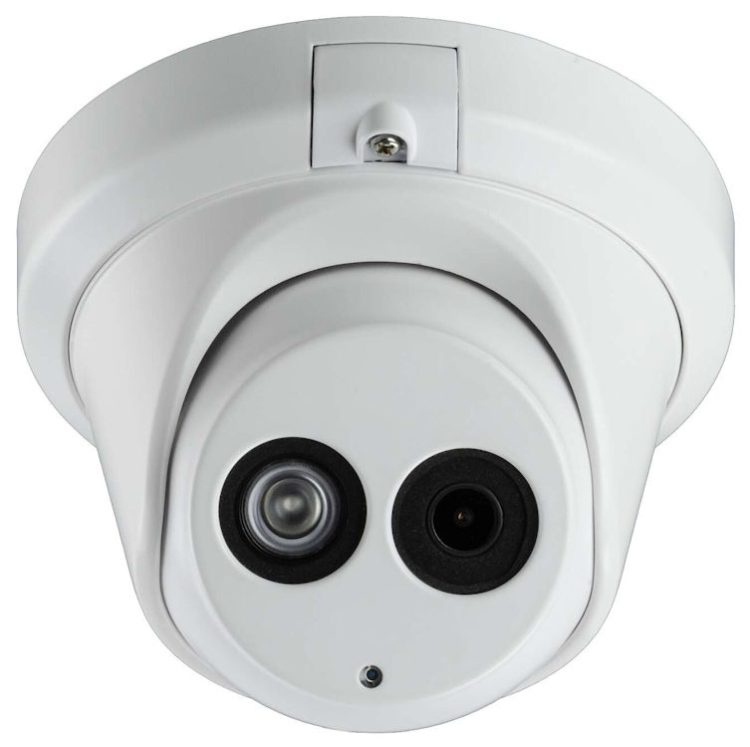

Upgrade your outdoor surveillance with the Eyemax NIU-B8032, an 8-megapixel IP turret camera delivering ultra-HD 4K video and optimized for wide-angle viewing. Equipped with EXIR 2.0 infrared technology and H.265/H.264 formats for efficient storage and weatherproof for harsh environments. Available in black or white.

NIU-B8032

Original price was: $98.99.Current price is: $68.95.

In stock

Original price was: $98.99.Current price is: $68.95.

Eyemax NIU-B8032 8MP IR Outdoor Turret IP Camera, H.265, Fixed Lens, IP67, 12VDC PoE, Black or White Color

  • 1/2.5” (8 MP) Progressive Scan CMOS
  • Up to 3840 × 2160 Resolution
  • 2.8 mm Fixed Lens
  • EXIR 2.0 Range Up to 100 ft (30.48 m)
  • H.265 / H.264
  • IP67 Protection
  • Durable Metal Housing
  • Dark Gray or White Finish
  • 12V DC ±25% (PoE 802.3af),maximum 5.5 W
Eyemax security cameras and video surveillance products at Collsam SecurityNDAA-compliant security products at Collsam Security

Description

The Eyemax NIU-B8032 is a top-of-the-line outdoor IP turret security camera. It is sure to enhance the security and surveillance of any property. With an impressive 8-megapixel (4K) resolution, this camera delivers ultra-high-definition video for clear and detailed footage. Whether you are monitoring a large outdoor area or looking for crystal-clear video evidence, this camera has you covered.

Equipped with a 2.8 mm fixed lens, this camera is optimized for wide-angle viewing. This allows for a broader field of vision. This is especially useful for outdoor areas where there may be multiple entry points or a wide coverage area. The 1/2.5” Progressive Scan CMOS sensor captures every detail with precision and clarity. As a result, no activity goes unnoticed.

One of the standout features of the Eyemax NIU-B8032 is its EXIR 2.0 infrared technology. This technology provides coverage of up to 100 feet (30.48 m) in the dark, making it ideal for around-the-clock surveillance. This camera is also equipped with H.265 and H.264 formats. These formats drastically reduce bandwidth and network storage usage without compromising on the quality of the video.

Built to withstand harsh outdoor environments, this camera has an IP67 weatherproof rating and a rugged metal housing. This means it can withstand rain, snow, dust, and extreme temperatures. Therefore, it is a great choice for both residential and commercial properties. The camera’s sturdy build also makes it highly resistant to vandalism, ensuring that it will continue to function even in the toughest conditions.

The Eyemax NIU-B8032 offers a flexible installation with options for both standard 12V DC power supply and Power over Ethernet (PoE 802.3af). This allows for a single-cable data and power installation, making it convenient and hassle-free. Additionally, this camera comes in both black and white color options. These options let it blend seamlessly with any outdoor environment.

Datasheet

Download

Eyemax NIU-B8032, an 8-megapixel IP turret camera delivering ultra-HD 4K video and optimized for wide-angle viewing. Equipped with EXIR 2.0 infrared technology and H.265/H.264 formats for efficient storage and weatherproof for harsh environments. Available in black or white. Datasheet.

Camera
Image Sensor1/2.5” (8 MP) progressive scan CMOS
Minimum IlluminationColor: 0.8 lux @ (f/1.6, AGC on), 0 lux with IR
Shutter Speed1/3 s to 1/100,000 s
Auto-IrisNo
Day/NightIR cut filter
Digital Noise Reduction3D DNR
Angle Adjustment (Bracket)Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°
Lens
Focal Length2.8 mm
Aperturef/1.6
FocusManual
FOV2.8 mm, horizontal FOV 103°, vertical FOV 58°, diagonal FOV 123°
Lens MountM12
IR
IR RangeUp to 100 ft (30.48 m)
Wavelength850 nm
Maximum Resolution3840 × 2160
Main Stream15 fps 3840 × 2160, 30 fps (2560 × 1440, 1920 × 1080)
Sub-Stream30 fps (704 × 576,640 × 480, 640 × 360, 352 × 288)
Image EnhancementBLC, 3D DNR
Image SettingRotate mode, saturation, brightness, contrast, and sharpness are adjustable by client software or web browser
Day/Night SwitchDay / Night / Auto / Schedule
Network
Network StorageSupports local storage
Alarm TriggerMotion detection, network disconnected, IP address conflict, illegal login
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1x, QoS, IPv6
General FunctionOne-key reset, anti-flicker, two streams, mirror, password protection, privacy mask, IP address filter
APIONVIF
Simultaneous Live ViewUp to 6 channels
User/HostUp to 32 users; two levels: administrator and user
Web BrowserIE 8+
Interface
Communication Interface1-port RJ-45 10M/100M self-adaptive Ethernet port
SVCH.264 and H.265 encoding
General
Operating Conditions14°F (-10°C) to 122°F (50°C); humidity: 95% or less (non-condensing)
Power Supply12V DC ±25%, ∅5.5 mm coaxial power plug; PoE (802.3af, class 3)
Power Consumption and Current12V DC, 0.5 A, maximum: 6.0 W; PoE (802.3af, 37 V to 57 V), 0.2 A to 0.1 A, maximum: 7.0 W
Protection LevelIP67, TVS 2000V lightning protection, surge protection and voltage transient protection
MaterialMetal
Dimensions∅ 5.3 inches (13.46 cm) × 3.28 inches (8.33 cm)
Weight1.20 lbs (550 g)
