Paige® Cable CB-CP-74310118PL Premium Plenum PVC RG59 Coaxial and 2 Conductor 18 AWG Power Siamese Cable, 99% Solid Copper, Type CL2R and CMP, 500 ft (152.4 m)
Paige® Cable CB-CP-74310118PL Premium Plenum PVC RG59 Coaxial and 2 Conductor 18 AWG Power Siamese Cable, 99% Solid Copper, Type CL2R and CMP, 500 ft (152.4 m) White
Paige® Cable CB-CP-74310118PL Premium Plenum PVC RG59 Coaxial and 2 Conductor 18 AWG Power Siamese Cable, 99% Solid Copper, Type CL2R and CMP, 500 ft (152.4 m)
Paige® Cable CB-CP-74310118PL Premium Plenum PVC RG59 Coaxial and 2 Conductor 18 AWG Power Siamese Cable, 99% Solid Copper, Type CL2R and CMP, 500 ft (152.4 m) White

CB-CP-74310118PL

Paige® Cable CB-CP-74310118PL Premium Plenum PVC RG59 Coaxial and 2 Conductor 18 AWG Power Siamese Cable, 99% Solid Copper, Type CL2R and CMP, 500 ft (152.4 m)

CB-CP-74310118PL

Original price was: $380.99.Current price is: $298.95.

In stock
0 out of 5
( There are no reviews yet. )

Original price was: $380.99.Current price is: $298.95.

Paige CB-CP-74310118PL 500 ft (152.4 m) RG59-18-2 Plenum Siamese Cable 99%- White

  • RG59 500 ft (152.4 m) CMP Rated RG59 20 AWG Plenum Solid Copper PVC Jacket. Color: White
  • RG59 Combo with 18/2 Power Coax Bulk Cable. Sparker Tested: 2000V
  • RG59/U 75 Ω Coaxial Cables with a PLENUM jacket for your commercial CCTV installation UL Listed Characteristic Impedance: 75±3 Ohm
  • Great for CCTV Surveillance, BNC Connections, 18 AWG Gauge
  • Use the coaxial cable for video and the 18/2 cable to power your cameras CMP Jacket (Plenum Approved), 95% Copper Braid Shielding
Telpix Electronics Inc. is an established brand primarily known for manufacturing and supplying hardware within the closed-circuit television (CCTV) and video surveillance industry. Active for over 16 years, the brand provides foundational infrastructure components for security systems, including camera components and robust mounting hardware. Produces specific components: an analog coaxial camera, engineered for low-noise, high-definition video transmission over standard coaxial setups. Manufactures telephoto and security camera lenses. Heavy-duty hardware TV mounts for 37–70-inch screens and dual back-to-back screen configurations designed for security control centers. Full-motion, tilting, and 180° swiveling monitor arms built to hold displays.
SKU: CB CP-74310118PL Categories: , , , Tags: , ,

Description

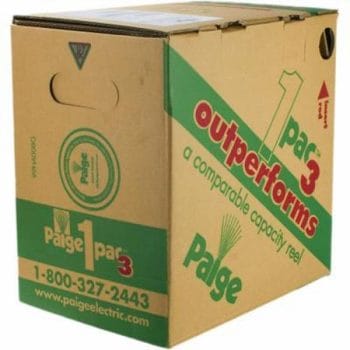

Paige® Cable CB-CP-74310118PL Premium Plenum PVC RG59 Coaxial and 2 Conductor 18 AWG Power Siamese Cable, 99% Solid Copper, Type CL2R and CMP, 500 ft (152.4 m) Box

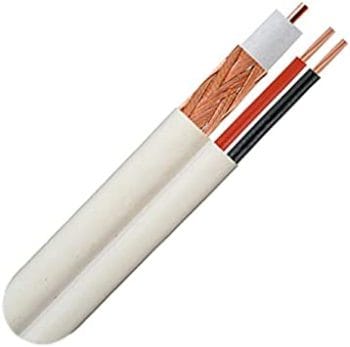

CB-CP-74310118PL95% heavily shielded RG59 Coax video cable and a pair of 18 gauge 2 conductor power cable in a Siamese construction, which is durable and can be run over long distances without interference.

This CB-CP-74310118PL cable consists of an 18 AWG solid bare copper center conductor; color coded foam FEP insulation; 95% copper clad aluminum braid AND 2 conductors 18 AWG stranded bare copper; color coded low smoke PVC insulation; overall low smoke PVC jacket. Type CMP, CL2P, UL Standards 13 and 444-NEC Articles 725 and 800-UL 910 Plenum.

RG59-U CENTER CONDUCTOR

  • Material: Bare Copper
  • Size: 20 AWG
  • Construction: Solid

DIELECTRIC

  • Material: Foam FEP
  • Wall Thickness: .051 inch (.129 cm) nom.
  • Color: Natural

BRAID

  • Material: Copper Clad Aluminum
  • Size: 36 AWG
  • Coverage: 95%

OUTER JACKET

  • Material: Low Smoke PVC
  • Wall Thickness: .022 inch (.05588 cm) nom.
  • O.D.: .200 inch (.508 m) nom.
  • Color: White

2 Connector 18 AWG CONDUCTOR

  • Material: Bare Copper
  • Size: 18 AWG
  • Construction: 7 Strand
  • 2 conductors cabled together

INSULATION

  • Material: Low Smoke PVC
  • Wall Thickness: .008 inch (.02032 cm) nom.
  • Color code: 1-Black, 2-Red

JACKET

  • Material: Low Smoke PVC
  • Wall Thickness: .020 inch (.0508 cm) nom.
  • OD: .150 inch (.381 m) nom.
  • Color: White

ELECTRICAL PROPERTIES

  • Temperature: −20 °C to 75 °C
  • Capacitance: 16.0 pF/ft. nom.
  • Impedance: 75 +/- 3 Ohms/M’
  • Velocity of Propagation: 84% nom.
  • DC Resistance: 10.5 Ohms/M’ (Coax)
  • DC Resistance: 6.6 Ohms/M’ (18 AWG)

20 AWG RG59

  • Conductor: 20 AWG Solid Copper Bare Copper
  • Insulation: FEP Nitrogen-Injected Foam Fluoropolymer Dielectri
  • Dielectric Diameter (in): 0.135
  • Dielectric Color: Natural
  • Braid: Copper-Clad Aluminum Alloyed, 95% Coverage
  • Jacket: Plenum PVC (Low Smoke, Flame Retardant & RoHS compliant)
  • Nominal RG59 Cable Diameter (in): 0.240

18 AWG/2C Power

  • Conductor: 18 AWG 2 Conductor 19 Strands Bare Copper
  • Jacket & Insulation: Plenum PVC (Low Smoke, Flame Retardant & RoHS compliant)
  • Nominal Insulation Dielectric (in): 0.065
  • Insulation Color: Black & Red
  • Nominal 18/2 Cable Diameter (in): 0.169
  • Nominal Jacket Thickness (in): 0.020
  • Nominal Overall Cable Diameter (in): 0.425 × 0.240

Temperature Rating (°F):
Installation: +32 f to + 140            Storage & Operation: -4 to + 167

This cable isn’t suitable for underground use.

To meet the needs of today’s sophisticated, high-speed, wide-bandwidth electronics over long distances, with minimum signal loss or degradation

Datasheet

Download

Paige® Cable CB-CP-74310118PL Premium Plenum PVC RG59 Coaxial and 2 Conductor 18 AWG Power Siamese Cable, 99% Solid Copper, Type CL2R and CMP, 500 ft (152.4 m) Box Datasheet

Additional information

Weight20 lbs
Dimensions16 × 8 × 16 in
