FMC-TRM-B
Original price was: $659.00.$498.00Current price is: $498.00.

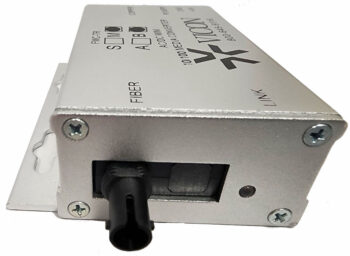

Vicon Security FMC-TRM-B 2-port Mini Media Converter, 10-100 Mbps Ethernet, AC-DC Powered, Utilizes ST Connectors (1550 m) with Power Supply, Multimode Fiber
- Extends range of Ethernet IP network from 328 feet (99.97 m) to 2 miles (3,218.69 m)
- No in-field optical adjustments required
- AC/DC powered
- Lifetime warranty
- Ordered as a set, with one A and one B model required.
SKU: FMC-TRM-B
Categories: Accessories, Fiber Optic Cable and Accessories, Fiber to Ethernet Media Converter
Tags: Fiber, Fiber Optic Media Converters, NDAA Compliant;, Rack Mount Card Cage- Description
- Attachment
- Speciifications
- Additional information
- Reviews (0)
Description
The Vicon Industries FMC-TRM-B is a top-of-the-line 2-port mini media converter. It boasts high-performance and reliability. Vicon Security created this media converter with video surveillance systems in mind. This makes it an essential tool for any security system. With its ability to extend the range of Ethernet IP networks over multimode optical fiber, the FMC-TRM-B is an invaluable addition to any network setup.
Not only does the FMC-TRM-B convert electrical signals to fiber optic signals and vice-versa, it does so seamlessly and efficiently. It utilizes ST connectors operating at a 1550 nm wavelength. This ensures fast and reliable data transmission. Coupled with its ability to support 10/100 Mbps with automatic rate negotiation on the electrical interface, it becomes a must-have for any fast-paced environment.
It also supports a fixed 100 Mbps on the optical interface. This is crucial for consistent and high-speed data transfer.
One of the most impressive features of the FMC-TRM-B is its impressive range. It has the capability to extend network reach from 328 feet (99.97 m) up to an impressive 2 miles (3.22 kilometers). This media converter ensures that your network can cover a wide area with ease.
This makes it the perfect choice for larger establishments, such as warehouses, campuses, or industrial areas, where a strong and reliable network is crucial.
Along with being robust and efficient, the FMC-TRM-B is made to withstand challenging conditions. Because of its AC/DC power and environmental hardening, it can function in even the most extreme temperatures. This ensures that your network stays up and running, no matter the weather conditions.
However, it must be used with an FMC-TRM-A model for a full fiber link. The FMC-TRM-A typically uses a 1310 nm wavelength. This pairing ensures optimal performance and a secure fiber link.
| Data Transmission | |
| Data Interface | Ethernet |
| Data Rate | 10/100 Mbps Optical Port supports Full Duplex; Electrical port supports Auto-Negotiation for 10 Mbps or 100 Mbps, full-duplex or half-duplex data. Automatic medium-dependent interface crossover (MDI/MDI-X) |
| Number of Fibers | 1 |
| Wavelength | 10/100 Mbps Ethernet (1550 nm/1310 nm) |
| Fiber Type | Multimode |
| Fiber Connectors: | ST |
| Transmission | |
| Distance | 2 miles (3.22 kilometers) |
| Optical Power Budget | 10 dB |
| Connectors | |
| Optical Power | ST Connector, 1 Fiber Terminal Block |
| Electrical | RJ-45 |
| LED Indicators | . Optical Link/Data Activity . Electrical Link/Data Activity . POWER |
| Electrical and Mechanical | |
| Power Requirements: | 22-27 VAC @ 0.5 A or 8-24 VDC @ 1 A |
| Protection | Automatic Resettable Solid-State Current Limiters |
| Circuit Board | Meets IPC Standard |
| Protection | Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events. |
| Certifications | CE, FCC Class A; UL and RoHS compliant |
| Environmental | |
| MTB | >100,000 hours |
| Operating Temp | -40 ºF to 167 ºF |
| Storage Temp: | -40 ºF to 365 ºF |
| Relative Humidity | 0% to 95% (non-condensing) |
| Compliance: | IEEE 802.3 compliant. Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, highline/ low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment. |
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 6 × 5 × 3 in |
