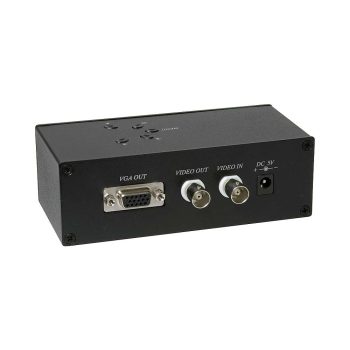

Telpix AP-001H

COMPOSITE VIDEO TO VGA CONVERT

• Input Signal : Composite Video × 1
• Output Signal : VGA : 0.7 VPP RGB, 15pin D female connector
• Power Consumption : 300mA (Max.)
• Power Supply : DC 5V : 500mA Regulated
• Dimension 145(W)mm × 67(H)mm × 27(D)mm ×
• Weight : 220g

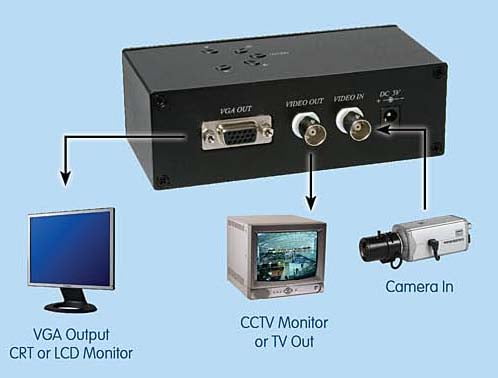

• Special designed for CCTV monitor
• Support NTSC, PAL Video System
• On Screen Display Function : Brightness, Contrast, Color, Tint
• The DE-INTERLACED output mode : NTSC : 640 × 480, PAL : 768 × 576
• PAL, NTSC autoconfigure (NTSC System for CRT/LCD monitor, PAL system for CRT monitor only)
• Compact Size, plug and play installation
