AP-GD01
Original price was: $14.95.$7.49Current price is: $7.49.

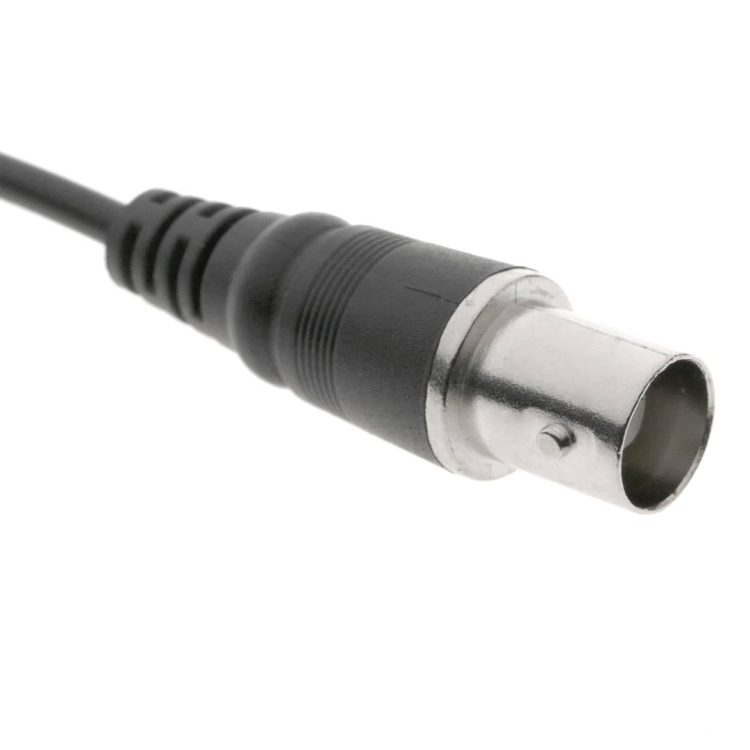

AP-GD01 Coaxial Video Ground Loop Isolator – BNC Male to BNC Female
- Coaxial video ground loop isolator for analog CCTV cameras. Passive, no power required.
- BNC male to BNC female with mini cable 15 cm on both sides.
- Prevents video-signal distortion caused by video ground loops.
- Eliminates picture tearing, cross talk and rolling. Prevents power cables laid by others interfering with the CCTV system.
- Built in TVS (Transient Voltage Suppressors) for surge protection.
- Description
- Product Documents
- Additional information
- Collsam Brands
- Reviews (0)
Description
The AP-GD01 is a must-have device for any CCTV system that aims for crystal clear video footage. The purpose of this Coaxial Video Ground Loop Isolator is to eliminate ground loop issues that cause distortion, tear, crosstalk, and rolling of video signals. It’s an essential component that helps maintain the video quality of CCTV cameras and ensures that all footage captured is of the highest quality.
One of the main functions of the AP-GD01 is to isolate the video signal, preventing ground loops from occurring. Different electrical potentials at different points in a CCTV system can cause ground loops, which mess up the video signal.
This interference can be detrimental to the overall quality of the footage, making it difficult to identify important details. Fortunately, the AP-GD01 handles these issues, preventing distortion and maintaining a stable video signal.
This Coaxial Video Ground Loop Isolator is a passive device, meaning that it does not require a separate power source. This makes it a convenient and low maintenance solution for preventing ground loops in CCTV systems. The AP-GD01 is also easy to install, with BNC male to BNC female connectors and a short cable included.
This allows for seamless integration into existing CCTV installations, making it a cost-effective solution for improving video quality.
Another great feature of the AP-GD01 is its ability to reduce feedback interference in CCTV video signals. This is particularly useful when there are multiple points in a CCTV system with varying electrical potentials. The isolator helps to eliminate any feedback interference, ensuring that the video signal remains clear and stable at all times.
Can also use it with other video gear that has BNC ports. Some models of the AP-GD01 even include built-in TVS (transient voltage suppressor) for surge protection, adding an extra layer of security to your CCTV system.
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 4 × 4 × 4 in |
