SBP-160WMW1

Description

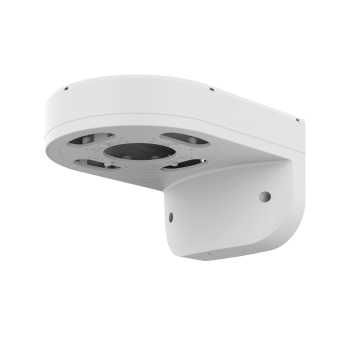

The Hanwha SBP-160WMW1 wall mount provides a compact base for supported dome cameras. Its design supports wall or pole placement, helping installers choose a suitable viewing position. The body uses aluminum, while a polycarbonate cover gives the assembly a clean finish. Hanwha lists this accessory for indoor use.

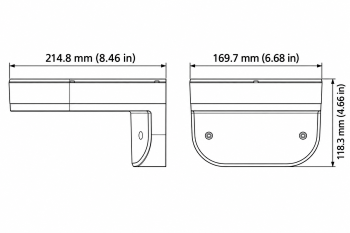

The white RAL9003 finish suits matching camera housings. Also, allow clear space around the camera during fitting. In addition, the SBP-160WMW1 wall mount measures 169.7 mm wide, 118.3 mm high and 214.8 mm deep. Its weight is 696 g, or 1.53 lb. These are product measurements, so packed shipping dimensions and weight are listed separately.

The mount supports a maximum load of 5 kg. However, camera fit still depends on the exact model and mounting pattern. Hanwha lists XND-C6083RV, XND-C7083RV, XND-C8083RV and XND-C9083RV among the supported cameras. Confirm other models against the current mounting guide before ordering.

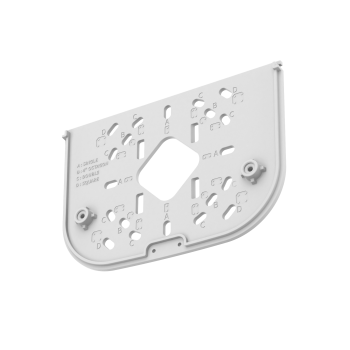

For cable access, the SBP-160WMW1 wall mount has a 19.1 mm conduit opening, identified as three-quarter inch with an M25 connection. Moreover, its gangbox patterns support single and double boxes, plus four-inch octagon and square boxes. This gives installers several ways to match the mounting surface and cable route.

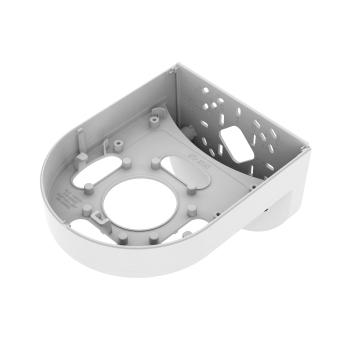

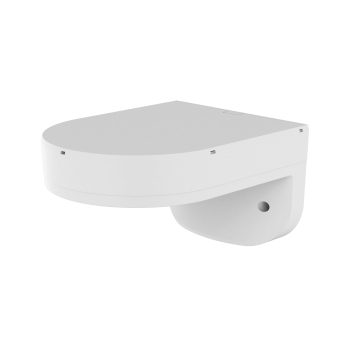

The mount uses a TR20 mount screw specification. Also, its removable cover and mounting plate provide access to the fixing points shown in the product gallery. Review those views before installation to plan the camera position, cable entry and suitable fixing hardware.

Finally, review the SBP-160WMW1 wall mount dimensions image and Specification tab for the key measurements. Download the official Hanwha datasheet from Product Documents for the full reference. Check the wall or pole setup, supported camera and load before fitting the mount. Contact Collsam Security for help selecting matching parts.
