SBP-300CMI

Description

The Hanwha SBP-300CMI pendant mount provides a ceiling mounting point for supported camera setups. It combines a round mounting plate with a straight hanging pipe. The aluminum build supports a firm connection, while the white RAL9003 finish suits matching cameras and mounting parts.

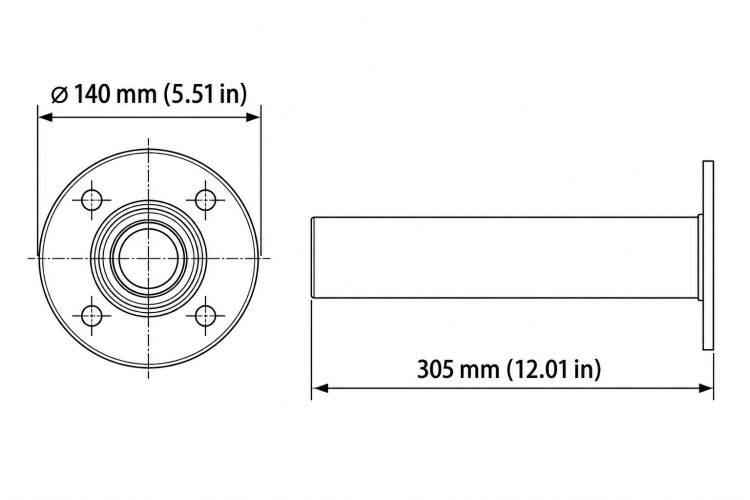

The SBP-300CMI pendant mount measures 140 mm across its round flange and 305 mm in overall height. These dimensions equal about 5.51 inches across and 12.01 inches high. In addition, the unit weighs 800 g, or 1.76 lb, before packaging and shipping materials.

Hanwha lists a maximum load of 10 kg for this mount. However, installers must also check the load rating of the fixing surface and all linked parts. The mount screw specification is M10. Choose suitable fixings for the ceiling material and the planned camera setup.

The SBP-300CMI pendant mount uses a female pipe thread measuring one and a half inches. Moreover, Hanwha lists SBP-120HMW, SBP-140HMW, SBP-160HMW1 and SBP-180HMW1 as supported hanging adapters. Camera fit depends on the adapter used, so check the exact combination before placing your order.

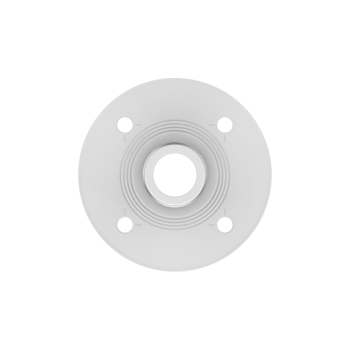

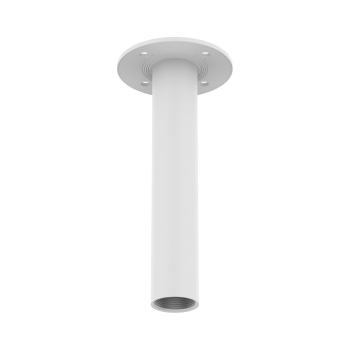

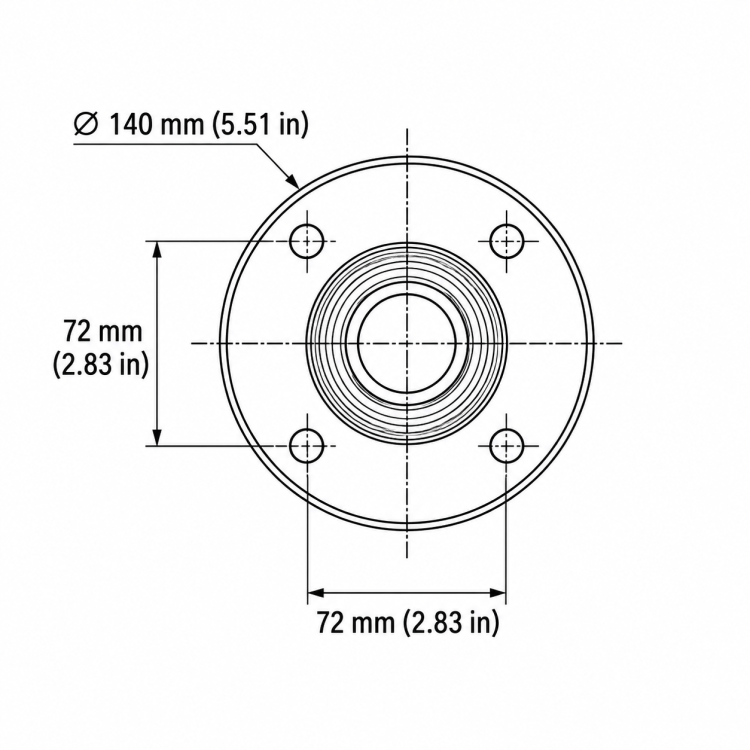

The product gallery shows the full mount and its mounting plate detail. Also, the round plate has four fixing holes arranged around the center opening, as shown in the photos. Also, the clear dimension drawing helps you check available space before fitting. Review the ceiling position, camera clearance and cable route together. This planning helps match the mount to the needs of the installation.

Finally, compare the SBP-300CMI pendant mount details in the Specification tab with your project requirements. The official Hanwha datasheet is attached under Product Documents for easy download. Use it to confirm the mounting dimensions and supported parts. Contact Collsam Security for help choosing compatible accessories for your camera.
