ST12000VE001
Original price was: $1,001.99.$521.95Current price is: $521.95.Ea.

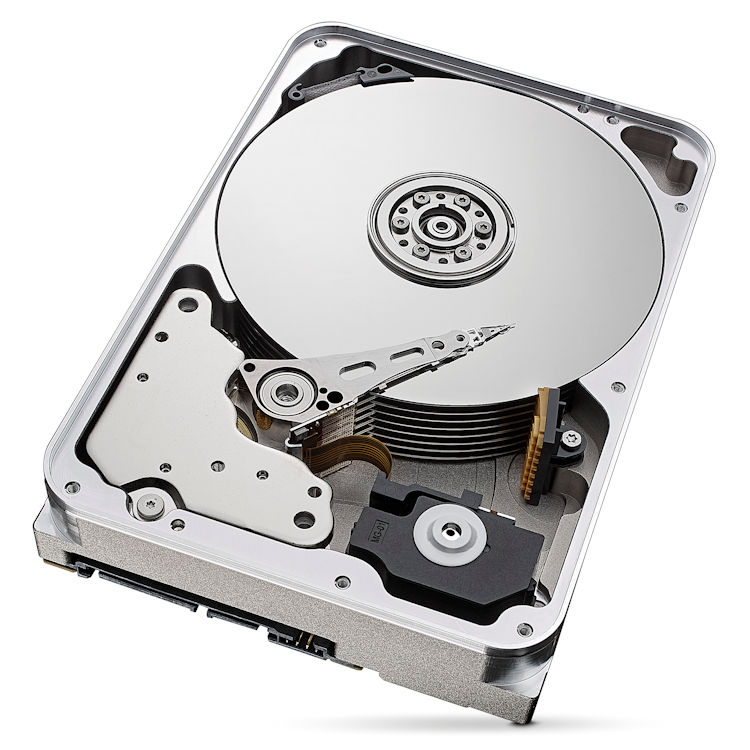

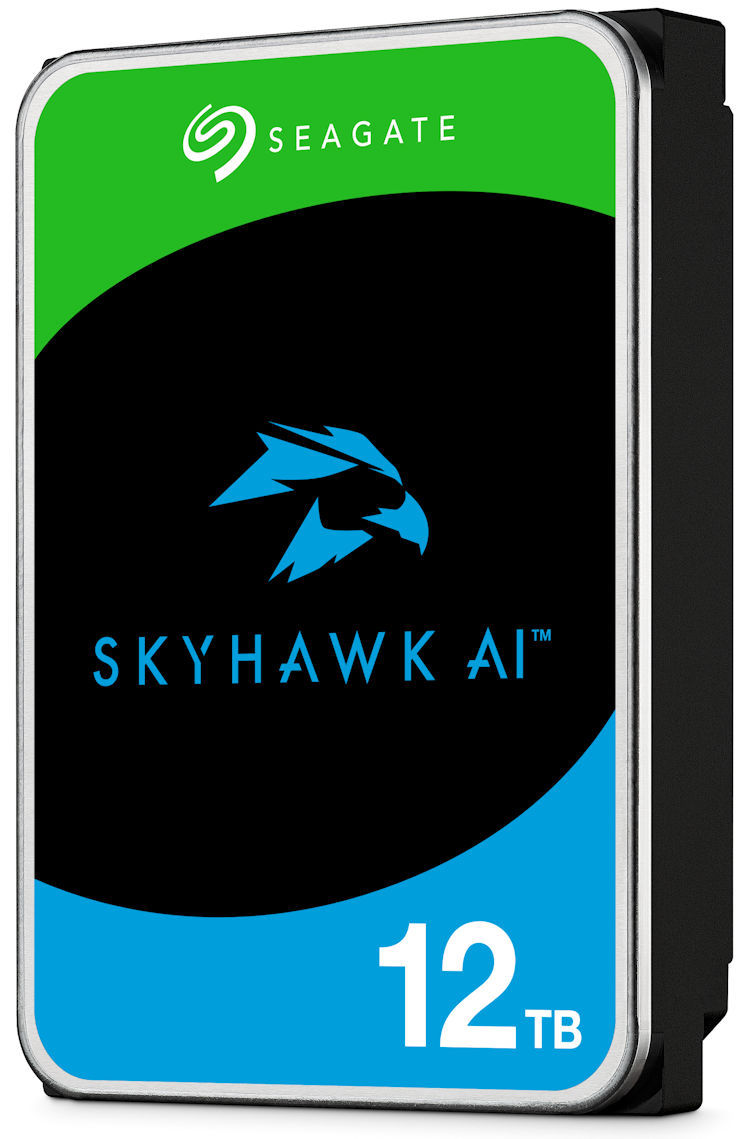

Seagate SkyHawk AI ST12000VE001 12TB Surveillance Hard Drive
- 12TB capacity
- SATA 6Gb/s interface
- CMR recording technology
- Helium-sealed drive design
- 256MB cache
- Supports up to 64 HD cameras
- Supports up to 32 AI streams
- Rotational-vibration sensors
- Designed for 24/7 DVR and NVR surveillance storage
- 5-year limited warranty
- Description
- Product Documents
- Specifications
- Additional information
- Collsam Brands
Description
The Seagate SkyHawk AI ST12000VE001 is the ultimate solution for high-capacity and reliable storage in AI-enabled surveillance systems and NVRs. With a massive 12 TB capacity, this internal hard drive is specially designed to handle heavy video streaming and analytics. Therefore, it is the ideal choice for surveillance professionals and businesses.
Powered by a 7200 RPM spindle speed and a 256 MB cache, this drive ensures fast and efficient data processing. This is true even in demanding environments.
One of the key features of the Seagate SkyHawk AI is its specialized firmware. This sets it apart from standard desktop drives.
This firmware allows the drive to support simultaneous video streaming and analytics without compromising on performance. As a result, it is perfect for AI-powered surveillance systems.
Additionally, the drive utilizes Conventional Magnetic Recording (CMR) technology. This provides increased reliability and durability for continuous writing operations compared to Shingled Magnetic Recording (SMR).
Moreover, the Seagate SkyHawk AI offers a high workload rate of 550 TB per year. This is three times more than standard surveillance drives. This makes it an ideal choice for businesses that require intensive surveillance operations 24/7. With a robust design and a lifespan of 2 million hours, this drive is built to withstand the demands of continuous operation. Furthermore, it provides reliable performance for years to come.
One of the standout features of the Seagate SkyHawk AI is its ability to support up to 64 HD camera streams and an additional 32 AI analytics streams without dropping frames. This is made possible by its advanced sensors. These sensors help to maintain performance in multi-bay systems. This is especially true with systems containing 16 or more bays.
These sensors mitigate the impact of vibrations from adjacent drives, which can cause errors and lead to data loss.
To top it all off, the Seagate SkyHawk AI comes with monitoring software that focuses on prevention, intervention, and recovery options to protect your data. This software provides advanced features such as real-time health monitoring and predictive failure analysis. Therefore, you can identify potential issues before they become major problems.
Additionally, the drive also comes with a 3-year plan for professional data recovery in case of mechanical failure or natural disasters. This provides you with peace of mind and ensures the safety of your valuable data.
In summary, the Seagate SkyHawk AI ST12000VE001 is the ideal choice for high-capacity and reliable storage in AI-enabled surveillance systems and NVRs. With its advanced features, robust design, and comprehensive software, this drive offers superior performance and protection for your valuable data. Upgrade to the Seagate SkyHawk AI today. Then experience the difference it can make for your surveillance operations.
| Capacity | 12TB |
| Interface | SATA 6Gb/s |
| Recording Technology | CMR |
| Drive Design | Helium |
| Features and Performance | |
|---|---|
| Drive Bays Supported | 16+ |
| AI Channels | 32 |
| AI Real-Time Capture Events/Sec | Up to 120 |
| AI Real-Time Compare Events/Sec | Up to 96 |
| HD Cameras Supported | Up to 64 |
| RV Sensors | Yes |
| Max. Sustained Transfer Rate OD (MB/s) | 250MB/s |
| Cache (MB) | 256 |
| Reliability/Data Integrity | |
| Tarnish Resistant | Yes |
| Load/Unload Cycles | 300,000 |
| Nonrecoverable Read Errors Rate, Max | 1 per 10E15 |
| Power-On Hours per year | 8760 |
| Workload Rate Limit (WRL) | 550 |
| Mean Time Between Failures (MTBF) (hours) | 2,000,000hr |
| Warranty, Limited (years) | 3 |
| Rescue Data Recovery Services (years) | 3 |
| Power Management | |
| Startup Current, Typical (12V, A) | 1.8 |
| Average Operating Power (W) | 6.9W |
| Idle Average (W) | 4.9W |
| Standby Mode/Sleep Mode, Typical (W) | 1.2/1.2 |
| Voltage Tolerance (5V) | ±5% |
| Voltage Tolerance (12V) | ±10% |
| Environmental/Temperature | |
| Operating (ambient, min °C) | 41°F (5°C) |
| Operating (drive case, max °C) | 150°F (70°C) |
| Nonoperating (ambient, min °C) | -40 °F (-40°C) |
| Physical | |
| Height (mm/in, max) | 1.028inches (2.61 cm) |
| Width (mm/in, max) | 4.01inches (10.19 cm) |
| Depth (mm/in, max) | 5.787inches (14.7 cm) |
| Weight (g/lb, typical) | 1.521 lb (0.69 kg) |
| Carton Unit Quantity | 20 |
| Cartons per Pallet/Cartons per Layer | 40/8 |
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 8 × 6 × 2 in |
Brand
Seagate
Seagate SkyHawk Video Storage
Seagate SkyHawk hard drives provide dedicated storage for compatible video-surveillance systems. They are engineered for continuous recording workloads commonly found in DVRs, NVRs, and network video security installations.Unlike standard desktop drives, surveillance hard drives are designed to manage multiple video streams and extended recording periods. This makes them suitable for security systems that continuously capture and retain footage.Storage for DVR and NVR Systems
SkyHawk surveillance hard drives can be installed in compatible digital video recorders and network video recorders. Available capacities allow installers to select storage based on the number of cameras, recording resolution, frame rate, compression settings, and required retention time.A higher-capacity drive can retain more recorded footage before the recorder begins overwriting older video. Actual retention depends on the complete system configuration and recording schedule.Continuous Video Recording
Security recorders may operate around the clock, creating storage demands that differ from ordinary computer use. SkyHawk drives are optimized for continuous surveillance recording and the sustained handling of video data.Supported workloads and features vary by drive model. Always confirm the recorder’s maximum supported capacity, drive-bay requirements, interface, firmware compatibility, and recommended hard-drive list before installation.Choosing a SkyHawk Drive
Consider the following factors when selecting a drive:- DVR or NVR compatibility
- Required storage capacity
- Number of connected cameras
- Camera recording resolution
- Continuous or motion-based recording
- Desired footage-retention period
- Available drive bays
- Supported SATA interface and form factor
