HA-PW1609-8P
Original price was: $299.99.$190.95Current price is: $190.95.

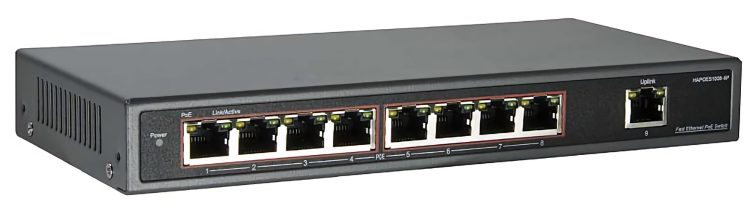

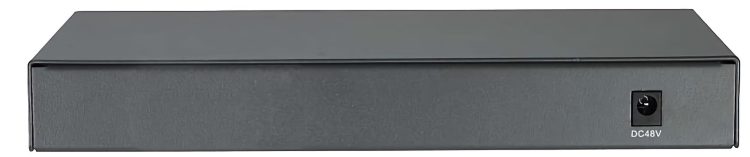

HA-PW1609-8P Gigabit Internet Unmanaged POE Switch, Network Splitter, Plug-and-Play, Metal Housing
- Conforms to IEEE802.3, IEEE802.3u, IEEE 802.3ab, IEEE802.3af, IEEE802.3at
- Provides 9 10/100/1000Base-TX ports
- Provides 8 PoE injector and 65W power adapter
- High back-plane bandwidth 10Gbps
- IEEE802.3x Flow control
- EMI standards comply with FCC, CE class B
- Description
- Technical Specifications
- Product Resources
- Additional Information
- Collsam Brands
- Reviews
Description
The HA-PW1609-8P is an 8 RJ-45 10/100M/1000M Gigabit Switch with 8 POE Injector Voltage Range DC 48V IEEE802.3x Flow Control. This switch is designed for Ethernet HD monitor security systems, allowing users to monitor their networks with ease. The features of this product combine to offer a robust solution for networks in need of reliable performance.
The HA-PW1609-8P is a non-blocking switch, so each port can send and receive data without waiting for its peers. Eight RJ-45 ports and eight POE injectors allow devices to be connected in even the most remote locations. Furthermore, the IEEE802.3x Flow Control ensures that the data transfer between ports is both reliable and secure.
In addition to its robust performance, the HA-PW1609-8P also provides users with a high level of security. With its advanced security features, users can rest assured that their networks are secure. The Voltage Range DC 48V has a wide range of power supply protection for the user and the switch itself.
The IEEE802.3x Flow Control further enhances the network security. The Voltage Range DC 48V boasts a wide range of power supply protection for both the user.
The HA-PW1609-8P also offers a range of convenient features that make it a breeze to use and manage. Its plug-and-play technology makes it easy to install, while its web-based GUI helps users keep track of their networks easily. Furthermore, with its support for both VLAN and QoS, users can easily segregate and prioritize their traffic.
Finally, the HA-PW1609-8P is an incredibly reliable device. With its fanless design, the switch runs quietly and stays cool. Its built-in lightning and surge protection ensures the device remains safe and secure in even the most extreme environments.
The HA-PW1609-8P is an 8 RJ-45 Gigabit switch with 8 POE injector voltage range DC 48V IEEE802.3x flow control. Its features combine to offer the user with a comprehensive solution for monitoring their networks, while its advanced security features keep them safe and secure.
Furthermore, its user-friendly features allow users to easily install, manage, and monitor their networks, making it an ideal solution for HD monitoring security systems.
| POWER | |
| Power Supply | External Power Supply |
| Voltage Range | DC 48V |
| Consumption | 123.2W for PoE |
| ETHERNET | |
| Speed | 1 ~ 8Port: 10 / 100 / 1000Mbps Uplink: 10 / 100 / 1000Mbps |
| Transmission Distance | 328.08 feet (100 m) |
| NETWORK SWITCH | |
| Ethernet Standard | IEEE 802.3 / 802.3u / 802.3ab / 802.3af / at |
| Switching Capacity | 18G |
| Transfer Rate | 14,880 PPS for 10Mbps 148,800 PPS for 100Mbps 148,8000 PPS for 1000Mbps |
| MAC Address | 4K MAC address table |
| LINK / ACT | |
| Green on | The port is connecting |
| Blinks | The port is receiving or transmitting data |
| Green off | The port is not linked successfully with the device |
| PoE | |
| Orange on | PD is connected |
| Orange off | No PD is connected or power forwarding fails |
| PoE pin Assignment | V+ (RJ45 Pin 1,2) V- (RJ45 Pin 3,6) |
| WORKING ENVIRONMENT | |
| Working Temperature | 32 °F (0 °C) ~ 104 °F (40 °C) |
| Storage Temperature | -40 °F (-40 °C) ~ 158 °F (70 °C) |
| Humidity (Non-condensing) | 0 ~ 85% |
| MECHANICAL | |
| Dimension (L × W × H) | 8.5827 inches (21.8 cm) × 4.2126 inch (10.7 cm) × 1.1417 inch (2.9 cm) |
| Outer Shell | Galvanized Sheet |
| Color | Gray |
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 10 × 6 × 3 in |
