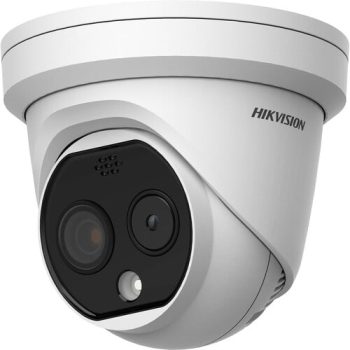

DS-2TD1217-3/PA

Hikvision DeepinView DS-2TD1217-3/PA Thermographic Turret Cameras are equipped with highly sensitive thermal and optical sensors and a graphical processing unit to run the video content analysis (VCA) algorithms developed by Hikvision’s deep learning technology. The pre-alarm system helps you discover unexpected events immediately and protects your property.

Hikvision DS-2TD1217-3/PA Thermal & Optical Network Turret Camera equipped with built-in GPU which supports intelligent behavior analysis algorithm can realize high-precision VCA detection and real-time alarm. It is applied to fire-prevention purposes in indoor spaces such as engine rooms, ATMs, conference rooms, warehouses, museums, train stations, Gems, power stations, and so on. The pre-alarm system helps you discover unexpected events immediately and protects your property.

Smart Function (Thermal Imaging)

● Image processing technology: adaptive AGC, DDE, 3D DNR, NETD less than 40 mK (25 °C), F# = 1.1
● Behavior analysis function, based on deep learning algorithm: Line Crossing, Intrusion, Region Entrance & Exit
● Temperature exception alarm function
● Fire detection algorithm
● Bi-spectrum image fusion, picture in picture preview
● Strobe light and audio alarm

Thermal Imaging Module Function

● 160 × 120 (the resolution of an output image is 320 × 240) resolution sensor, high sensitivity sensor
● 3D DNR, 15 palettes of color adjustable, image detail enhancement, and contrast adjustment
● Mirror image, digital zoom ×2, ×4, ×8
