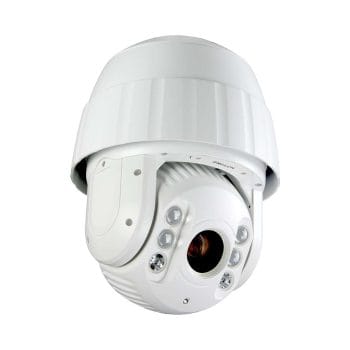

TPT-IR-A1230

TPT-IR-A1230 can be widely applied to places requiring wide-area monitoring display

Such as rivers, forests, highways, railways, airports, ports, sentries, squares, parks, scenic sites, streets, stations, large venues, and outside residential areas.

The auto-tracking function can be applied to the perimeter protection scenes, e.g., the perimeter of an airport, harbor, and residential community.

• 0 Lux minimum illumination
• Up to 120m IR distance
• IR light MTBF reaching up to 30,000 hours
• 1/3” high-performance CMOS, up to 1920 × 1080 resolution
• ±0.1° Preset Accuracy
• Self-adaptive to HIKVISION, Pelco-P/D protocol
• 3D intelligent positioning function
• Power-off memory function: restore PTZ and Lens status after reboot
• Built-in temperature sensor, with display of internal temperature
• Lightning protection, surge protection and voltage transient protection
• IP66 standard (outdoor dome)
• Impact Protection: IEC60068 ~ 2-75 test, Eh, 20J; EN50102, up to IK10
• RS-485 communication diagnosis
• Scheduled PTZ movement
• UTC (Up the Coax) function
• Autofocus, auto white balance, backlight compensation and auto or manual day and night switch
• Privacy masks programmable
• 3D DNR, digital WDR
• 360° endless pan range and −5° ~ 90° tilt range
• 300°/s Pan Preset Speed and 200?/s Tilt Preset Speed
• 0.1° ~ 250°/s Manual Pan Speed and 0.1° ~ 150°/s Manual Tilt Speed
• 256 presets programmable; preset image freezing capability
• 8 patrols, up to 32 presets per patrol
• 4 patterns, with the total recording time not less than 10 minutes
• Proportional zoom function
• Park action: auto call up of PTZ movement, after a defined time of inactivity
