ACE-6020R

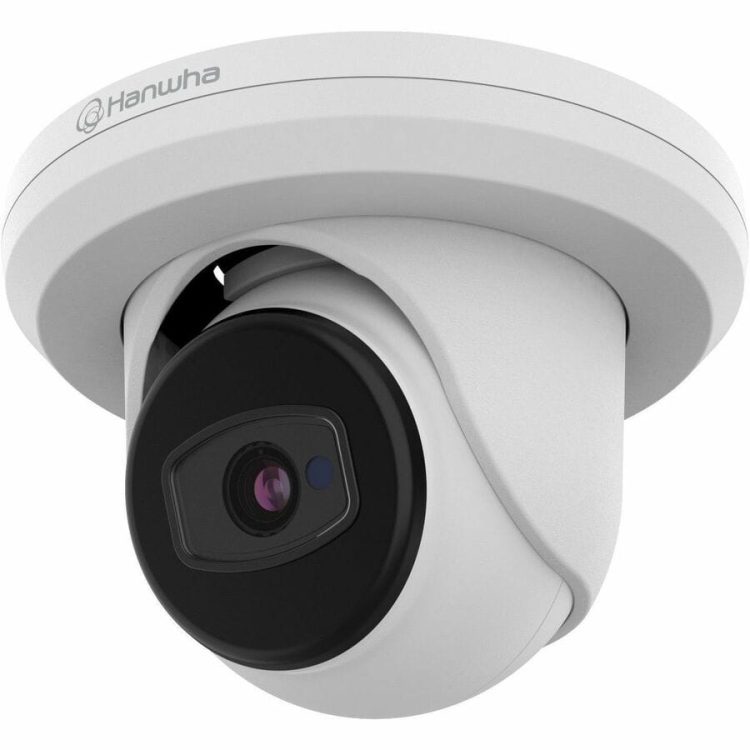

Hanwha Vision Wisenet ACE-6020R 2MP Turret Analog Camera 3.6mm Fixed Lens

ACE-6020R

Original price was: $93.00.Current price is: $63.00.

In stock

Original price was: $93.00.Current price is: $63.00.

Hanwha Vision Wisenet ACE-6020R 2MP Turret Camera

  • Available formats: AHD, TVI, CVI, CVBS
  • Resolution 2 Megapixel Full HD @ 30 FPS
  • Lens  3.6mm fixed focal lens
  • Angular Field of View   H: 77.6° / V: 40.3° / D: 91.5°
  • Motion Sensing
  • Night Vision
  • Pan/Tilt
  • Day and Night (ICR)
  • DWDR
  • IR distance of 65.6 ft (19.99 m)
  • IP67
  • IK10 rated
  • 12V DC power
Hanwha Vision security cameras and video surveillance products at Collsam SecurityNDAA-compliant security products at Collsam Security

Description

Introducing the Hanwha Vision Wisenet ACE-6020R surveillance camera the ultimate solution for all your security needs. You can choose the format that best suits your requirements with this versatile camera. This camera captures every detail with stunning clarity and precision.

The Vision Wisenet ACE-6020R has a lens that is 3.6 mm long and has a viewing angle of 77.6 degrees, 40.3 degrees, and 91.5 degrees. This camera is great for both residential and commercial spaces.

One of the standout features of the Hanwha Vision Wisenet ACE-6020R is its advanced motion sensing capabilities. This means that the camera can detect movement nearby and send a message to your phone or other device quickly. You can be sure that you will always be in the loop, even when you are away from your property.

Another essential attribute of this camera is its superior night vision technology. In low light conditions, the camera automatically switches to black and white mode with its day and night function, delivering crystal-clear shots even in the darkest of places. Furthermore, the Hanwha Vision Wisenet ACE-6020R has a powerful infrared range of 65.6 feet (19.99 meters), so your property is safe both day and night.

Durability and reliability are also at the core of the Hanwha Vision Wisenet ACE-6020R. With an IP67 and IK10 rating, this camera is both weatherproof and vandal-proof, making it suitable for outdoor installations. Whether it’s rain or shine, this camera will continue to perform and provide you with unwavering security. With its 12V DC power, you can be sure that your camera will always be charged.

The Hanwha Vision Wisenet ACE-6020R camera is excellent and easy to use. This camera can be set up quickly and easily with its plug-and play and coaxial control features. It’s the perfect solution for those who want top-notch security without the hassle of a complicated installation process.

Datasheet

Download

Hanwha Vision Wisenet ACE-6020R 2MP Turret Analog Camera 3.6mm Fixed Lens Datasheet

Users Manual

Download

Hanwha Vision Wisenet ACE-6020R 2MP Turret Analog Camera 3.6mm Fixed Lens Users Manual

Video
Imaging Device1/3” CMOS
Resolution1920×1080
Max. Frame rate.30fps
Min. IlluminationColor : 0.08Lux (F1.6, 1/30sec) B/W : 0Lux (IR LED on)
Video OutBNC: AHD/TVI/CVI/CVBS Selectable
Video Transmission Distance300m(5C2V Coaxial Cable)
Lens
Focal Length (Zoom Ratio)3.6mm fixed focal
Max. Aperture Ratio.F1.6
Angular Field of ViewH: 77.6° / V: 40.3° / D: 91.5°
Min. Object Distance.2.0m(6.56ft)
Operational
Day & NightAuto(ICR)
Backlight CompensationBLC
Wide Dynamic RangeDWDR
Digital Noise Reduction2D + 3DNR
Gain ControlLOW / MIDDLE / HIGH
White BalanceATW / AWC
Electronic Shutter SpeedAUTO(1/30~1/50,000)
Video RotationMIRROR/V-FLIP/ROTATE
IR Viewable Length25m(82.02ft)
Coaxial ProtocolACP (AHD Coax Protocol), TCP(TVI Coax Protocol), CCP(CVI Coax Protocol) CVBS: Pelco-D (Coalition)
Environmental & Electrical
Operating Temperature / Humidity-22 °F (-30 °C) ~ 131°F (55°C) / 0~90% RH
Storage Temperature / Humidity-22 °F (-30 °C)~ 140 °F (60 °C) / 0~90% RH
CertificationIP67, IK10
Input Voltage12VDC
Power ConsumptionMax 3.6W, Typical 2.9W
Mechanical
Color / MaterialWhite / Aluminum / Plastic
Product Dimensionsø 4.72 inch (11.99 cm)  3.23 inch (8.2 cm)
Weight0.90 lb (0.41 kg)
