TIR-M2334V-B
Eyemax TIR-M2334V-B HD-TVI 1080p 2Megapixel IP68 Outdoor IR Bullet Camera with 6 COB IR, Motorized Lens, Dual power
- 1/2.9 inch SONY CMOS (IMX-222)
- Resolution 1080P
- 720P
- TVI (Transport Video Interface)

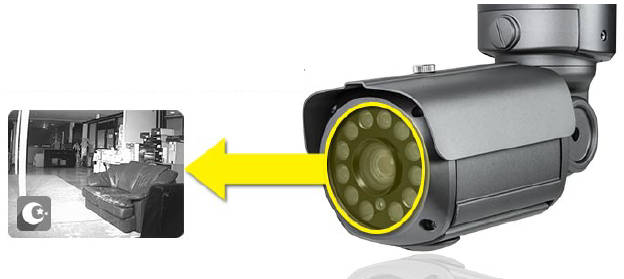

- 0 Lux at IR On (IR LED 08 pcs)
- IP68rating Ingress Protection
- WDR (Wide Dynamic Range)
- Day and Night (ICR OPTION)
- DNR (Digital Noise Reduction)

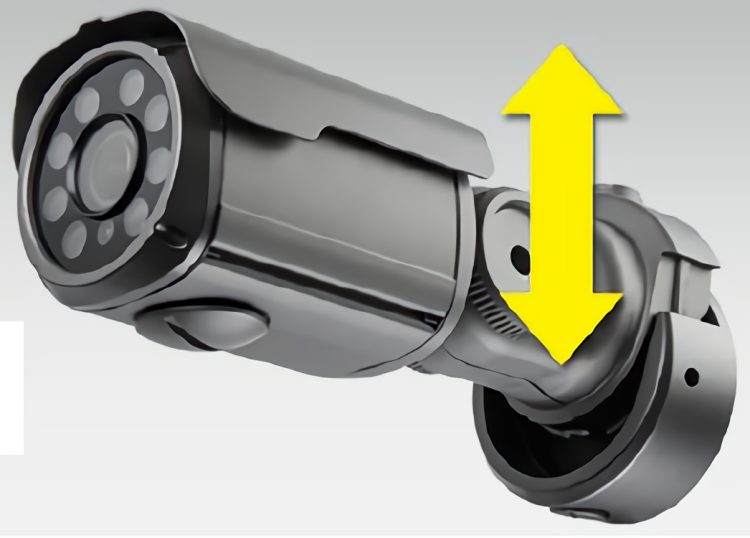

- Easy Installation
- ICR Varifocal lens
- DC Auto IRIS Varifocal Lens
- DC Auto IRIS & TDN Varifocal Lens
- Focal Length 2.8~12mm
- MOTORIZED LENS
SKU: TIR-M2334V
Categories: 2 Megapixel HD Coaxial Cameras, HD Coaxial Cameras
Tags: 1/2.9" Sony CMOS, 2.8-12mm Varifocal Auto Iris Lens, AC24V-DC12V Dual Power, BLC Backlight compensation, DNR (Digital Noise Reduction), HLC Highlight compensation, ICR True Day and Night Auto Switch, TVI 1080P High Definition- Description
- Attachment
- Additional information
- Reviews (0)
- Specifications
Description
Introducing the Eyemax TIR-M2334V-B, a high-quality outdoor bullet camera that boasts impressive features to provide you with top-notch security. This camera has a small sensor called Sony CMOS. It can take pictures that are sharp and clear even in low light. The camera can send high-definition video signals over coaxial cable, which makes it easy to install.
The IP68 protection rating of this outdoor bullet camera makes it suitable for both indoor and outdoor usage. You can use either a 12V DC power source or PoE (Power over Ethernet) to power the camera.
Advanced features like WDR and DNR in the TIR-M2334V-B ensure clear and consistent images in bright lighting conditions. Getting the right angle and adjusting to different lighting is easy with the DC Auto-IRIS and TDN ICR varifocal lens.

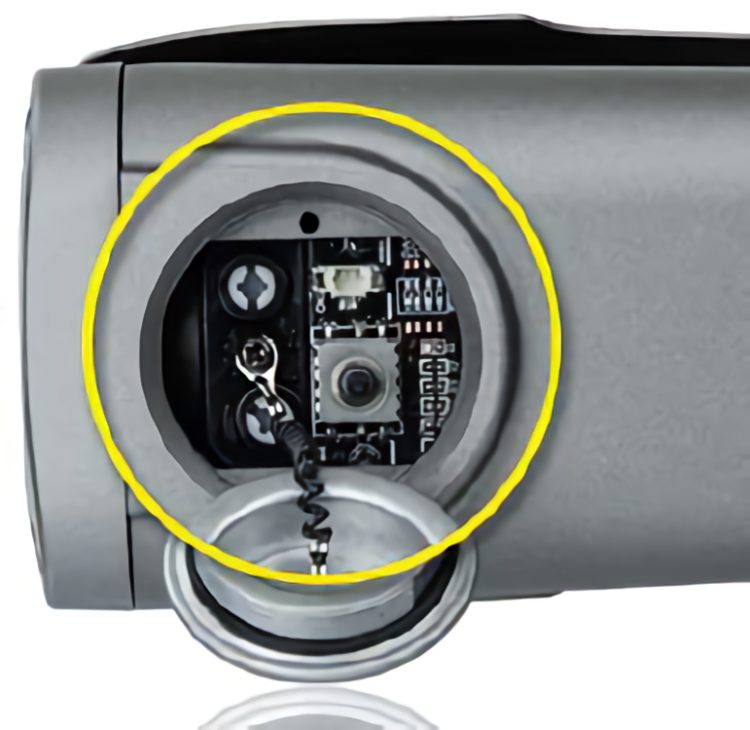

Using a computer or smartphone, you can change the camera’s focal length and focus. This feature eliminates the need for manual adjustments, making it easier to set up and manage the camera remotely. Additionally, the built-in OSD (On-Screen Display) controls allow you to customize the camera’s settings for optimal performance.
To sum up, the Eyemax TIR-M2334V-B camera is good for outdoor surveillance and has many useful features. This camera takes clear pictures all day and night. It can be used outside, and it’s made to last. This camera is easy to use and has remote access capabilities, making it a good choice for your security needs.
Additional information
| Weight | 4 lbs |
|---|---|
| Dimensions | 12 × 7 × 7 in |
Only logged in customers who have purchased this product may leave a review.
| Resolution | 1080P, 720P, 720P CROP |
| Sensor | 1/2.9 inch SONY CMOS (IMX-222) |
| Total Pixels | 2000(H) × 1241(V) = 2,482,000 |
| Effective Pixels | 1944(H) × 1092(V) = 2,122,648 |
| Scanning System | PROGRESSIVE |
| S/N (Y signal) | More than 52 dB (AGC Off) |
| Video Output | TVI / CVBS: 1.0Vp-p (75ohm) |
| Min.Illumination | 0 Lux at IR On |
| White Balance | AUTO / AUTO EXT / PRESET / MANUAL |
| Electronic shutter speed | AUTO / MANUAL (1/30sec ~ 1/60,000sec) |
| SENS_UP | OFF / × 2 / × 3 / × 4 / × 5 / × 6 / × 7 / × 8 |
| DNR | OFF / LOW / MIDDLE / HIGH |
| BACKLIGHT | OFF / WDR / BLC / HLM |
| Day and Night | AUTO (Day <–> Night TIME Change), COLOR, Black and White, EXTERN |
| PRIVACY / FLIP / FREEZE | OFF / ON |
| MOTION / DEFOG | OFF / SET |
| D.ZOOM | 0 ~ 127 Level |
| Brightness | ADJUSTABLE (0 ~ 20 STEP) |
| Sharpness | ADJUSTABLE (0 ~ 10 STEP) |
| Smart IR | ADJUSTABLE (0 ~ 20 STEP) |
| COMM | RS-485 (PELCO-D) |
| Language | ENG, CHN, CHN(S), JPN, KOR |
| Temperature/Humidity | Operating 14 °F (-10 °C) ~ 122 °F (50 °C) / 30% ~ 80% RH) Storage -4 °F (-20 °C) ~ 140 °F (60 °C) / 20% ~ 90% RH) |
| Power | AC24V / DC12V Dual Power |
