TVI-2542V
Price range: $121.95 through $122.95

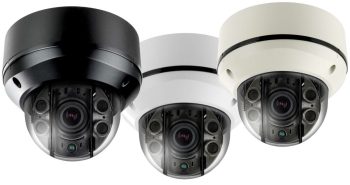

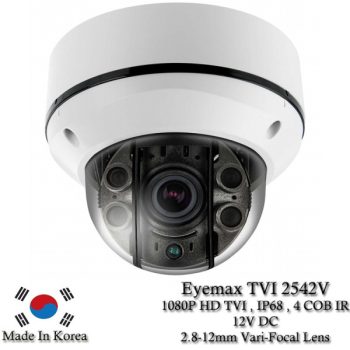

Eyemax TVI-2542V HD-TVI 1080p Storm IP-68 Water- and Vandal-Proof IR Dome Camera
- HD-TVI High Definition Transport Video Interface 1080p FULL HD Flawless Video
- 1/2.9” Sony CMOS
- 2.8~12 mm Auto-Iris VariFocal Lens
- 0 Lux at IR On (High-Power LED 4pcs)
- Upgraded Waterproof Housing (IP68 Rating)
- Smart IR / DNR (Digital Noise Reduction) / True Day & Night (ICR)
- RS-485 Option
- Easy Installation
- DC 12V
- Description
- Product Documents
- Spiciifications
- Additional information
- Collsam Brands
Description
The Eyemax TVI-2542V is an impressive 1080p HD-TVI vandal dome IR camera that offers exceptional performance and reliability. The 1080p Full-HD resolution of this device makes sure that images are clear and full of detail. This camera can send video without any issues thanks to its High-Definition Transport Video Interface. This makes Eyemax TVI-2542V ideal for use in professional security situations.
The “The Shield” technology in the Eyemax TVI-2542V is one of its best features. It stops video from looking washed out when infrared light bounces off things on the camera cover. Essentially, this implies that the camera can capture clear images despite obstructions, thereby ensuring the highest level of security. This feature makes it the go-to choice for areas with potential light interference.
Up to 100 feet (30.48 m) away, the Eyemax TVI-2542V’s four COB (Chip-on-Board) infrared LEDs improve night vision. As a result, the camera can record clear video even when it’s completely dark outside. This makes it a great choice for 24-hour security. The 2.8–12 mm varifocal lens has color and infrared modes for increased focus and closer or wider views.

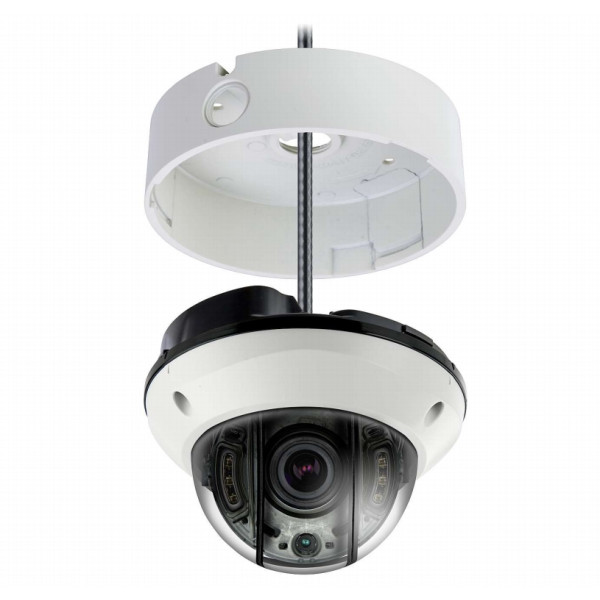

Eyemax TVI-2542V is designed to endure severe outdoor conditions due to its robust STORM case and IK10 vandal resistance rating. This rating ensures that the camera is protected against impacts and tampering, ensuring its longevity and reliability. In addition to being waterproof and dustproof, the camera is also IP68 rated, rendering it suitable for any outdoor environment.
With the Eyemax TVI-2542V, you can automatically remove the IR-cut filter (ICR) to view color video during the day and black and white video at night. Because of this feature, the camera can always take high-quality pictures.
Eyemax TVI-2542V also features Digital Noise Reduction (DNR) and Wide Dynamic Range (WDR) for improved image quality in challenging lighting conditions. Setting up the camera is straightforward, and it uses a 1/2.9” Sony CMOS sensor for optimum performance. It requires a 12V DC power supply and may also include an RS-485 option for communication and control.
| RESOLUTION | 1080P, 720P, 720P CROP |
| SENSOR | 1/2.9 inch SONY CMOS (IMX-222) |
| TOTAL PIXELS | 2000(H) x 1241(V) = 2,482,000 |
| EFFECTIVE PIXELS | 1944(H) X 1092(V) = 2,122,648 |
| SCANNING SYSTEM | PROGRESSIVE |
| S/N (Y SIGNAL) | More than 52 dB (AGC Off) |
| VIDEO OUTPUT | TVI / (CVBS: 1.0Vp-p (75 ohm : Option) |
| MIN.ILLUMINATION | 0 Lux at IR On |
| WHITE BALANCE | AUTO / AUTO EXT / PRESET / MANUAL |
| SHUTTER | AUTO / MANUAL (1/30 sec ~ 1/60,000 sec) |
| BRIGHTNESS | ADJUSTABLE (0 ~ 20 STEP) |
| SENS_UP | OFF / X2 / X3 / X4 / X5 / X6 / X7 / X8 |
| DNR | OFF / LOW / MIDDLE / HIGH |
| BACKLIGHT | OFF / WDR / BLC / HLM |
| ACE | OFF / LOW / MIDDLE / HIGH |
| DAY and NIGHT | AUTO (Day <–> Night TIME Change) , COLOR , B/W, EXTERN, MDIR (SEARCH Option) |
| PRIVACY | OFF / ON (16 Zone) |
| MOTION | OFF / SET |
| Digital ZOOM | 0 ~ 127 |
| FLIP | OFF / ON |
| FREEZE | OFF / ON |
| LANGUAGE | ENG, CHN, CHN(S), JPN, KOR |
| SHARPNESS | ADJUSTABLE (0 ~ 10 STEP) |
| DEFOG | OFF / SET |
| COMM | RS-485 (PELCO-D) |
| SMART IR (IR PRODUCT SPEC.) | ADJUSTABLE (0 ~ 20 STEP) |
| OPERATING TEMPERATURE / HUMIDITY | 14 °F (-10 °C) ~ 120 °F (48.89 °C) / 30%~80% RH |
| STORAGE TEMPERATURE / HUMIDITY | -4 °F (-20 °C) ~ 140 °F (60 °C) / 20%~90% RH |
| POWER | DC 12V |
| SIGNAL TRANSMISSION | The distant difference is occurred according to cable option and other circumstances. (coaxial cable 300M) |
Additional information
| Weight | 4 lbs |
|---|---|
| Dimensions | 9 × 9 × 9 in |
| Color | Black, Ivory, White |
