TVL-204V

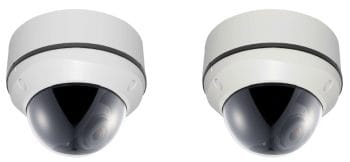

TVL-204V HD-TVI 1080P 2Megapixel Storm Outdoor Vandal Resistant IP68 Varifocal Camera

TVL-204V

In stock

Eyemax TVL-204V HD-TVI 1080P(2Mp) Storm With Auto Iris Varifocal Lens Dual Power
  • Eyemax Storm Series TVL-204-V 2MP HD-TVI Vandal DOME Camera 2.8-12mm Dual Power
  • 1/2.9 inch CMOS
  • Upgraded Weatherproof Housing (IP68 rating)
  • 1 Lux at F1.2 / 0.1 Lux (B/W)
  • Easy Installation
  • Digital WDR (Wide Dynamic Range)
  • DNR (Digital Noise Reduction)
  • Day & Night
  • Varifocal 2.8 ~ 12mm
  • 12VDC or 24VAC Dual Power
  • Ivory or White Color
  • Made in Korea
Eyemax Logo

This product is currently out of stock and unavailable.

Description

TVL-204V HD-TVI 1080P 2Megapixel Storm Outdoor Vandal Resistant IP68 Varifocal Camera

TVL-204V2MP 1080P HD-TVI Vandal-Proof IR Dome Camera: 2.8-12mm Lens, IP68 Storm, 25m Anti-Reflective Smart Infrared, WDR, HLM, RS485 OSD, 12v DC, 4-Axis, CVBS, Korea, 3yr

HD-TVI stands for High Definition Transport Video Interface. HD-TVI is a video signal processing and transport technology used to transmit video in HD security cameras and DVRs. HD-TVI is capable of transporting uncompressed high-definition video up to 500 meters with standard low cost 3C-2V coaxial cables using analog transmission techniques. RG59 Siamese coax cable is the most popular for security camera systems.

HD-TVI technology currently support the following video resolutions using the same coax cable techniques used by traditional analog CCTV cameras: 720p 1080p, 3 megapixels, 4 megapixels, 5 megapixels, and 4K (8 megapixel). This makes it easy for people with existing analog CCTV systems to upgrade to an HD system because most of the time they can leverage their existing cable infrastructure. RG59 coax cable is the most popular cable used for installations. 1080p resolution is the most popular resolution for TVI cameras at this time.

  • TVL-204V HD-TVI – High Definition Transport Video Interface 1080p FULL HD flawless video
  • U.S.PATENT : WO2010114190 and US7963707
  • STORM® series camera : IP-68 Water & Vandal-proof
  • Easy Twist and Lock Installation : No drilling through camera required (Drill hole guide included)
  • 3-Axis Construction : By adjusting ‘3-Axis’ control, you get a straight view regardless whether camera is installed on a wall or ceiling
  • 1/2.9” Sony CMOS image sensor
  • Resolution (1080p, 720p, 720p Crop)
  • 2.8~12mm Varifocal MegaPixel Lens
  • High Resolution and OSD Controlled
  • Digital WDR (Wide Dynamic Range)
  • True Day & Night (ICR)
  • DNR (Digital Noise Reduction), Easy Installation
  • Dual Video Output
  • DC 12V or AC 24V Power Input

Additional information

Weight3 lbs
Dimensions6 × 6 × 8 in
Color

Ivory, White

Brand

Eyemax
