TIR-2664V

Eyemax TIR-2664V HD TVI camera. Featuring 1080p resolution, IP68 rating, 6 COB IR LEDs, and more for ultimate protection.

TIR-2664V

In stock

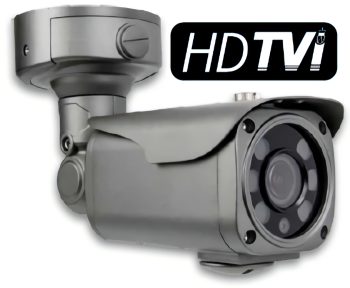

Eyemax TIR-2664V HD-TVI 1080p HD Bullet Camera with 6 High-Power IR with Dual Power

  • HD-TVI : High Definition Transport Video Interface
  • 1080p FULL HD Flawless Video
  • 1/2.9” Sony CMOS
  • 2.8~12mm Auto-Iris Varifocal Lens
  • 0 Lux at IR On (High-Power LED 6pcs)
  • Upgraded Waterproof Housing (IP68 Rating)
  • Auto Removable IR-Cut Filter (ICR) : True Day and Night
  • Deep color and clear video at both day and nighttime

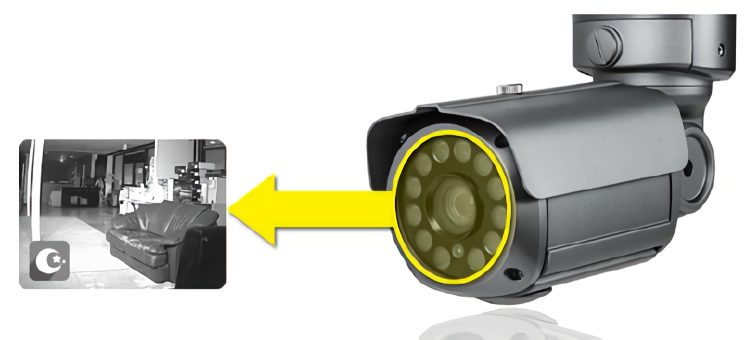

  • Smart IR
  • DNR (Digital Noise Reduction)
  • RS-485 Option

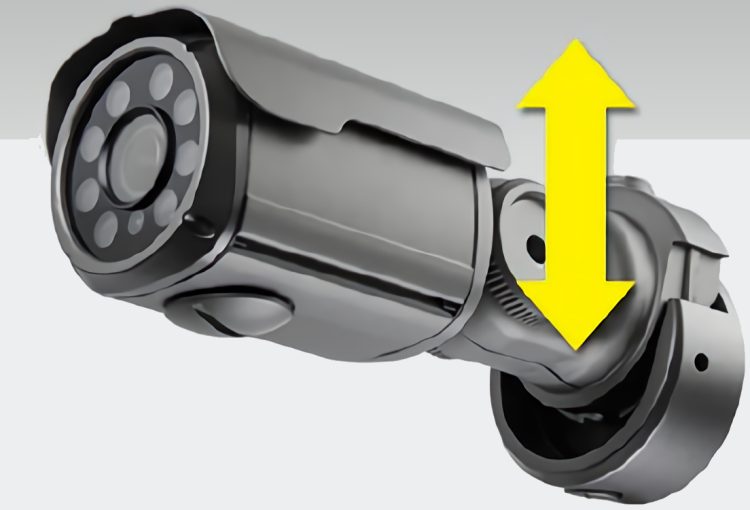

  • Easy Installation
  • DC 12V / AC 24V Dual Power
Eyemax security cameras and video surveillance products at Collsam SecurityNDAA-compliant security products at Collsam Security

This product is no longer available.

Description

The Eyemax TIR-2664V HD TVI Bullet Camera is a good outdoor camera that records clear video in any weather. This IP68 camera is built to withstand harsh outdoor environments. This camera has a powerful infrared illumination that makes it easy to see even in low light conditions.

Featuring a 1/2.9” Sony CMOS sensor, the TIR-2664V captures high-resolution 1080p (2MP) video footage with exceptional clarity and detail. This advanced sensor can automatically switch between color and black and white images depending on the lighting conditions. This ensures that you get the best possible image quality at all times.

The varifocal lens on this camera allows for versatile and flexible surveillance options. You can adjust the focal length and focus on specific spots with the 2.8-12 mm Auto-Iris lens. When you need to watch a lot or want to get a better look at something, this feature is practical.

The TIR-2664V has advanced features that help eliminate unwanted noise and deliver a sharper picture even under challenging lighting conditions. In low-light conditions, the camera can adjust the sensitivity of the image sensor to capture clearer pictures with less noise. This ensures that you get a sharp and detailed image even in the dark.

Dual power options make it possible to power the TIR-2664V with either a 12V DC power supply or Power-over-Ethernet (PoE) With its compact and sleek design, this camera can be easily mounted and blends seamlessly into any environment. Whether you are looking to monitor your home or business, the Eyemax TIR-2664V HD TVI Bullet Camera is a reliable and versatile choice for all your outdoor surveillance needs.

Resolution1080p, 720p, 720p CROP
Sensor1/2.9 inch Sony CMOS
Total Pixels2000(H) × 1241(V) = 2,482,000
Effective Pixels1944(H) × 1092(V) = 2,122,648
Scanning SystemProgressive
S/N (Y Signal)More than 52 dB (AGC Off)
Video OutputTVI / CVBS : CVBS: 1.0Vp-p (75ohm)
Min. Illumination0 Lux at IR On
White BalanceAuto / Auto Ext / Preset / Manual
ShutterAuto / Manual (1/30sec ~ 1/60,000sec)
BrightnessAdjustable (0 ~ 20 Step)
Sens UpOFF / × 2 / × 3 / × 4 / × 5 / × 6 / × 7 / × 8
DNROFF / Low / Middle / High
BacklightOFF / WDR / BLC / HLM
ACEOFF / Low / Middle / High
Day & NightAuto (Day ≤≥ Night Time Change), Color, B/W, EXTERN, MDIR (Search Option)
PrivacyOFF / ON (16 Zone)
MotionOFF / SET
Digital Zoom0 ~ 127
FlipOFF / ON
FreezeOFF / ON
LanguageEnglish, Chinese, Chinese(S), Japanese, Korean
SharpnessAdjustable (0 ~ 10 Step)
DefogOFF / SET
Communication PortRS-485 (Pelco-D)
Smart IRAdjustable (0 ~ 20 Step)
Operating Temp / Humidity14 °F (-10 °C) ~ 122 °F (50 °C) / 30% ~ 80% RH
Storage Temp / Humidity 4 °F (-15.56 °C) ~ 140 °F (60 °C) / 20% ~ 90% RH
PowerDC 12V / AC 24V Dual Power
Signal TransmissionThe distant difference is occurred according to cable option and other circumstances. (Coaxial Cable 300M)

Additional information

Weight5 lbs

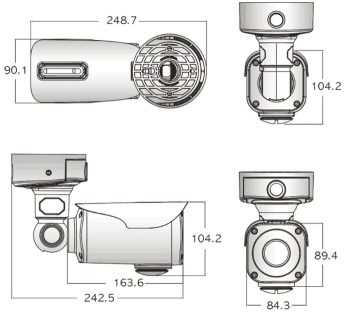

Dimensions18 × 6 × 6 in
