TPB-204

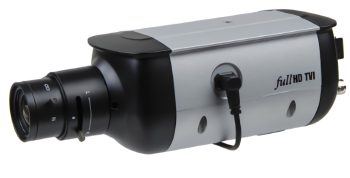

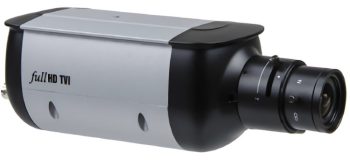

Eyemax TPB-204 HD-TVI Box Camera 1080p 2 Megapixel Resolution Lens not included
- Dual Power Input
- Crop 1 LUX at F1-2 and 0.1 LUX Black and White
- True Day and Night Operation
- Color Mode (Optimum Colors) and Black and White Mode (Definition of Image)
- DNR (Digital Noise Reduction): Less Low Illuminance Noise, Improved S/N Ratio, Sharp Image Display.
- Digital WDR (Wide Dynamic Range)
- Privacy Function, Exposure, White Balance, Image, Motion Serial
- OSD Menu
- 1/2.9” SONY CMOS
- HD-TVI (1080p, 720p)
- Easy Installation
- Easy Installation
- Description
- Product Documents
- Speciifications
- Additional information
- Collsam Brands
- Reviews (0)
Description
The Eyemax TPB-204 HD-TVI Box Camera is a high-definition security solution designed to provide superior picture quality and powerful features. With two power inputs and a number of advanced imaging technologies, this HD-TVI 1080p 2 Megapixel camera is great for a security system.
The Eyemax TPB-204 HD-TVI Box Camera features true day and night color mode operation with its 1 LUX at F1-2 and 0.1 LUX black and white capability. This enables the camera to provide optimized color clarity and definition during the daytime conditions and enhanced contrast and clarity during nighttime conditions.
To further enhance the picture quality, the camera also features DNR (Digital Noise Reduction) technology. The DNR chip reduces the amount of low illuminance noise and improves the S/N ratio and horizontal resolution, resulting in a clear and sharp image in even the darkest of environments.
Additionally, this camera also features digital WDR (Wide Dynamic Range), privacy function, exposure, white balance, image, motion serial, and OSD menu enhancements for versatile operation.

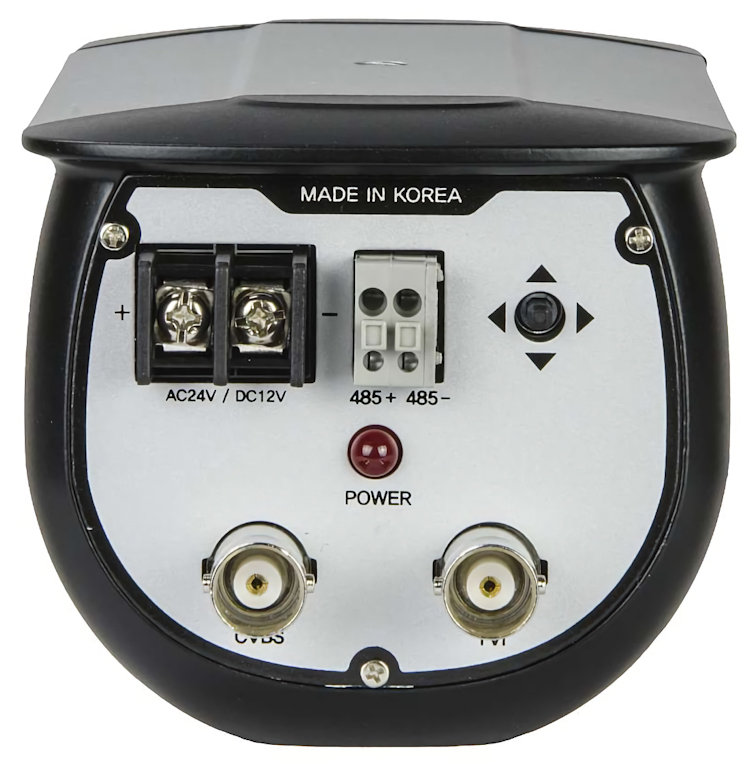

The camera also comes equipped with a powerful 1/2.9-inch SONY CMOS sensor and supports HD-TVI (1080p, 720p) video signal. This helps to provide an enhanced level of detail when compared to standard analog cameras. Moreover, the camera is easy to install and includes power, audio, and video connectors to make wiring set up a breeze.
The Eyemax TPB-204 HD-TVI Box Camera is a powerful and reliable security solution that is sure to deliver superior picture quality and versatile features. Whether it’s for home or business use, this HD-TVI 1080p(2MP) camera is the perfect choice for taking surveillance to the next level.
| Resolution | 1440P, 1080P, 720P |
| Sensor | 1/2.9” SONY CMOS (IMX-326) |
| Total Pixels | 3096(H) × 2218(V) = 6.87M |
| Scanning System | PROGRESSIVE |
| S/N (Y signal) | More than 52 dB (AGC Off) |
| Video Output | TVI, CVBS: 1.0Vp-p (75ohm) |
| Min.Illumination | 1 Lux at F1.2 / 0.1 Lux (B/W) |
| White Balance | AUTO / AUTO EXT / PRESET / MANUAL |
| Electronic shutter speed | AUTO / MANUAL (1/30sec ~ 1/30,000sec) / FLICKER |
| Brightness | ADJUSTABLE (0 ~ 20 STEP) |
| DNR | OFF / LOW / MIDDLE / HIGH |
| BACKLIGHT | OFF / WDR / BLC / HLC |
| Day & Night | AUTO (Day <–> Night TIME Change) , COLOR , B/W, EXTERN |
| PRIVACY / MOTION | OFF / ON |
| Language | ENG, CHN, CHN(S), JPN, KOR |
| Sharpness | ADJUSTABLE (0 ~ 10 STEP) |
| COMM. | RS-485(PELCO-D) |
| Temperature/Humidity | Operating, 14 °F (-10 °C) ~ 122 °F (50 °C) / 30% ~ 80% RH) Storage, -4 °F (-20 °C) ~ 140 °F (60 °C) / 20% ~ 90% RH) |
| Power | AC24V / DC12V Dual Power |
Additional information
| Weight | 4 lbs |
|---|---|

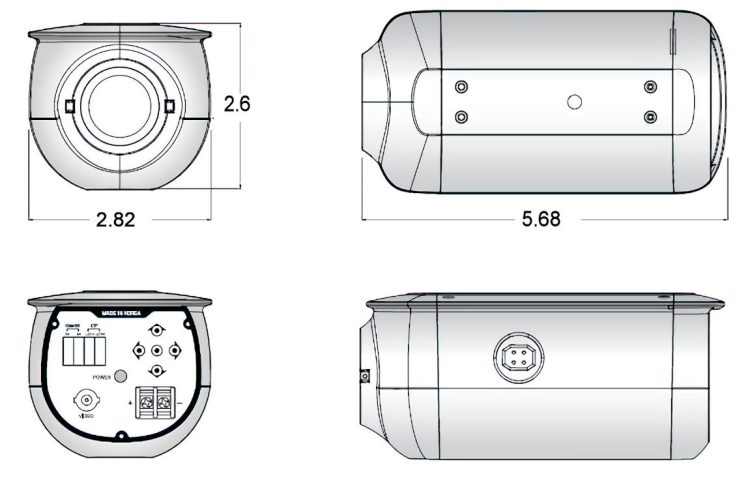

| Dimensions | 8 × 4 × 4 in |
