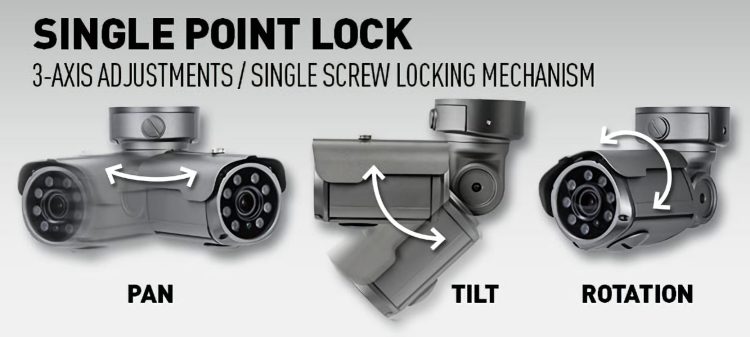

Capture crystal clear footage with the Eyemax UIR-2342V-B X-SDI 1080p IR Bullet Camera. Featuring 8 COB IR LEDs and a 2.8~12mm lens, this camera offers superior night vision and IP68 protection. Made in Korea and compatible with Balun, it's a top choice for security Single Point Lock

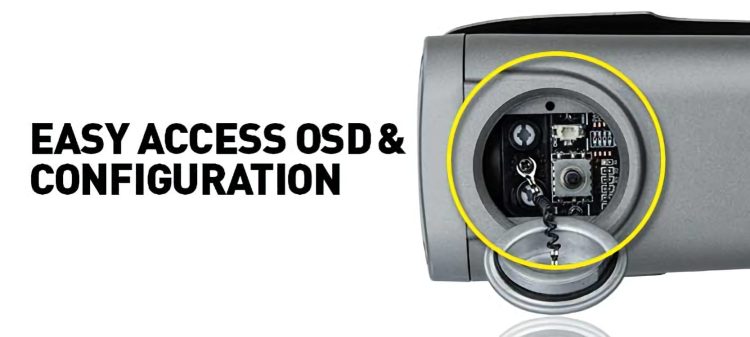

Capture crystal clear footage with the Eyemax UIR-2342V-B X-SDI 1080p IR Bullet Camera. Featuring 8 COB IR LEDs and a 2.8~12mm lens, this camera offers superior night vision and IP68 protection. Made in Korea and compatible with Balun, it's a top choice for security OSD Access

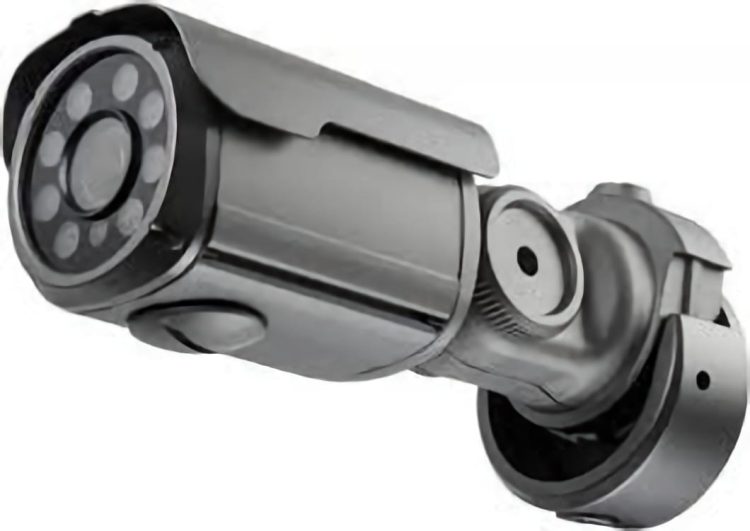

Capture crystal clear footage with the Eyemax UIR-2342V-B X-SDI 1080p IR Bullet Camera. Featuring 8 COB IR LEDs and a 2.8~12mm lens, this camera offers superior night vision and IP68 protection. Made in Korea and compatible with Balun, it's a top choice for security Straight View

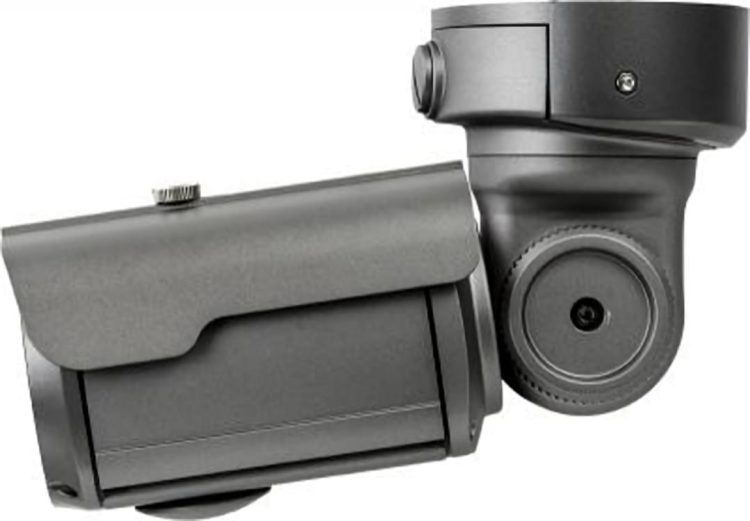

Capture crystal clear footage with the Eyemax UIR-2342V-B X-SDI 1080p IR Bullet Camera. Featuring 8 COB IR LEDs and a 2.8~12mm lens, this camera offers superior night vision and IP68 protection. Made in Korea and compatible with Balun, it's a top choice for security Side View

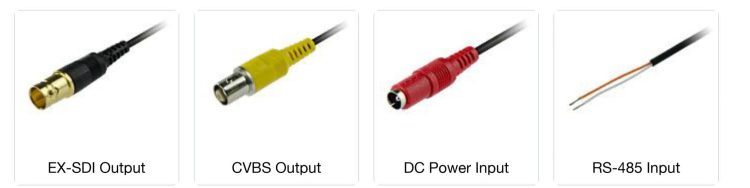

Capture crystal clear footage with the Eyemax UIR-2342V-B X-SDI 1080p IR Bullet Camera. Featuring 8 COB IR LEDs and a 2.8~12mm lens, this camera offers superior night vision and IP68 protection. Made in Korea and compatible with Balun, it's a top choice for security Connectors

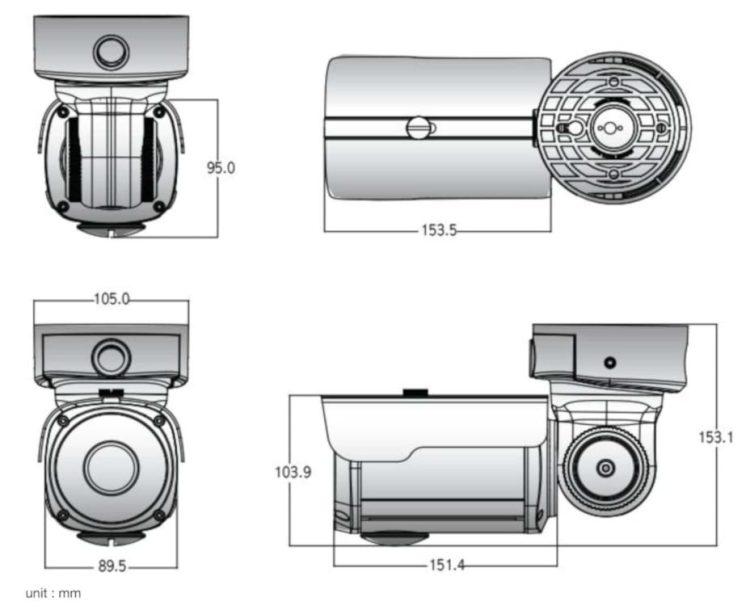

Capture crystal clear footage with the Eyemax UIR-2342V-B X-SDI 1080p IR Bullet Camera. Featuring 8 COB IR LEDs and a 2.8~12mm lens, this camera offers superior night vision and IP68 protection. Made in Korea and compatible with Balun, it's a top choice for security dimensions.
Disconnected Product
Capture crystal clear footage with the Eyemax UIR-2342V-B X-SDI 1080p IR Bullet Camera. Featuring 8 COB IR LEDs and a 2.8~12mm lens, this camera offers superior night vision and IP68 protection. Made in Korea and compatible with Balun, it's a top choice for security.
Capture crystal clear footage with the Eyemax UIR-2342V-B X-SDI 1080p IR Bullet Camera. Featuring 8 COB IR LEDs and a 2.8~12mm lens, this camera offers superior night vision and IP68 protection. Made in Korea and compatible with Balun, it's a top choice for security COB IR
Capture crystal clear footage with the Eyemax UIR-2342V-B X-SDI 1080p IR Bullet Camera. Featuring 8 COB IR LEDs and a 2.8~12mm lens, this camera offers superior night vision and IP68 protection. Made in Korea and compatible with Balun, it's a top choice for security Easy Installation
Capture crystal clear footage with the Eyemax UIR-2342V-B X-SDI 1080p IR Bullet Camera. Featuring 8 COB IR LEDs and a 2.8~12mm lens, this camera offers superior night vision and IP68 protection. Made in Korea and compatible with Balun, it's a top choice for security Single Point Lock
Capture crystal clear footage with the Eyemax UIR-2342V-B X-SDI 1080p IR Bullet Camera. Featuring 8 COB IR LEDs and a 2.8~12mm lens, this camera offers superior night vision and IP68 protection. Made in Korea and compatible with Balun, it's a top choice for security OSD Access
Capture crystal clear footage with the Eyemax UIR-2342V-B X-SDI 1080p IR Bullet Camera. Featuring 8 COB IR LEDs and a 2.8~12mm lens, this camera offers superior night vision and IP68 protection. Made in Korea and compatible with Balun, it's a top choice for security Straight View
Capture crystal clear footage with the Eyemax UIR-2342V-B X-SDI 1080p IR Bullet Camera. Featuring 8 COB IR LEDs and a 2.8~12mm lens, this camera offers superior night vision and IP68 protection. Made in Korea and compatible with Balun, it's a top choice for security Side View
Capture crystal clear footage with the Eyemax UIR-2342V-B X-SDI 1080p IR Bullet Camera. Featuring 8 COB IR LEDs and a 2.8~12mm lens, this camera offers superior night vision and IP68 protection. Made in Korea and compatible with Balun, it's a top choice for security Connectors
Capture crystal clear footage with the Eyemax UIR-2342V-B X-SDI 1080p IR Bullet Camera. Featuring 8 COB IR LEDs and a 2.8~12mm lens, this camera offers superior night vision and IP68 protection. Made in Korea and compatible with Balun, it's a top choice for security dimensions.

UIR-2342V-B

Capture crystal clear footage with the Eyemax UIR-2342V-B X-SDI 1080p IR Bullet Camera. Featuring 8 COB IR LEDs and a 2.8~12mm lens, this camera offers superior night vision and IP68 protection. Made in Korea and compatible with Balun, it's a top choice for security.

UIR-2342V-B

In stock
0 out of 5
( There are no reviews yet. )

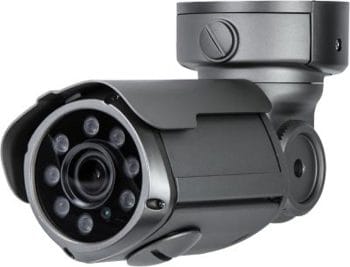

UIR-2342V-B EX-SDI 1080p 2 Megapixels IR Bullet Camera With 8 COB IR And 2.8~12 mm Lens

  • 2.8 ~ 12 mm Auto-Iris Varifocal Lens
  • 1/2.9” Sony CMOS

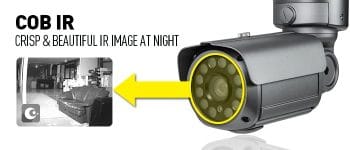

  • 0 Lux at IR On (8 pcs of COB IR LED)
  • Upgraded Waterproof Housing (IP68 Rating)
  • Smart IR / DNR (Digital Noise Reduction)
  • True Day and Night (ICR)
  • RS-485 Option

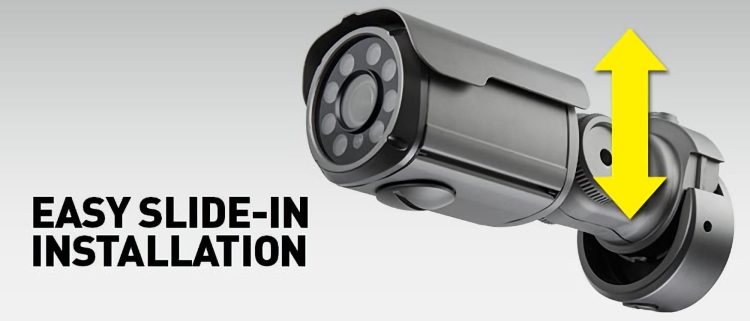

  • Easy Installation
  • DC 12V
Eyemax Logo
Recommended Replacement
The UIR-0712V is a 1080p IR bullet camera with EX/HD-SDI. It has a 1/2.7 inch mega pixel sensor, a 2.8-12mm mega pixel lens.
UIR-0712V
$85.95
Eyemax Logo SKU: UIR-2342V-B Categories: , Tags: , , , , , , , ,
This product has been discontinued

Description

Introducing the Eyemax UIR-2342V-B X-SDI Bullet Camera, the ultimate surveillance solution for your security needs. This high-definition camera boasts a 2MP image sensor and 1080p resolution, delivering crystal-clear footage with exceptional detail and clarity. This camera can perform well even in low-light conditions, giving you round-the-clock protection.

The Eyemax UIR-2342V-B X-SDI Bullet Camera is excellent and has advanced technology. It can be used both inside and outside. With its IP68 ingress protection, this camera is completely waterproof, dustproof, and built to withstand harsh weather conditions. This camera will still work well if it rains, snows, or the weather is freezing.

The Eyemax UIR-2342V-B X-SDI Bullet Camera has a Sony CMOS sensor that captures every detail. The 2.812mm auto-iris varifocal lens allows you to completely customize your viewing angle, delivering the maximum coverage of your choice. The True Day and Night (ICR) feature automatically switches to night vision mode when it gets dark. This keeps your footage clear and sharp at all times.

In addition to its impressive hardware, the Eyemax UIR-2342V-B X-SDI Bullet Camera also boasts a range of advanced features that make it a top choice for security professionals.

The Digital Noise Reduction (DNR) feature eliminates any interference or noise from the video, resulting in a cleaner and more defined image.

The Auto White Balance (AWB) ensures that the colors in your footage remain accurate and true to life, providing you with footage that is both reliable and easy to interpret.

Proudly made in Korea, the Eyemax UIR-2342V-B X-SDI Bullet Camera is the perfect combination of durability, performance, and state-of-the-art technology.

With its compatibility with EX-SDI or HD-SDI and Balun, this camera can easily integrate into your existing security system.

It also operates on a 12V DC power supply, making it energy-efficient and cost-effective.

This camera also complies with the NDAA (National Defense Authorization Act), making it a trusted and reliable choice for both residential and commercial use.

Trust Eyemax to provide you with the highest quality and most advanced security solutions available.

Datasheet

Download

Capture crystal clear footage with the Eyemax UIR-2342V-B X-SDI 1080p IR Bullet Camera. Featuring 8 COB IR LEDs and a 2.8~12mm lens, this camera offers superior night vision and IP68 protection. Made in Korea and compatible with Balun, it's a top choice for security Datasheet.

Resolution1080p, 720p, 720p CROP
Sensor1/2.9 inch SONY CMOS (IMX-222 / IM × 322)
Total Pixels2000(H) × 1241(V) = 2,482,000
Effective Pixels1944(H) × 1092(V) = 2,122,648
Scanning SystemProgressive
S/N (Y Signal)More than 52 dB (AGC Off)
Video OutputSMPTE274M (HD-SDI) / CVBS: 1.0Vp-p (75ohm)
Min. IlluminationIR Product: 0 Lux at IR On
White BalanceAuto / Auto Ext / Preset / Manual
ShutterAuto / Manual (1/30sec ~ 1/60,000sec)
BrightnessAdjustable (0 ~ 20 Step)
Sens UpOFF / × 2 / × 4 / × 8 / × 16 / × 32
DNROFF / Low / Middle / High
BacklightOFF / WDR / BLC / HLM
ACEOFF / Low / Middle / High
Day & NightAuto (Day <–> Night Time Change), Color, Black and White, EXTERN
PrivacyOFF / ON
MotionOFF / SET
Digital Zoom×1 ~ × 16
FlipOFF / ON
FreezeOFF / ON
LanguageEnglish, Chinese, Chinese(S), Japanese, Korean
SharpnessAdjustable (0 ~ 10 Step)
DefogOFF / SET
Communication PortRS-485 (Pelco-D)
Smart IRAdjustable (0 ~ 20 Step)
Operating Temp / Humidity14 °F (-10 °C) ~ 122 °F (50 °C) / 30% ~ 80% RH
Storage Temp / Humidity-4 °F (-20 °C) ~ 140 °F (60 °C) / 20% ~ 90% RH
Power12V DC
Signal TransmissionThe distant difference is occurred according to cable option and other circumstances. (based on 5C-HFBT : HD-SDI (200M) / EX-SDI (400M))

Additional information

Weight4 lbs
Dimensions18 × 8 × 8 in
